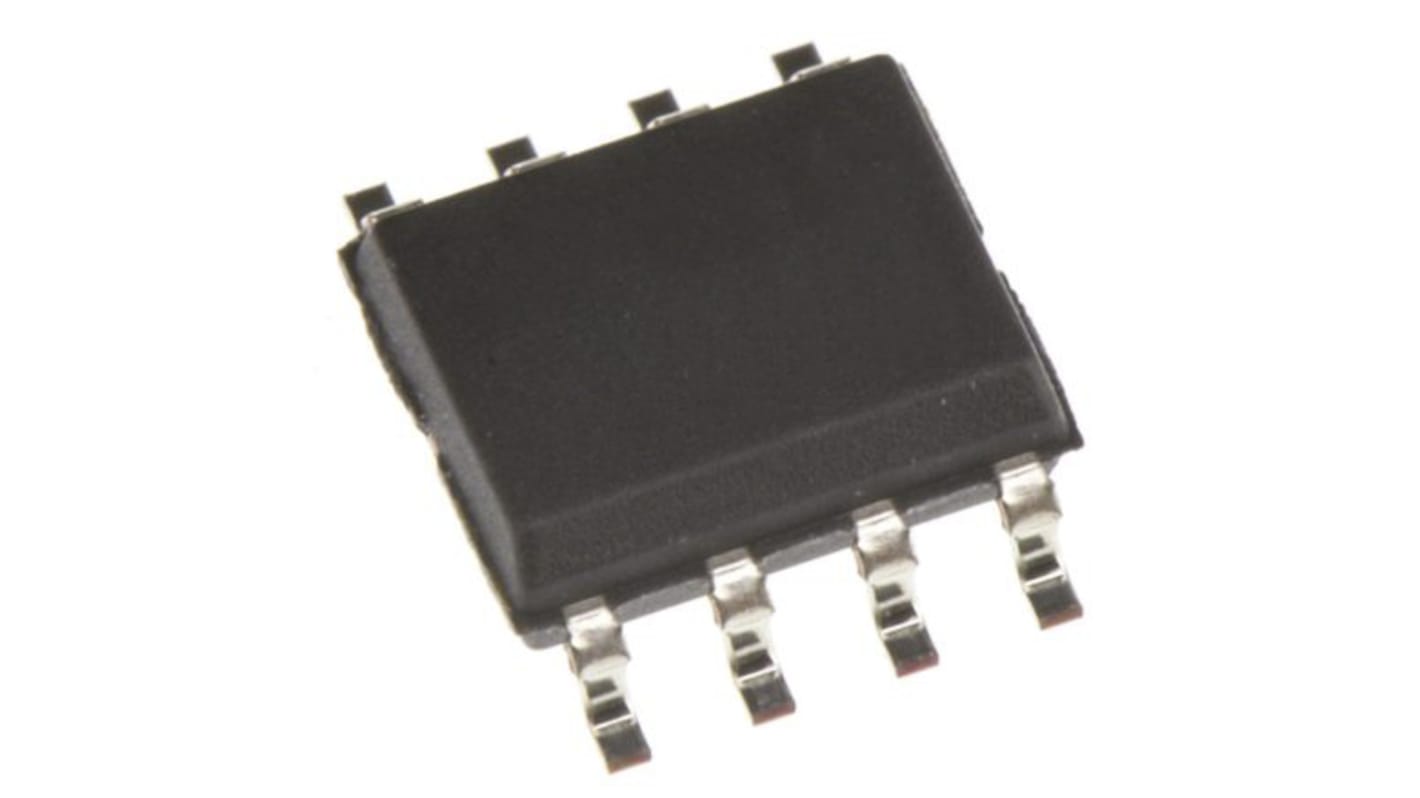

onsemi Peripheral Controller 8-Pin SOIC

RS 제품 번호:: 186-9129
제조사 부품 번호:: NCV8461DR2G
제조업체:: onsemi

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 reel of 2500 units)*

₩3,520,300.00

일시적 품절

2026년 6월 26일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	릴당*
2500 - 10000	₩1,408.12	₩3,518,420.00
12500 +	₩1,379.92	₩3,447,920.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 186-9129
제조사 부품 번호:: NCV8461DR2G
제조업체:: onsemi

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	onsemi
	Product Type	Peripheral Controller
	Mount Type	Surface
	Package Type	SOIC
	Pin Count	8
	Minimum Supply Voltage	5V
	Maximum Supply Voltage	34V
	Number of I/Os	3
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	150°C
	Series	NCV8461
	Length	5mm
	Height	1.5mm
	Width	4 mm
	Standards/Approvals	No
	Automotive Standard	AEC-Q100

	모두 선택
	브랜드 onsemi
	Product Type Peripheral Controller
	Mount Type Surface
	Package Type SOIC
	Pin Count 8
	Minimum Supply Voltage 5V
	Maximum Supply Voltage 34V
	Number of I/Os 3
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 150°C
	Series NCV8461
	Length 5mm
	Height 1.5mm
	Width 4 mm
	Standards/Approvals No
	Automotive Standard AEC-Q100

Datasheet NCV8461DR2G

The NCV8461 is a fully protected High-Side driver that can be used to switch a wide variety of loads, such as bulbs, solenoids and other activators. The device is internally protected from an overload condition by an active current limit and thermal shutdown. A diagnostic output reports OFF state open load conditions as well as thermal shutdown.

Short Circuit Protection

Thermal Shutdown with Automatic Restart

CMOS (3 V/5 V) Compatible Control Input

Off State Open Load Detection

Overvoltage Protection

Undervoltage Shutdown

Loss of Ground and Loss of VD Protection

ESD Protection

Reverse Battery Protection (with external resistor)

Very Low Standby Current

End Products

Automobiles

Applications

Switch a Variety of Resistive, Inductive and Capacitive Loads

Can Replace Electromechanical Relays and Discrete Circuits

onsemi Peripheral Controller 8-Pin SOIC
