CAMDENBOSS CTBA Series PCB Header, 24-Contact, 5 mm Pitch, Dual, 1 Row Screw
- RS 제품 번호:
- 280-5444
- Distrelec 제품 번호:
- 148-39-957
- 제조사 부품 번호:
- CTBA1301/PS24
- 제조업체:
- CAMDENBOSS
Subtotal (1 unit)*
₩1,917.60
재고있음
- 931 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,917.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 280-5444
- Distrelec 제품 번호:
- 148-39-957
- 제조사 부품 번호:
- CTBA1301/PS24
- 제조업체:
- CAMDENBOSS
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | CAMDENBOSS | |
| Product Type | PCB Header | |
| Number of Contacts | 24 | |
| Pitch | 5mm | |
| Current | 18A | |
| Number of Rows | 1 | |
| Housing Material | Polybutylene Terephthalate, Polyamide 66 | |
| Mount Type | Dual | |
| Connector Gender | Male | |
| Orientation | Vertical | |
| Colour | Black | |
| Termination Type | Screw | |
| Voltage | 300 V | |
| Length | 60mm | |
| Standards/Approvals | UL, IEC | |
| Series | CTBA | |
| 모두 선택 | ||
|---|---|---|
브랜드 CAMDENBOSS | ||
Product Type PCB Header | ||
Number of Contacts 24 | ||
Pitch 5mm | ||
Current 18A | ||
Number of Rows 1 | ||
Housing Material Polybutylene Terephthalate, Polyamide 66 | ||
Mount Type Dual | ||
Connector Gender Male | ||
Orientation Vertical | ||
Colour Black | ||
Termination Type Screw | ||
Voltage 300 V | ||
Length 60mm | ||
Standards/Approvals UL, IEC | ||
Series CTBA | ||
- COO (Country of Origin):
- CN

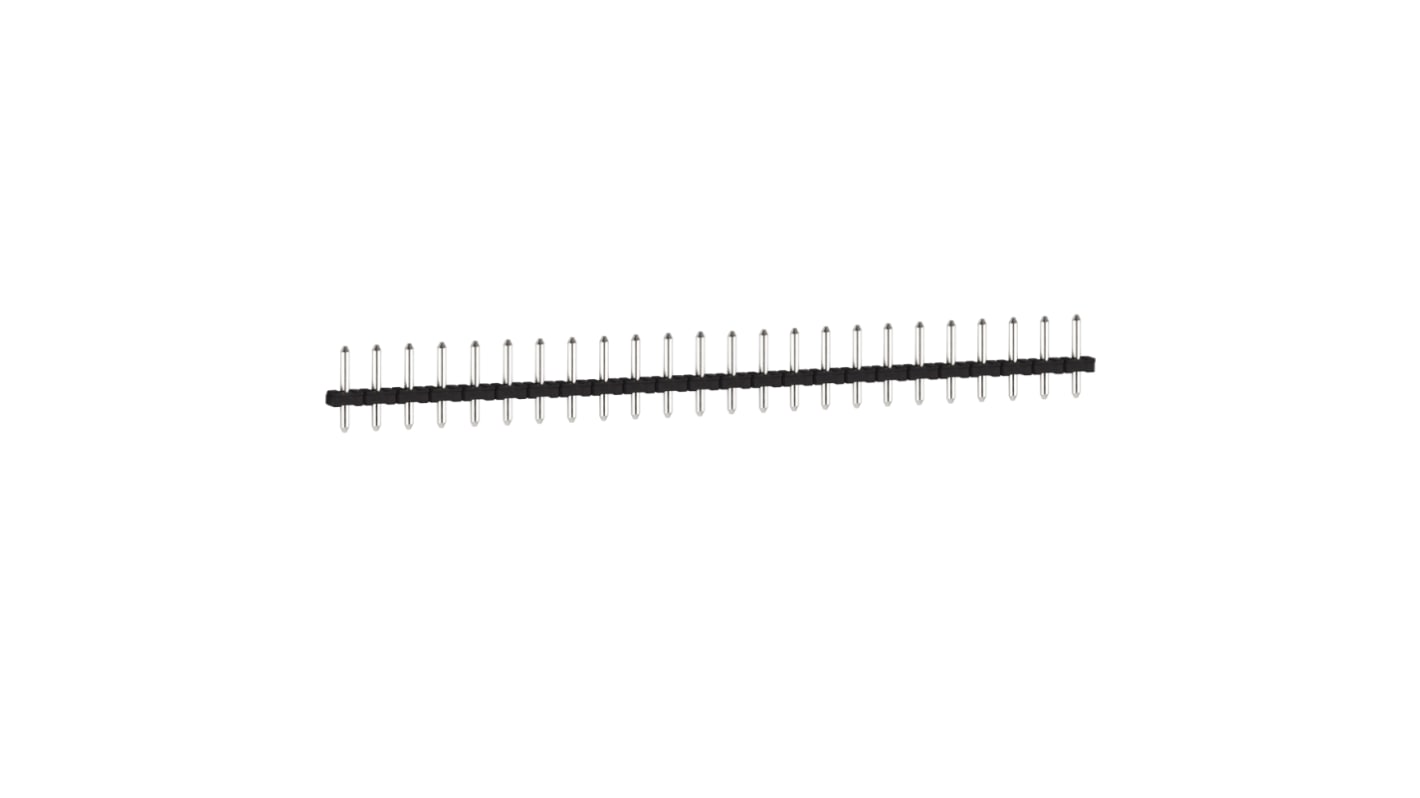

The CAMDENBOSS 5 mm Pin Strip Header supplied in 24 way or pre cut to size. This pin strip header moulded in UL94-V0 flame retardant PBT.
Anti solder wicking
Easily cut to required length
