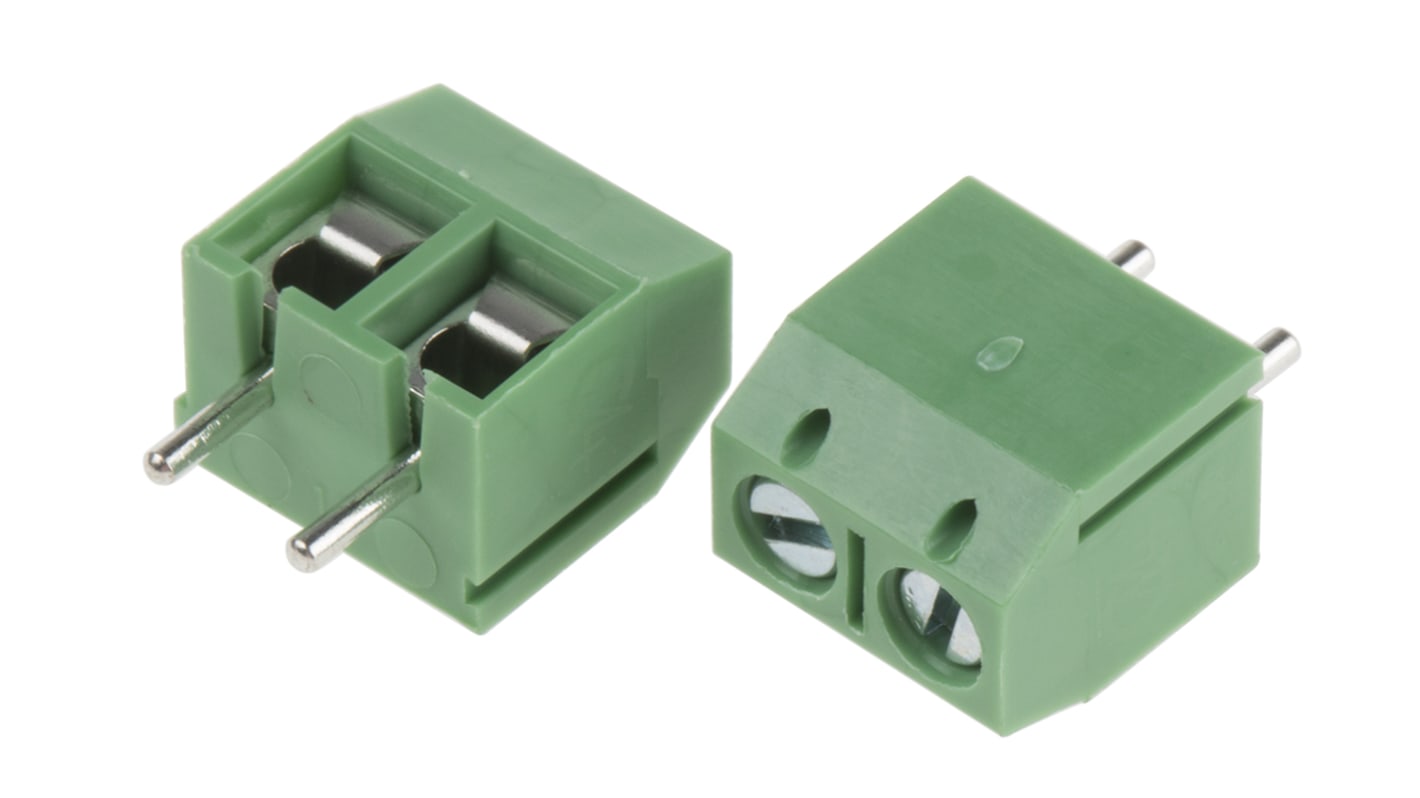

RS PRO PCB Terminal Block, 2-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Screw Termination
- RS 제품 번호:
- 144-4330
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 pack of 10 units)*
₩3,102.00
재고있음
- 800 개 단위 배송 준비 완료
- 추가로 2025년 12월 31일 부터 1,000 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 10 - 240 | ₩310.20 | ₩3,102.00 |
| 250 - 1240 | ₩302.68 | ₩3,026.80 |
| 1250 + | ₩250.04 | ₩2,500.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 144-4330
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Number of Contacts | 2 | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Mounting Type | Through Hole | |
| Gender | Male | |
| Termination Method | Screw | |
| Type | Screw Terminal Block | |
| Current Rating | 16A | |
| Body Orientation | Straight | |
| Colour | Green | |
| Voltage Rating | 250 V | |
| Width | 7.5mm | |
| Depth | 10mm | |
| Material | Nylon 66 | |
| Length | 10mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Number of Contacts 2 | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Mounting Type Through Hole | ||
Gender Male | ||
Termination Method Screw | ||
Type Screw Terminal Block | ||
Current Rating 16A | ||
Body Orientation Straight | ||
Colour Green | ||
Voltage Rating 250 V | ||
Width 7.5mm | ||
Depth 10mm | ||
Material Nylon 66 | ||
Length 10mm | ||
2 & 3 pole interlocking
Test probe facility
Moulded in grey UL94-V0 flame retardant PA66
1.5mm2 (22-14AWG)
Wire protector terminals
Guided pin alignment
Anti solder wicking terminal
UL & VDE approved
Test probe facility
Moulded in grey UL94-V0 flame retardant PA66
1.5mm2 (22-14AWG)
Wire protector terminals
Guided pin alignment
Anti solder wicking terminal
UL & VDE approved
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
