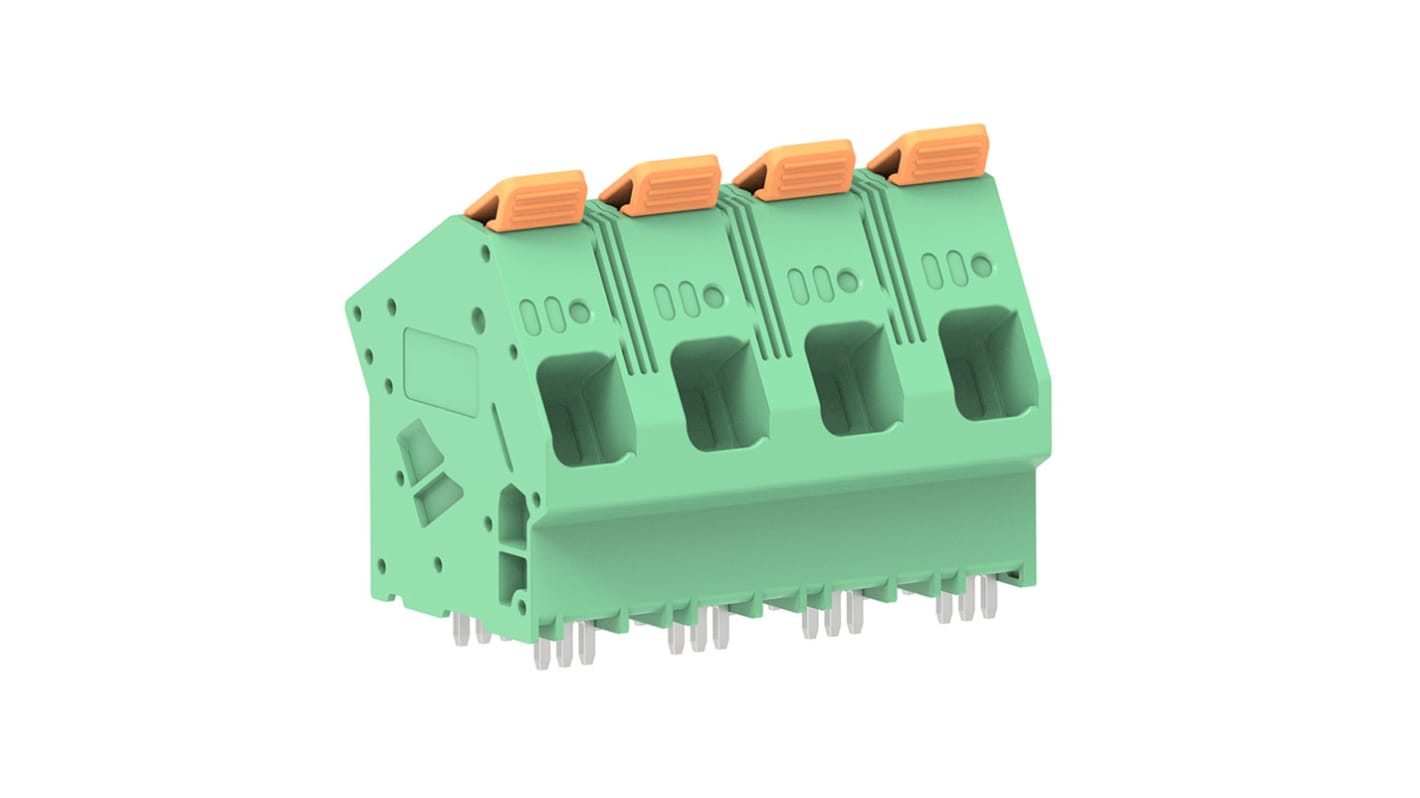

Molex 224933 Series PCB Terminal Block, 4-Contact, 15 mm Pitch, PCB, 1 Row
- RS 제품 번호:
- 536-627
- 제조사 부품 번호:
- 2249330004
- 제조업체:
- Molex
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩18,232.50
재고있음
- 360 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩18,232.50 |
| 10 + | ₩16,789.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 536-627
- 제조사 부품 번호:
- 2249330004
- 제조업체:
- Molex
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Molex | |
| Number of Contacts | 4 | |
| Product Type | PCB Terminal Block | |
| Pitch | 15mm | |
| Number of Rows | 1 | |
| Current | 72A | |
| Mount Type | PCB | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 1.24mm² | |
| Maximum Wire Size mm² | 5.89mm² | |
| Minimum Wire Size AWG | 18AWG | |
| Maximum Wire Size AWG | 4AWG | |
| Orientation | Vertical | |
| Colour | Green | |
| Voltage | 30V | |
| Series | 224933 | |
| Standards/Approvals | Low-Halogen, EU RoHS, REACH SVHC | |
| 모두 선택 | ||
|---|---|---|
브랜드 Molex | ||
Number of Contacts 4 | ||
Product Type PCB Terminal Block | ||
Pitch 15mm | ||
Number of Rows 1 | ||
Current 72A | ||
Mount Type PCB | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 1.24mm² | ||
Maximum Wire Size mm² 5.89mm² | ||
Minimum Wire Size AWG 18AWG | ||
Maximum Wire Size AWG 4AWG | ||
Orientation Vertical | ||
Colour Green | ||
Voltage 30V | ||
Series 224933 | ||
Standards/Approvals Low-Halogen, EU RoHS, REACH SVHC | ||
- COO (Country of Origin):
- CN
The Molex Pitch Lever Activated Fixed Mount PCB Terminal Block features a 35° wire entry design, suitable for wire-to-board applications. The terminal block is constructed with copper alloy metal components and is tin-plated on both mating and termination areas for reliable conductivity. It operates within a temperature range of -40°C to +115°C, making it suitable for various industrial environments.
Eu RoHS compliant
Low halogen
IEC-62474 compliant
Made of polyamide
