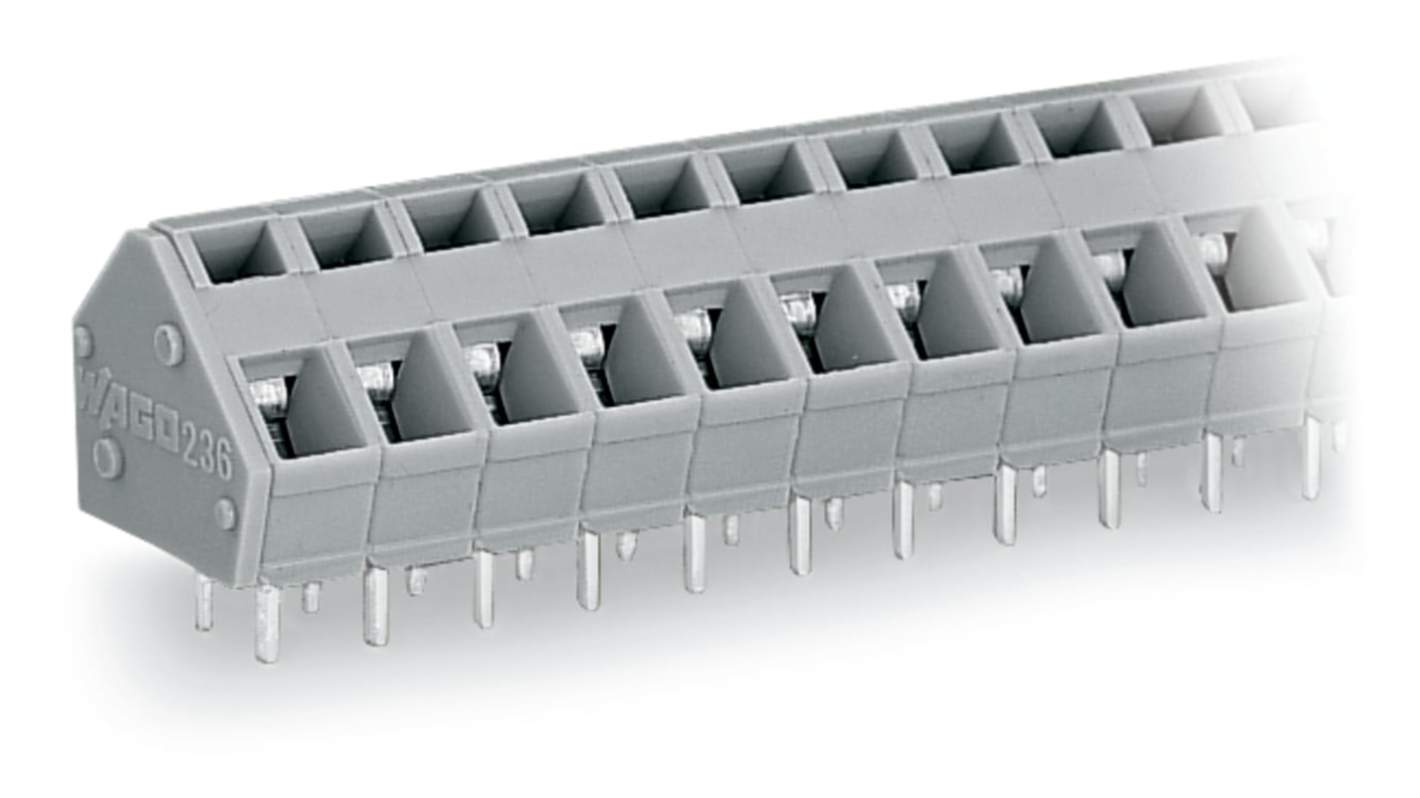

WAGO 236 Series PCB Terminal Block, 14-Contact, 5.08 mm Pitch, Through Hole, 1 Row
- RS 제품 번호:
- 225-346
- 제조사 부품 번호:
- 236-114
- 제조업체:
- WAGO
Subtotal (1 Box of 15 units)*
₩135,360.00
일시적 품절
- 2026년 4월 21일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Box(es) | Per Box | 한팩당* |
|---|---|---|
| 1 + | ₩135,360.00 | ₩9,024.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 225-346
- 제조사 부품 번호:
- 236-114
- 제조업체:
- WAGO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | WAGO | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 14 | |
| Pitch | 5.08mm | |
| Current | 24A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Mount Type | Through Hole | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Colour | Grey | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 25 V | |
| Standards/Approvals | No | |
| Depth | 14mm | |
| Width | 72.3 mm | |
| Series | 236 | |
| 모두 선택 | ||
|---|---|---|
브랜드 WAGO | ||
Product Type PCB Terminal Block | ||
Number of Contacts 14 | ||
Pitch 5.08mm | ||
Current 24A | ||
Number of Rows 1 | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.08mm² | ||
Mount Type Through Hole | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Colour Grey | ||
Wire Connection Method Cage Clamp | ||
Voltage 25 V | ||
Standards/Approvals No | ||
Depth 14mm | ||
Width 72.3 mm | ||
Series 236 | ||
- COO (Country of Origin):
- CH
The Wago PCB terminal block provides a reliable and efficient solution for interconnecting multiple electrical circuits. Designed with CAGE CLAMP technology, it ensures a secure and robust connection for solid and fine-stranded conductors, promoting safe and dependable operation in demanding environments. With versatility in pin spacing, this terminal block accommodates various installation requirements, enhancing its usability in compact spaces.
Manufactured from high quality materials for durability
Compliant with significant safety and environmental standards
Lightweight design enhances ease of handling and installation
Variety of colour options for easy identification and sorting
