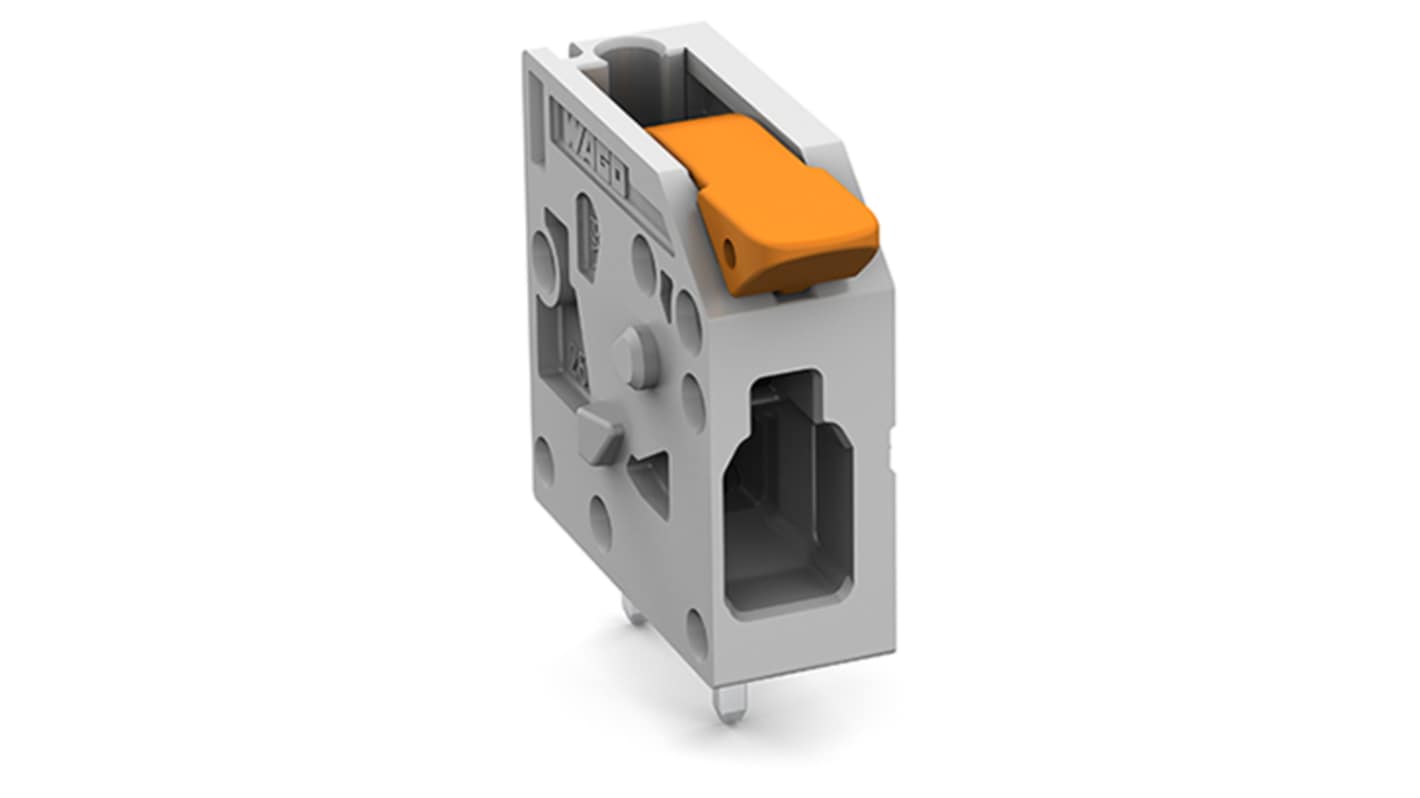

WAGO 2604 Series PCB Connector, 1-Contact, 5 mm Pitch, Through Hole, 2 Row
- RS 제품 번호:
- 225-150
- 제조사 부품 번호:
- 2604-1101
- 제조업체:
- WAGO
Subtotal (1 Box of 300 units)*
₩477,952.40
일시적 품절
- 2026년 4월 27일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Box(es) | Per Box | 한팩당* |
|---|---|---|
| 1 + | ₩477,952.40 | ₩1,592.36 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 225-150
- 제조사 부품 번호:
- 2604-1101
- 제조업체:
- WAGO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | WAGO | |
| Number of Contacts | 1 | |
| Product Type | PCB Connector | |
| Pitch | 5mm | |
| Number of Rows | 2 | |
| Current | 32A | |
| Housing Material | Polyamide 66 | |
| Mount Type | Through Hole | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 4mm² | |
| Minimum Wire Size AWG | 24 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Orientation | 0° | |
| Colour | Grey | |
| Wire Connection Method | Push-in | |
| Voltage | 32 V | |
| Length | 7.4mm | |
| Standards/Approvals | No | |
| Depth | 19.2mm | |
| Series | 2604 | |
| Width | 7.4 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 WAGO | ||
Number of Contacts 1 | ||
Product Type PCB Connector | ||
Pitch 5mm | ||
Number of Rows 2 | ||
Current 32A | ||
Housing Material Polyamide 66 | ||
Mount Type Through Hole | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 4mm² | ||
Minimum Wire Size AWG 24 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Orientation 0° | ||
Colour Grey | ||
Wire Connection Method Push-in | ||
Voltage 32 V | ||
Length 7.4mm | ||
Standards/Approvals No | ||
Depth 19.2mm | ||
Series 2604 | ||
Width 7.4 mm | ||
- COO (Country of Origin):
- PL
The Wago PCB terminal block with Push-in CAGE CLAMP connection is a robust and innovative solution designed for efficient conductor terminations. Featuring a single-pole design, it allows for intuitive, tool-free operation, simplifying the process of connecting solid and ferruled conductors. With its compact dimensions and clever lever mechanism, this terminal block ensures security and stability while accommodating a variety of conductor sizes.
Compatible with a variety of ferrule types
Compliant with international standards for electrical safety
Solder pin arrangement supports in line configurations
Constructed from high quality flame retardant materials
Robust against environmental challenges including temperature extremes
