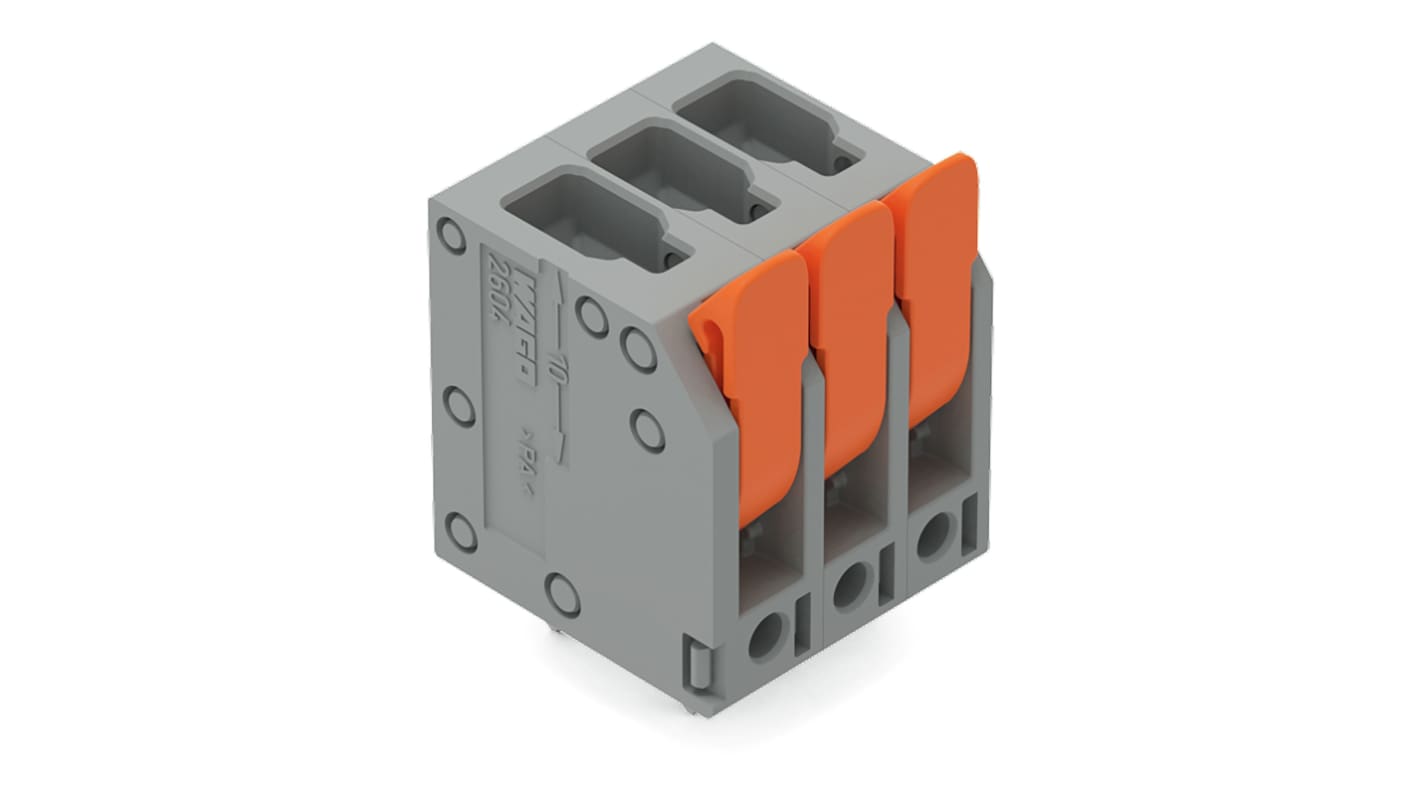

WAGO 2604 Series PCB Connector, 3-Contact, 5 mm Pitch, Through Hole, 1 Row
- RS 제품 번호:
- 225-071
- Distrelec 제품 번호:
- 304-29-972
- 제조사 부품 번호:
- 2604-3103
- 제조업체:
- WAGO
Subtotal (1 Box of 120 units)*
₩516,060.00
일시적 품절
- 2026년 4월 20일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Box(es) | Per Box | 한팩당* |
|---|---|---|
| 1 + | ₩516,060.00 | ₩4,301.44 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 225-071
- Distrelec 제품 번호:
- 304-29-972
- 제조사 부품 번호:
- 2604-3103
- 제조업체:
- WAGO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | WAGO | |
| Number of Contacts | 3 | |
| Product Type | PCB Connector | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Mount Type | Through Hole | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 4mm² | |
| Minimum Wire Size AWG | 24 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Orientation | 90° | |
| Colour | Grey | |
| Series | 2604 | |
| Width | 17.4 mm | |
| Standards/Approvals | No | |
| Depth | 16.7mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 WAGO | ||
Number of Contacts 3 | ||
Product Type PCB Connector | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Mount Type Through Hole | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 4mm² | ||
Minimum Wire Size AWG 24 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Orientation 90° | ||
Colour Grey | ||
Series 2604 | ||
Width 17.4 mm | ||
Standards/Approvals No | ||
Depth 16.7mm | ||
- COO (Country of Origin):
- PL
The Wago PCB terminal block with Push-in CAGE CLAMP technology revolutionises conductor connections by ensuring tool-free operation and intuitive handling. Ideal for use in compact spaces, this component's innovative lever design simplifies the insertion of both solid and fine-stranded conductors up to 4 mm². Its robust construction includes a durable grey polyamide housing, ensuring reliable performance even in challenging environments.
Constructed with high quality polyamide for enhanced durability
Meets multiple regulatory standards for safety and reliability
Allows for simultaneous clamping unit operation simplifying wiring tasks
Engineered for optimal performance within a wide temperature range
