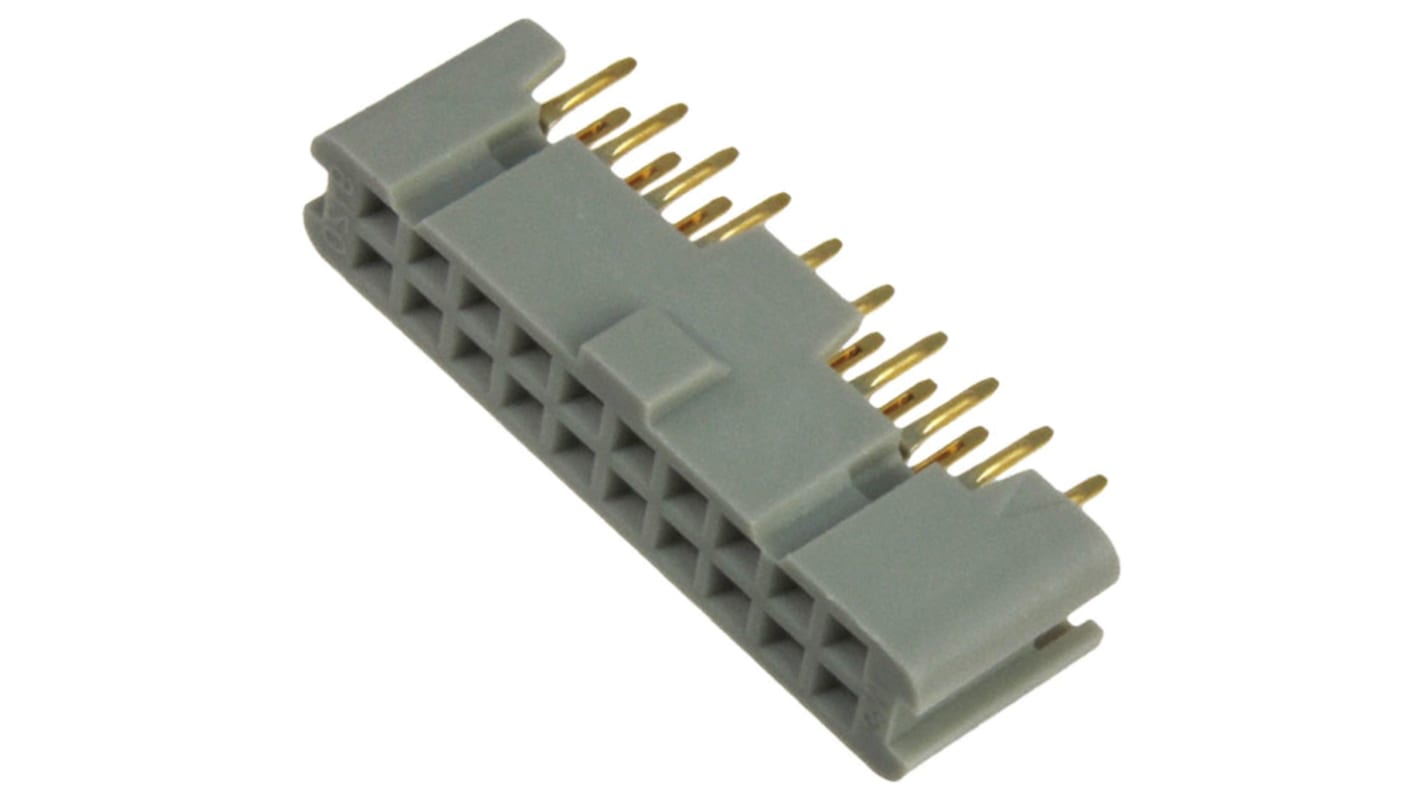

3M 9100 Series Straight Through Hole PCB Socket, 20-Contact, 2 Row, 2.54 mm Pitch Solder

This PCB socket is a reliable board-to-board connector designed for seamless integration in electronic assemblies. It features 20 contacts arranged in two rows with a 2.54mm pitch, enabling efficient connections through hole mounting. This solder termination socket is crafted to handle a current rating of 1A and is rated for a maximum voltage of 1000V, making it suitable for various applications in the automation, electronics, and mechanical industries.

• 20 contact design ensures robust connectivity and signal integrity

• Ideal for mounting in automated machinery for signal transmission

The gold plating on the contacts provides superior conductivity and resistance to oxidation, ensuring long-lasting and reliable connections even in challenging environments.

Yes, it is rated for a voltage of 1000V, making it suitable for high-voltage applications in various electronic devices.

The 2.54mm pitch accommodates standard PCB layouts, making it versatile for different circuit designs and reducing the risk of misalignment during assembly.

The through-hole mounting method facilitates straightforward installation, allowing for secure fittings into the PCB without complex processes.

Solder termination provides strong mechanical bonds and excellent electrical connections, ensuring stability and performance under different operational conditions.
