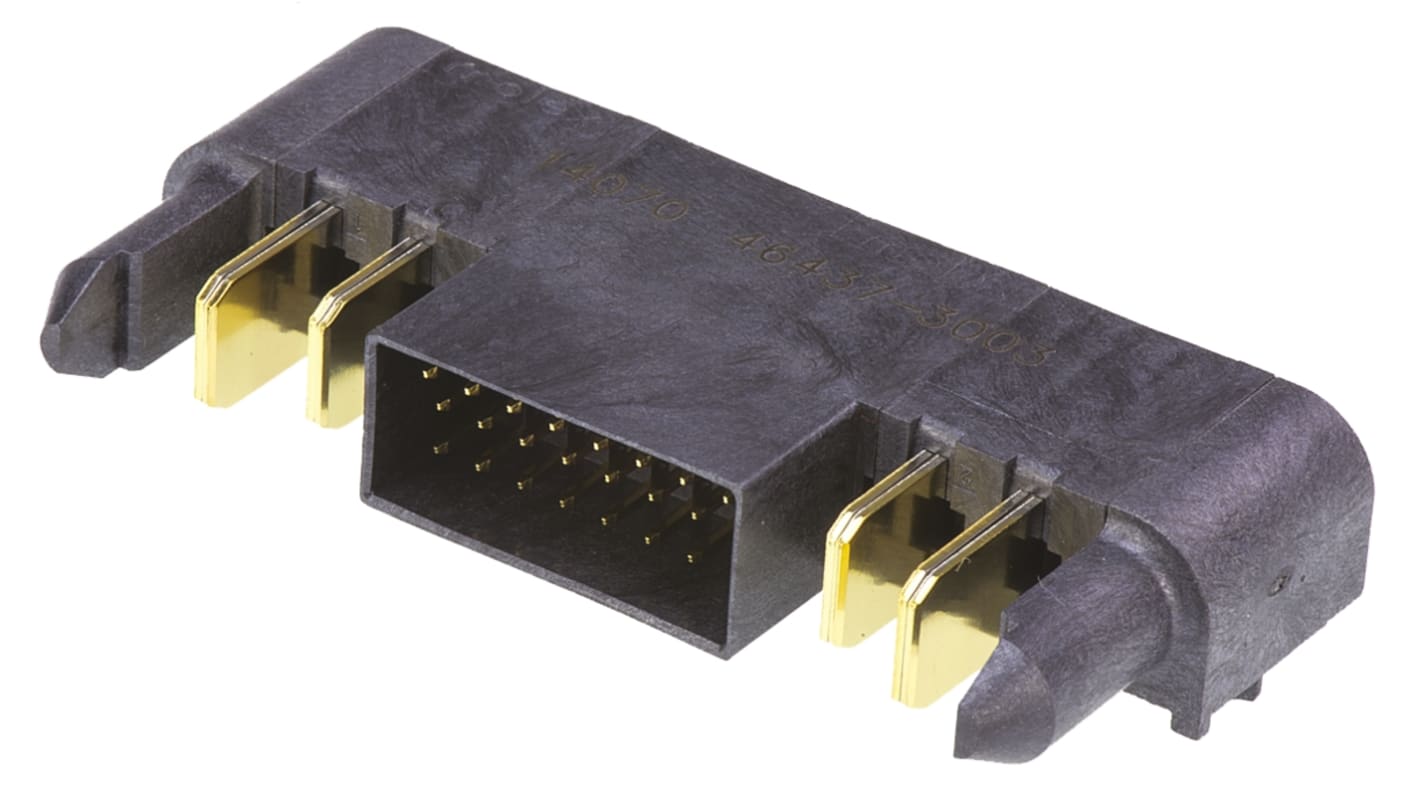

Molex EXTreme Ten60Power Series Right Angle Through Hole Mount Heavy Duty Power Connector, 28-Contact, 3-Row, 5.5mm

모든 PCB Sockets 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩19,702.40

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 7월 16일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩19,702.40
5 +₩19,100.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
729-6078
제조사 부품 번호:
046437-3003
제조업체:
Molex
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Molex

Number of Contacts

28

Number of Rows

3

Pitch

5.5mm

Type

Connector

Mounting Type

Through Hole

Body Orientation

Right Angle

Connector System

Board-to-Board

Termination Method

Solder

Current Rating

2.5 A, 60A

Voltage Rating

250 V, 600 V

Series

EXTreme Ten60Power

Contact Plating

Gold

Contact Material

Copper

Series Number

46437

Molex EXTreme Ten60Power Series Heavy Duty Power Connector, 28 Contacts, Right Angle Body Orientation - 046437-3003


This heavy-duty power connector is designed for demanding applications in the electrical and mechanical industries. It features a compact right-angle configuration, allowing for efficient use of space in board-to-board connections. With 28 contacts and a dependable pitch of 5.5mm, this connector is suited for both power and signal circuits.

Features & Benefits


• Current rating supports applications up to 60A
• Voltage rating provides reliability at 600V AC / 250V DC
• Through-hole termination ensures secure attachment to PCBs
• Designed with guide pins for easy alignment during mating

Applications


• Utilised in automation systems requiring high current supply
• Ideal for electrical distribution boards
• Effective in signal transmission for telecommunications equipment
• Suitable for connectors in mechanical assemblies

How durable is the connector for repeated use?


The heavy-duty power connector is tested for up to 200 mating cycles, ensuring long-term reliability in high-use environments.

What materials are used in the construction of the connector?


This connector is made from copper with gold plating for the contacts, providing excellent conductivity, while the body is constructed from high-temperature thermoplastic for resilience.

What is the recommended PCB thickness for optimal performance?


The recommended PCB thickness for this connector is 1.58mm, ensuring a secure and robust connection.

Can the connector operate in extreme temperatures?


Yes, it operates efficiently within a temperature range of -40°C to +105°C, making it suitable for various industrial environments.

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.



Molex EXTreme Ten60Power Hybrid Power and Signal Connectors


EXTreme Ten60Power hybrid power and signal connectors designed for use in board to board, wire to board and panel to board applications. These hybrid power connectors feature high current contact blades with a robust design and a 7.5 mm power pitch. These contacts provide 50 A of current per blade (260 A per linear pitch) with fast response times. Resistance to arcing in hot pluggable applications prevents electrical interruptions. These EXTreme Ten60Power hybrid power and signal connectors have an easy to configure modular design offering design flexibility for a wide range of power and signal requirements
