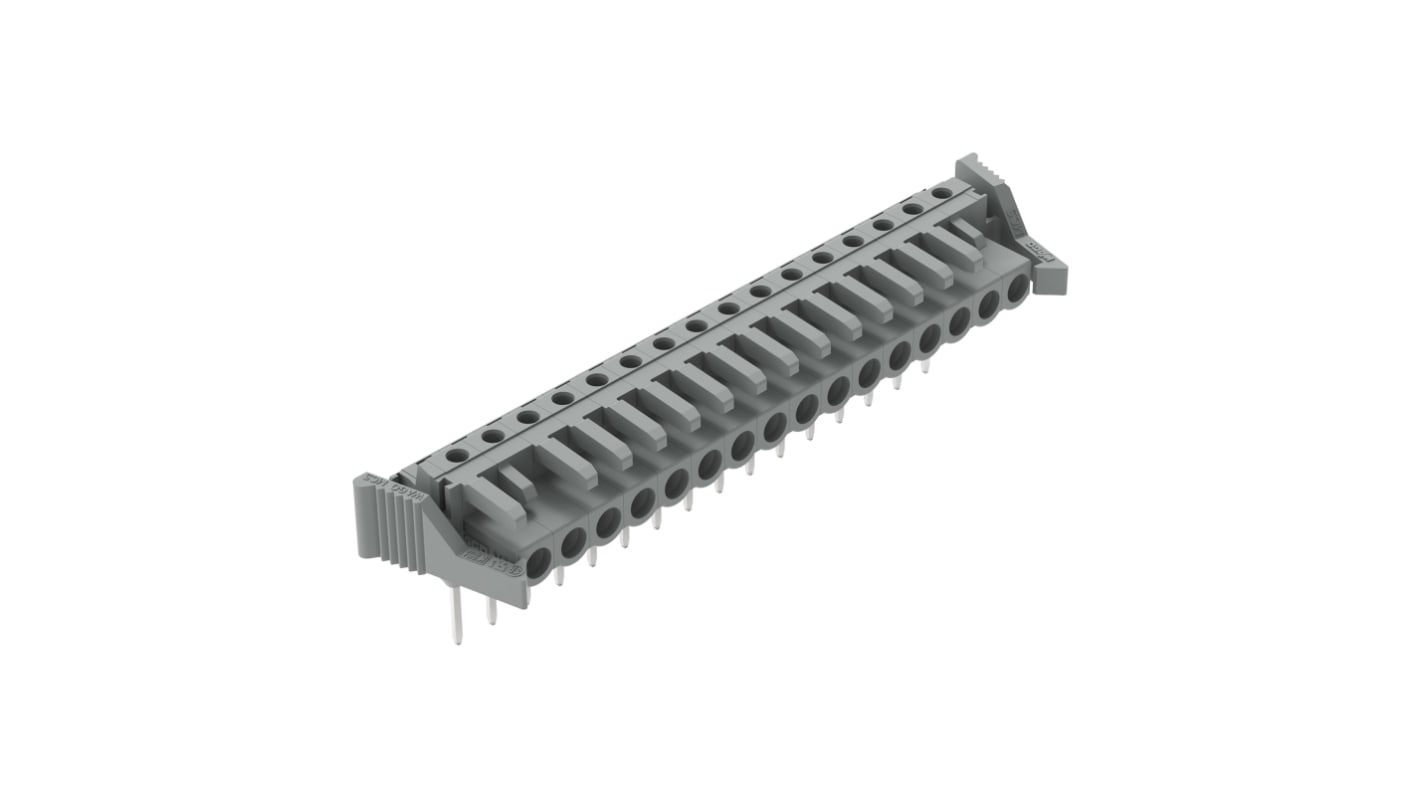

WAGO 232 Series Angled PCB Connector, 16-Contact, 1 Row, 5 mm Pitch Pluggable
- RS 제품 번호:
- 278-1387
- 제조사 부품 번호:
- 232-246/005-000/039-000
- 제조업체:
- WAGO
일시적 품절
- RS 제품 번호:
- 278-1387
- 제조사 부품 번호:
- 232-246/005-000/039-000
- 제조업체:
- WAGO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 16 | |
| Sub Type | Female Connector | |
| Number of Rows | 1 | |
| Current | 12A | |
| Pitch | 5mm | |
| Termination Type | Pluggable | |
| Housing Material | Polyamide 66 | |
| Orientation | Angled | |
| Series | 232 | |
| Row Pitch | 5mm | |
| Minimum Operating Temperature | -60°C | |
| Contact Plating | Tin | |
| Contact Material | Copper Alloy | |
| Maximum Operating Temperature | 85°C | |
| Contact Gender | Female | |
| Standards/Approvals | CSA, UL 1059, UL 1977, IEC/EN 60664-1 | |
| 모두 선택 | ||
|---|---|---|
브랜드 WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 16 | ||
Sub Type Female Connector | ||
Number of Rows 1 | ||
Current 12A | ||
Pitch 5mm | ||
Termination Type Pluggable | ||
Housing Material Polyamide 66 | ||
Orientation Angled | ||
Series 232 | ||
Row Pitch 5mm | ||
Minimum Operating Temperature -60°C | ||
Contact Plating Tin | ||
Contact Material Copper Alloy | ||
Maximum Operating Temperature 85°C | ||
Contact Gender Female | ||
Standards/Approvals CSA, UL 1059, UL 1977, IEC/EN 60664-1 | ||
- COO (Country of Origin):
- DE
The WAGO Female connector is designed for rail mount terminal blocks. It features pins with dimensions of 0.6 x 1 mm, and the connector is angled. It is equipped with a locking lever for secure connections.
RoHS compliant
With coding fingers
Anti rotation protection
V0 flammability class per UL94
