Molex 502443 Series Vertical Surface PCB Socket, 4-Contact, 1 Row, 2 mm Pitch Surface Mount
- RS 제품 번호:
- 243-6884
- Distrelec 제품 번호:
- 304-33-037
- 제조사 부품 번호:
- 502443-0470
- 제조업체:
- Molex

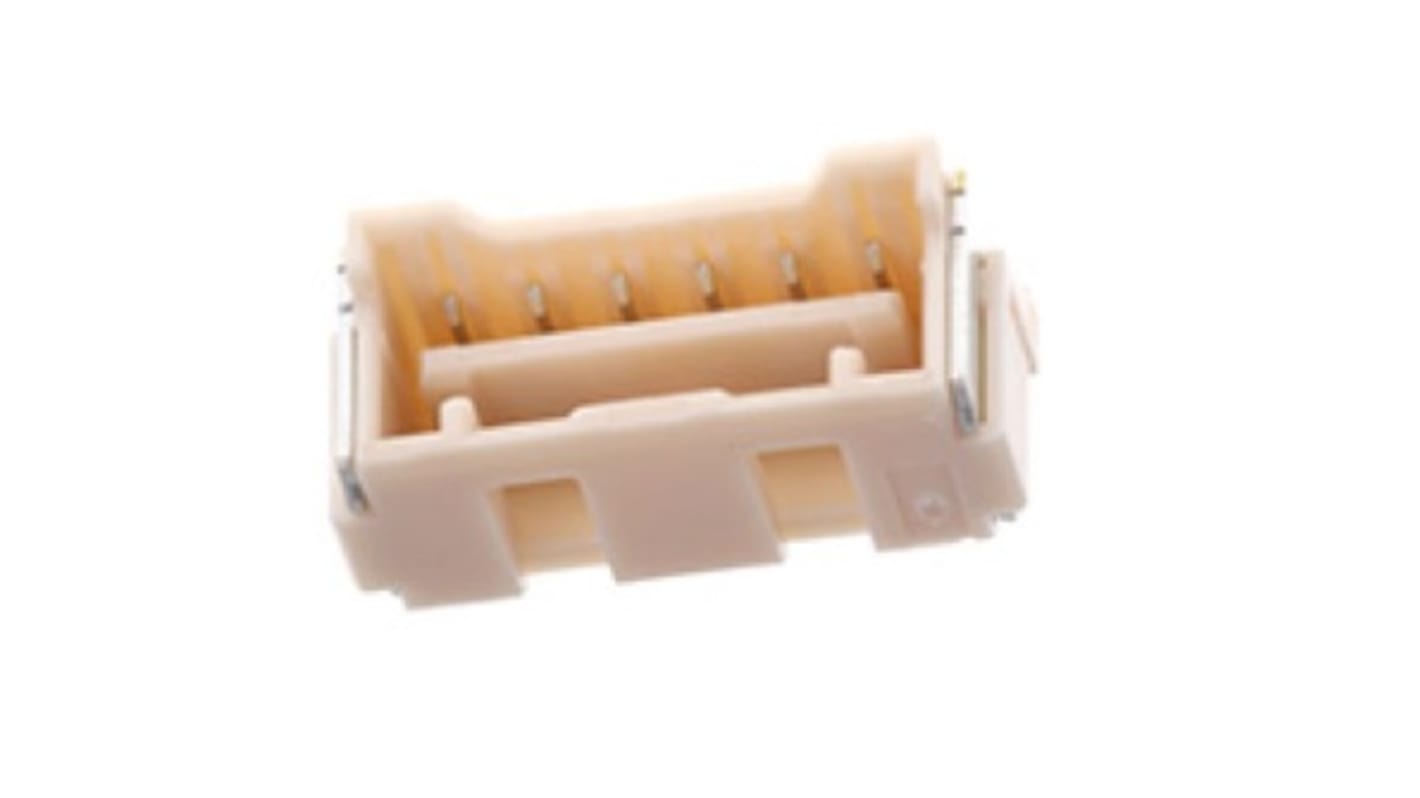

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 tape of 10 units)*
₩9,262.50
재고있음
- 추가로 2026년 5월 11일 부터 260 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Tape* |
|---|---|---|
| 10 - 40 | ₩926.25 | ₩9,262.50 |
| 50 - 90 | ₩889.20 | ₩8,892.00 |
| 100 - 190 | ₩854.10 | ₩8,541.00 |
| 200 + | ₩819.00 | ₩8,190.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 243-6884
- Distrelec 제품 번호:
- 304-33-037
- 제조사 부품 번호:
- 502443-0470
- 제조업체:
- Molex
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Molex | |
| Number of Contacts | 4 | |
| Product Type | PCB Socket | |
| Number of Rows | 1 | |
| Sub Type | Wire-to-Board | |
| Pitch | 2mm | |
| Current | 3A | |
| Housing Material | Thermoplastic | |
| Termination Type | Surface Mount | |
| Mount Type | Surface | |
| Orientation | Vertical | |
| Stacking Height | 10.9mm | |
| Connector System | Wire-to-Board | |
| Voltage | 250V | |
| Series | 502443 | |
| Minimum Operating Temperature | -40°C | |
| Contact Gender | Male | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | UL E29179 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Molex | ||
Number of Contacts 4 | ||
Product Type PCB Socket | ||
Number of Rows 1 | ||
Sub Type Wire-to-Board | ||
Pitch 2mm | ||
Current 3A | ||
Housing Material Thermoplastic | ||
Termination Type Surface Mount | ||
Mount Type Surface | ||
Orientation Vertical | ||
Stacking Height 10.9mm | ||
Connector System Wire-to-Board | ||
Voltage 250V | ||
Series 502443 | ||
Minimum Operating Temperature -40°C | ||
Contact Gender Male | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals UL E29179 | ||
- COO (Country of Origin):
- JP
The Molex PCB receptacle with vertical orientation has surface mount termination interface. It has operating temperature range from -40° to +105°C. It is rated for 250V AC (RMS)/DC voltage and 3A current.
Lock to mating part
Polarized to PCB
