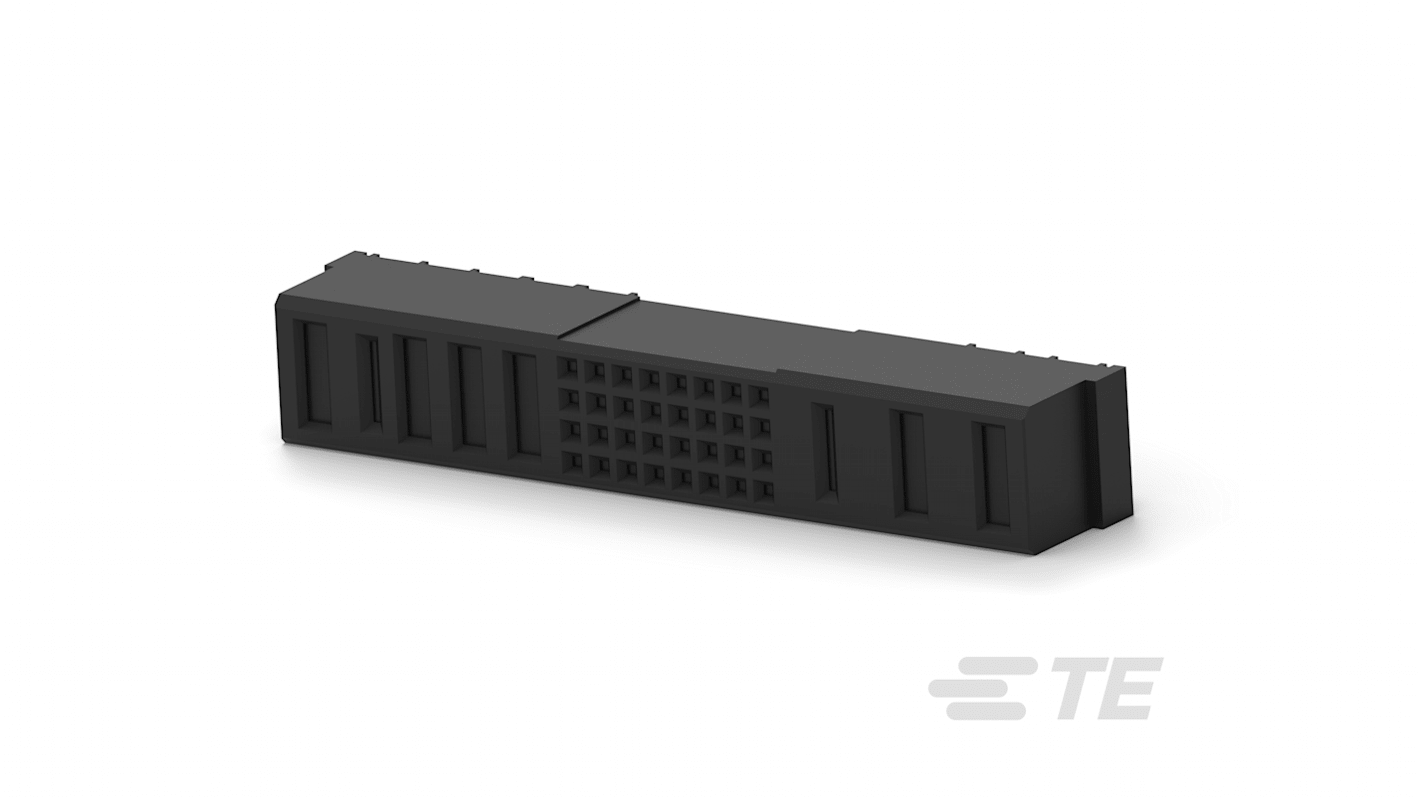

TE Connectivity Multi-Beam XLE Series Vertical PCB Heavy Duty Power Connector, 40-Contact, 4 Row Solder
- RS 제품 번호:
- 217-5390
- 제조사 부품 번호:
- 1-6450869-4
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩22,560.00
재고있음
- 96 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 8 | ₩22,560.00 |
| 9 - 16 | ₩22,108.80 |
| 17 + | ₩21,657.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 217-5390
- 제조사 부품 번호:
- 1-6450869-4
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Number of Contacts | 40 | |
| Product Type | Heavy Duty Power Connector | |
| Sub Type | Rectangular Power Connector | |
| Number of Rows | 4 | |
| Current | 42A | |
| Termination Type | Solder | |
| Housing Material | High Temperature Thermoplastic | |
| Mount Type | PCB | |
| Orientation | Vertical | |
| Connector System | Board-to-Board | |
| Voltage | 300 V | |
| Series | Multi-Beam XLE | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2.54mm | |
| Maximum Operating Temperature | 125°C | |
| Contact Material | Tin | |
| Contact Gender | Female | |
| Standards/Approvals | UL 94V-0, EU RoHS Directive 2011/65/EU, EU ELV Directive 2000/53/EC | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Number of Contacts 40 | ||
Product Type Heavy Duty Power Connector | ||
Sub Type Rectangular Power Connector | ||
Number of Rows 4 | ||
Current 42A | ||
Termination Type Solder | ||
Housing Material High Temperature Thermoplastic | ||
Mount Type PCB | ||
Orientation Vertical | ||
Connector System Board-to-Board | ||
Voltage 300 V | ||
Series Multi-Beam XLE | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2.54mm | ||
Maximum Operating Temperature 125°C | ||
Contact Material Tin | ||
Contact Gender Female | ||
Standards/Approvals UL 94V-0, EU RoHS Directive 2011/65/EU, EU ELV Directive 2000/53/EC | ||
The TE Connectivity MULTI-BEAM XLE, Rectangular Power Connectors, having 40 position with Board-to-Board connector system.
Rectangular Power Connector Type - Connector Assembly
Connector System - Board-to-Board
Connector & Contact Terminates To - Printed Circuit Board
