Hirose DF40 Series Straight Surface Mount PCB Socket, 12-Contact, 2-Row, 0.4mm Pitch, Solder Termination

RS 제품 번호:: 172-2476
제조사 부품 번호:: DF40B(2.0)-12DS-0.4V(58)
제조업체:: Hirose

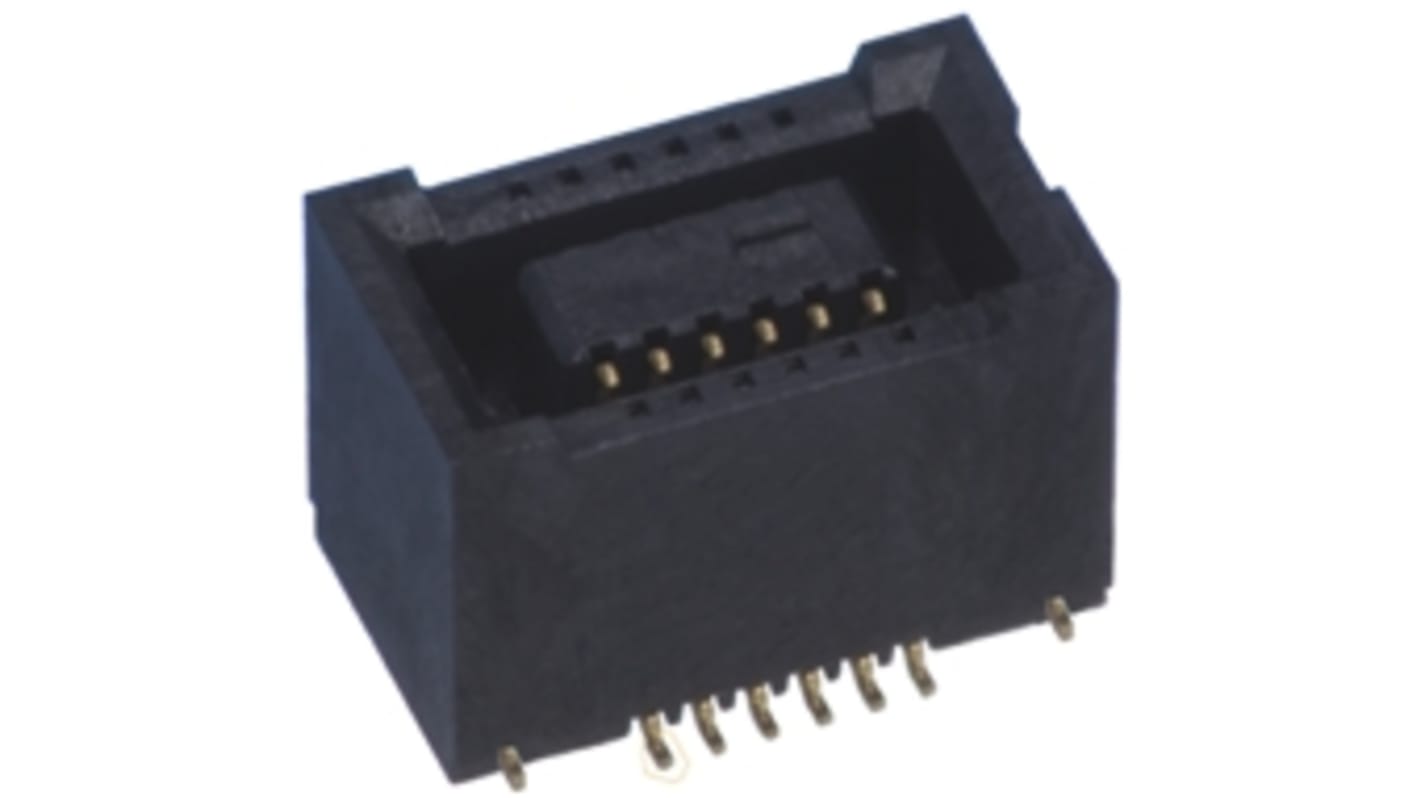

Hirose DF40 Series Straight Surface Mount PCB Socket, 12-Contact, 2-Row, 0.4mm Pitch, Solder Termination

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

가격 개당가격(1000개가 1릴안에)**

₩671.16

일시 품절-다음 입고 날짜는 14/10/2025 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.*

* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.

수량	한팩당	릴당**
1000 - 4000	₩671.16	₩670,596.00
5000 +	₩658.00	₩657,060.00

** 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 172-2476
제조사 부품 번호:: DF40B(2.0)-12DS-0.4V(58)
제조업체:: Hirose

Hirose DF40 Series 0.4 mm Board to Board Connectors

DF40 Series 0.4 mm board to board and board to FPC header and socket connectors with a high density, low profile space saving design. The width of these connectors is a minimum of 3.38 mm but there is still sufficient space for a vacuum area for pick and place mounting. These DF40 Series connectors are available with a range of stack heights from 1.5 mm to 4.0 mm for high density mounting and design versatility. The contacts of these DF40 series connectors offer high contact reliability with an effective mating length of 0.45 mm on the lowest 1.5 mm stacking height. Nickel plated barriers protect the contact areas from solder wicking. These 0.4mm DF40 connectors feature a locking mechanism to prevent accidental unmating. Once mating is complete a tactile click is produced to provide mating assurance. Guide ribs on the connector enable the connector to self-align by 0.33 mm during mating. These DF40 connectors have a reinforced structure with shock absorbing ribs that help protect against damage caused by impact or vibration. When mated the housing of these DF40 connectors covers the contacts protecting them from dust and debris and preventing shorting. The SMT leads are positioned close to the connector which also prevents contaminants from causing shorts on the exposed contacts

Features and Benefits

• High density, low profile design
• Wide range of stack heights
• High contact reliability
• Nickel plated barriers to prevent solder wicking
• Locking mechanism with audible click for mating assurance
• Guide ribs allow self-alignment of 0.33 mm
• Reinforced structure with shock absorbing ribs
• Contamination resistant design

Application Specification

The 0.4mm DF40 Series board to board connectors with their high density design and reliable performance are ideal for use in miniature devices. Applications include mobile phones, developer chip sets, LCD displays, Notebook PCs and keyboards

Note

For mating DF40 SMT Headers see stock number 772-6737 typical.

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

0.4mm Hirose - DF40

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Hirose
	Number of Contacts	12
	Number of Rows	2
	Pitch	0.4mm
	Type	Board to Board, Board to FPC
	Mounting Type	Surface Mount
	Body Orientation	Straight
	Termination Method	Solder
	Current Rating	300mA
	Voltage Rating	30 V
	Series	DF40
	Contact Material	Copper

	모두 선택
	브랜드 Hirose
	Number of Contacts 12
	Number of Rows 2
	Pitch 0.4mm
	Type Board to Board, Board to FPC
	Mounting Type Surface Mount
	Body Orientation Straight
	Termination Method Solder
	Current Rating 300mA
	Voltage Rating 30 V
	Series DF40
	Contact Material Copper
