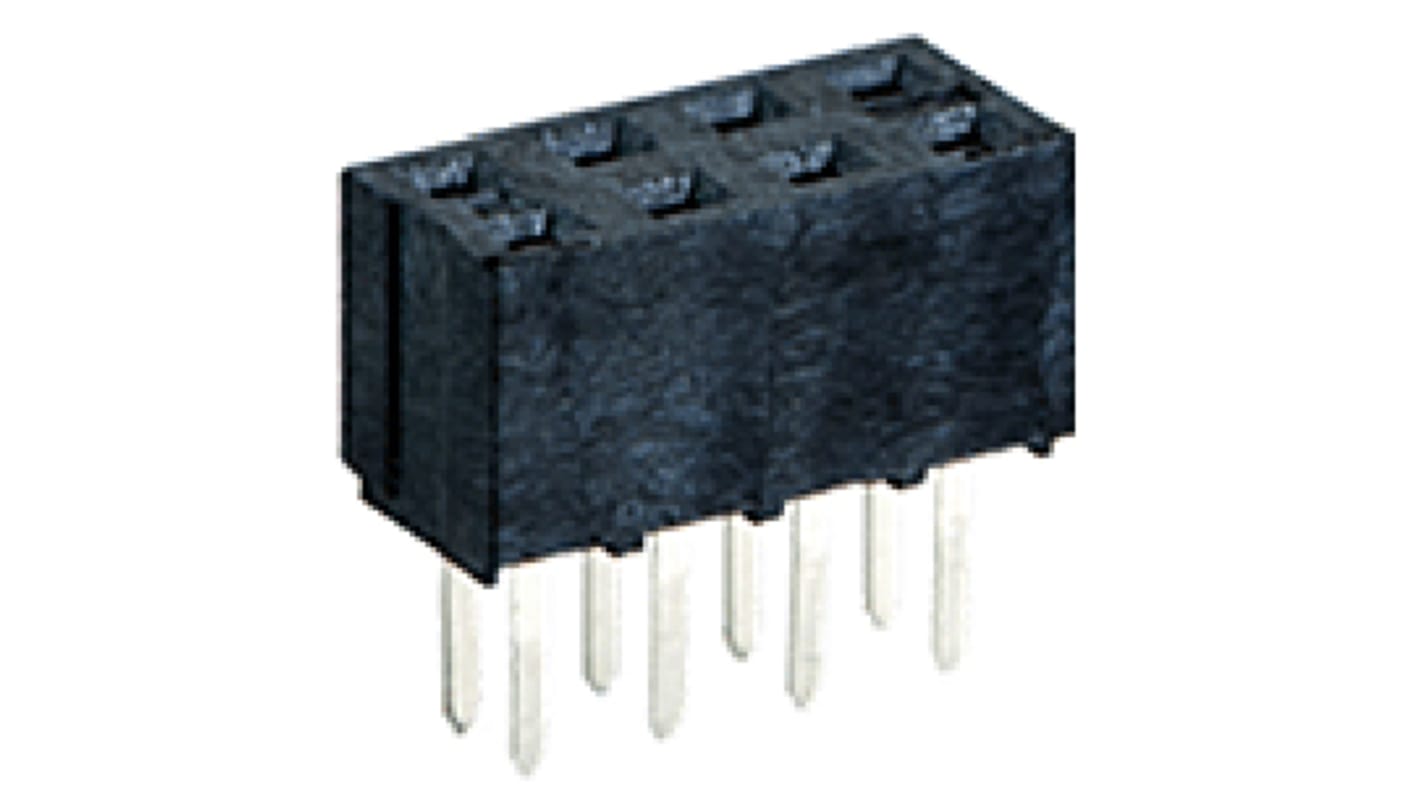

Molex 79107 Series Straight Through Hole PCB Socket, 10-Contact, 2 Row, 2 mm Pitch Plug-In
- RS 제품 번호:
- 144-8150
- 제조사 부품 번호:
- 791077004
- 제조업체:
- Molex
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩2,199.60
재고있음
- 547 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩2,199.60 |
| 10 - 49 | ₩2,143.20 |
| 50 - 99 | ₩2,105.60 |
| 100 - 499 | ₩2,049.20 |
| 500 + | ₩1,898.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 144-8150
- 제조사 부품 번호:
- 791077004
- 제조업체:
- Molex
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Molex | |
| Product Type | PCB Socket | |
| Number of Contacts | 10 | |
| Number of Rows | 2 | |
| Sub Type | Board-to-Board | |
| Pitch | 2mm | |
| Current | 12A | |
| Termination Type | Plug-In | |
| Housing Material | Thermoplastic | |
| Mount Type | Through Hole | |
| Orientation | Straight | |
| Connector System | Signal, Board-to-Board | |
| Voltage | 125 V | |
| Series | 79107 | |
| Row Pitch | 2mm | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Female | |
| Contact Material | Bronze | |
| Contact Plating | Gold | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Molex | ||
Product Type PCB Socket | ||
Number of Contacts 10 | ||
Number of Rows 2 | ||
Sub Type Board-to-Board | ||
Pitch 2mm | ||
Current 12A | ||
Termination Type Plug-In | ||
Housing Material Thermoplastic | ||
Mount Type Through Hole | ||
Orientation Straight | ||
Connector System Signal, Board-to-Board | ||
Voltage 125 V | ||
Series 79107 | ||
Row Pitch 2mm | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Female | ||
Contact Material Bronze | ||
Contact Plating Gold | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
The dual row vertical receptacle series is designed to connect, (1) PC board to PC board in parallel, (2) PC board to PC board perpendicular. The connector utilizes a dual beam female Terminal designed to provide east-west mating and early entry mating when mated from the top. This connector series is available in a range of circuit sizes from 4 circuits (2 X 2) through 50 circuits (2 X 25) in 2 circuit increments.
2.00mm Pitch Milli-Grid™ Receptacle, Vertical, Through Hole, Dual Row, 3.00mm Tail Length, 0.38μm Gold (Au) Selective Plating, 10 Circuits, Lead-Free
