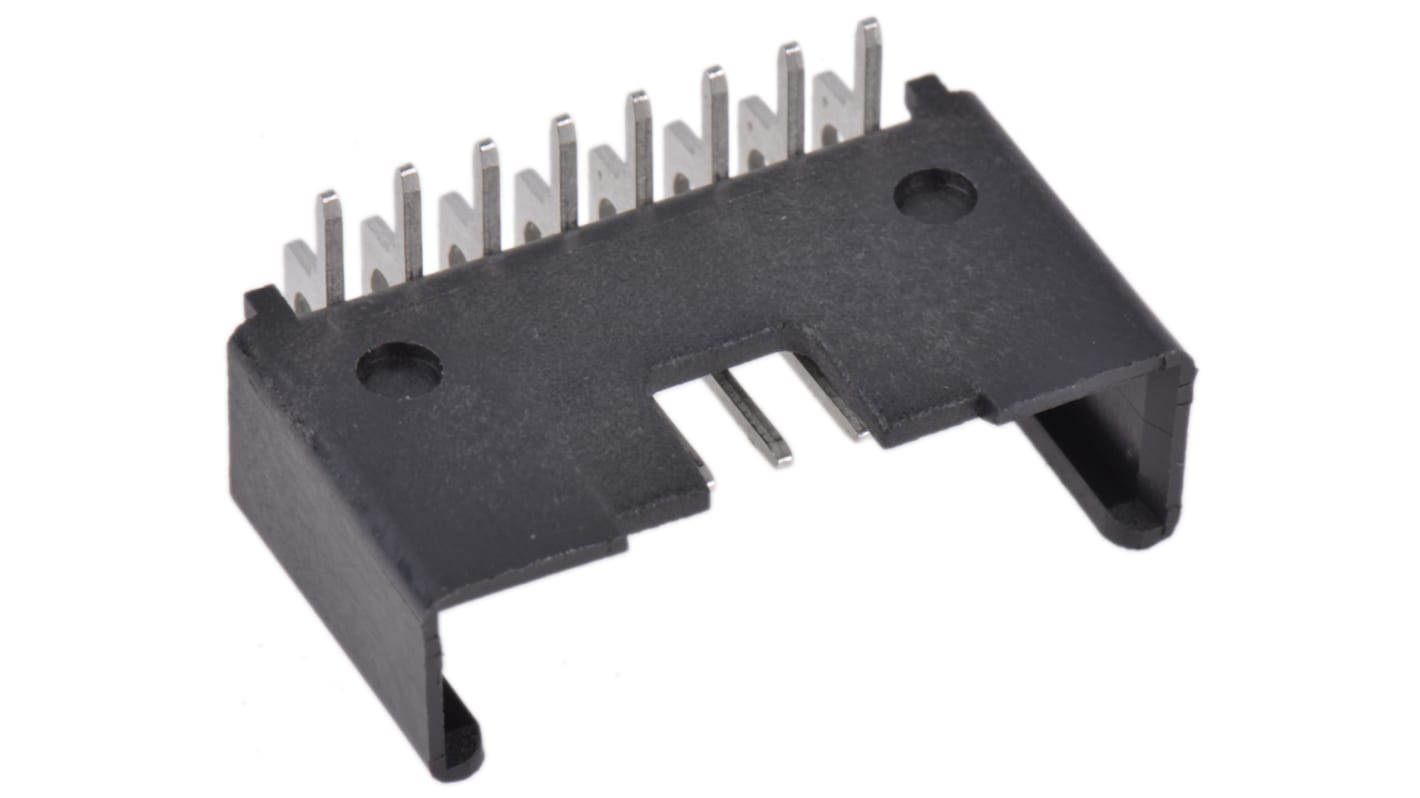

Lumberg Minimodul Series Right Angle Through Hole PCB Header, 8 Contact(s), 2.5mm Pitch, 1 Row(s), Shrouded
- RS 제품 번호:
- 737-8704
- 제조사 부품 번호:
- 2,5 MSFW/O 08
- 제조업체:
- Lumberg
일시 품절-다음 입고 날짜는 30/07/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당가격(10개가 1팩안에)
₩983.193
수량 | 한팩당 | 한팩당* |
10 - 60 | ₩983.193 | ₩9,833.655 |
70 + | ₩962.494 | ₩9,618.042 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 737-8704
- 제조사 부품 번호:
- 2,5 MSFW/O 08
- 제조업체:
- Lumberg
참조 문서
제정법과 컴플라이언스
제품 세부 사항
Minimodul Horizontal Headers
These Lumberg Minimodul™ horizontal pin headers mate with crimp contact housings (3114 Series), see stock number 737-8482 typical, for indirect mating of wire to board connections.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
2.5mm Wire to Board - Lumberg Minimodul Series
These Lumberg Minimodul Connectors are for cable-to-board connections. The Minimodul Series connectors provide easy harnessing of single leads and flat cables with established crimp technology and are especially suitable for low and middle-volume production. The design of the Minimodul Series connectors is suitable for signal and low load currents up to 5 A. Pitch 2.50 mm (.098").
사양
속성 | 값 |
---|---|
Series | Minimodul |
Pitch | 2.5mm |
Number of Contacts | 8 |
Number of Rows | 1 |
Body Orientation | Right Angle |
Shrouded/Unshrouded | Shrouded |
Connector System | Wire to Board |
Mounting Type | Through Hole |
Termination Method | Solder |
Contact Plating | Tin |
Contact Material | Brass |
Current Rating | 5.0A |
Voltage Rating | 160 V ac |
