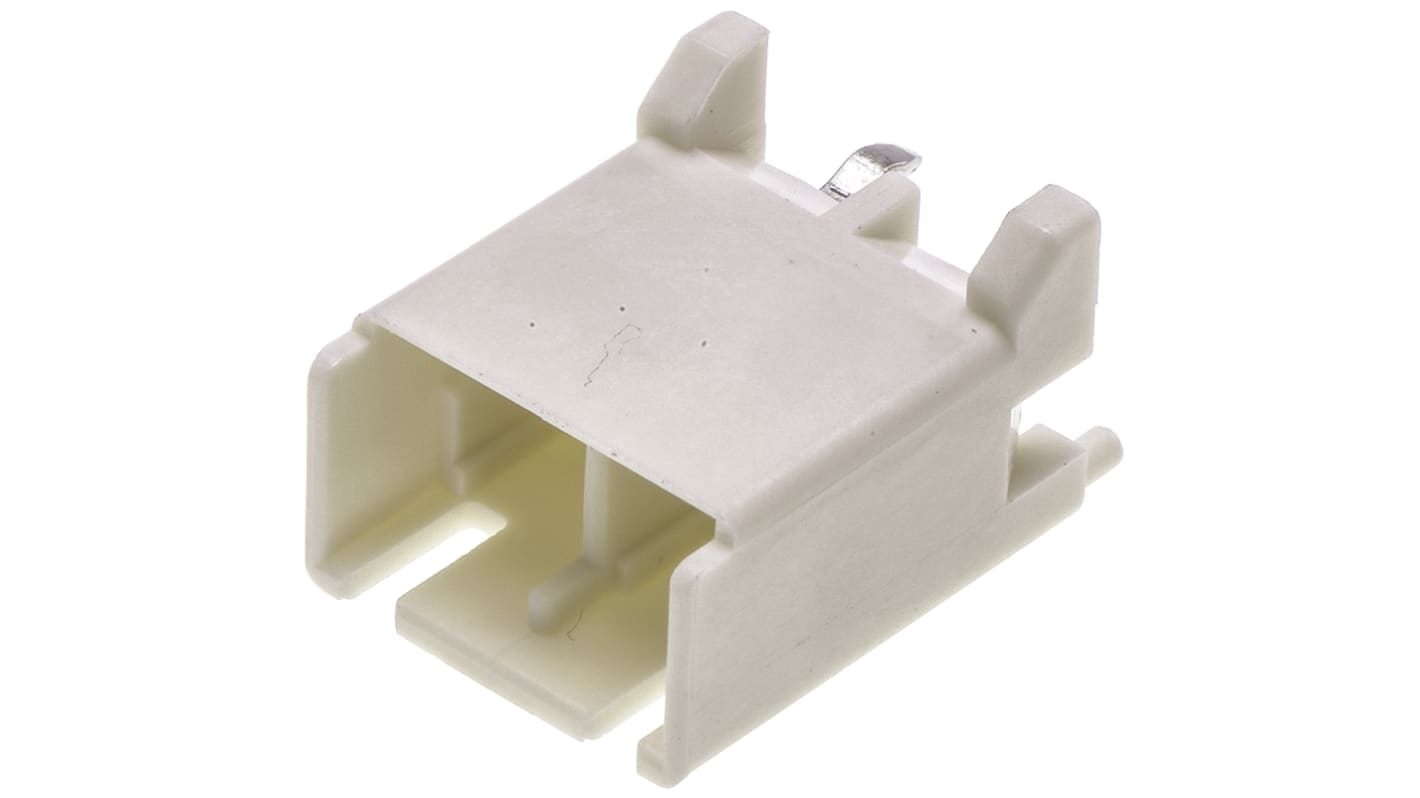

TE Connectivity Power Key Series Straight Through Hole PCB Header, 2 Contact(s), 5 mm Pitch, 1 Row, Shrouded
- RS 제품 번호:
- 712-1426
- Distrelec 제품 번호:
- 304-50-190
- 제조사 부품 번호:
- 1376382-1
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 받기
25개 더 담고 2% 할인 받기
View bulk pricing optionsSubtotal (1 pack of 5 units)*
₩5,720.00
마지막 RS 재고
- 최종적인 65 개 unit(s)이 배송 준비 됨
수량 | 한팩당 | 한팩당* | 절감 |
|---|---|---|---|
| 5 - 20 | ₩1,144.00 | ₩5,720.00 | - |
| 25 - 45 | ₩1,116.00 | ₩5,580.00 | 2% |
| 50 + | ₩1,096.00 | ₩5,480.00 | 4% |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 712-1426
- Distrelec 제품 번호:
- 304-50-190
- 제조사 부품 번호:
- 1376382-1
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Product Type | PCB Header | |
| Series | Power Key | |
| Pitch | 5mm | |
| Current | 10A | |
| Housing Material | Glass Filled Nylon | |
| Number of Contacts | 2 | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | Wire-to-Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin | |
| Minimum Operating Temperature | -65°C | |
| Row Pitch | 5mm | |
| Termination Type | Press Fit | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.5mm | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Voltage | 300V | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Product Type PCB Header | ||
Series Power Key | ||
Pitch 5mm | ||
Current 10A | ||
Housing Material Glass Filled Nylon | ||
Number of Contacts 2 | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System Wire-to-Board | ||
Contact Material Copper Alloy | ||
Contact Plating Tin | ||
Minimum Operating Temperature -65°C | ||
Row Pitch 5mm | ||
Termination Type Press Fit | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.5mm | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Voltage 300V | ||
- COO (Country of Origin):
- CN
TE Connectivity 5.0mm Power Key (5.0 PKC) Header Connectors
Power Key (5.0 PKC) power circuit header connectors with a 5.0mm contact centreline and compact design. These 5.0mm Power Key headers have, internal locking levers, colour coded housings to aid with blind mating and a keying mechanism to prevent mismating. The housings of these vertical PCB mount Power Key headers are made from 6/6 glass filled nylon and are 'natural' colour coded and the contacts are tin plated. These 5.0mm Power Key headers have 'Type A' keying, please see datasheet for further details.
Typical applications for these Power Key (5.0 PKC) male headers include power circuits of home appliances in particular gas appliances.
For mating 5.0mm Power Key plug housings see stock number 712-1432 typically.
TE Connectivity 5.0mm Power Key Range
