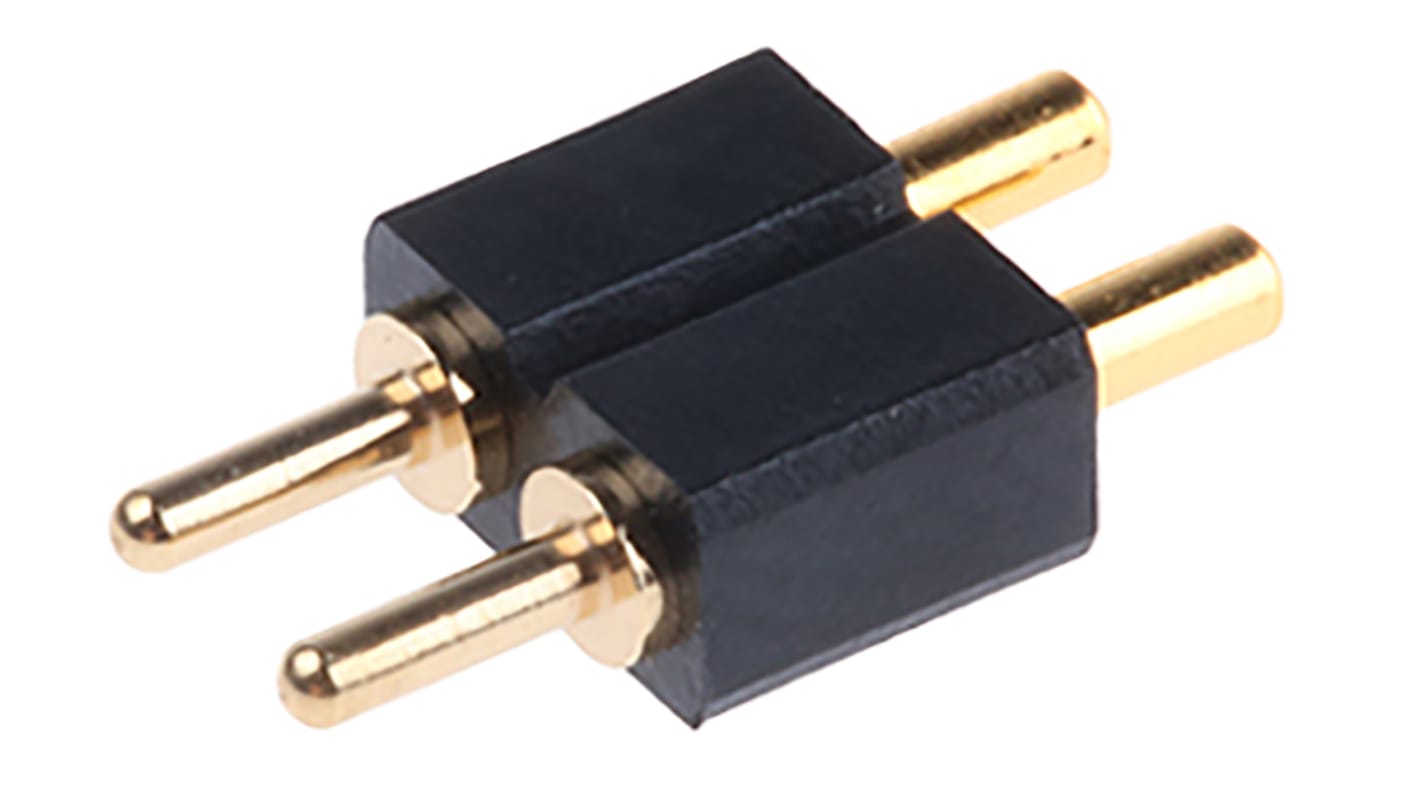

    Preci-Dip Straight Through Hole Spring Loaded Connector, 2 Contact(s), 2.54mm Pitch, 1 Row(s), Shrouded

    Preci-Dip
    RS 제품 번호:
    702-0098
    제조사 부품 번호:
    811-S1-002-10-016101
    제조업체:
    Preci-Dip
    모든 PCB Headers 열람하기
    일시 품절-다음 입고 날짜는 12/10/2023 (일/월/년) 이며, 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 연락주세요.
    Add to Basket
    수량

    추가완료!

    단가 Each

    ₩2,775.50

    수량한팩당
    1 - 24₩2,775.50
    25 - 74₩2,693.25
    75 - 199₩2,611.00
    200 - 399₩2,556.75
    400 +₩2,502.50
    포장 옵션
    RS 제품 번호:
    702-0098
    제조사 부품 번호:
    811-S1-002-10-016101
    제조업체:
    Preci-Dip

    제정법과 컴플라이언스

    COO (Country of Origin):
    CH

    제품 세부 사항

    2.54 mm SIL Spring-Loaded Contacts, Through Hole


    These Preci-dip SIL 813-S1 Series low resistance modular connectors have spring-loaded contacts (SLC) with through hole mounting into the PCB.

    The Height dimension gives the initial height of the spring-loaded contacts
    The plastic body height is 4 mm
    The plunger stroke length is 1.4 mm

    Note

    For counterpart SMD SIL Pad Connectors see stock number 702-0360 (straight) or 702-5126 (parallel) typical

    Standards

    UL 94V-0
    For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.


    Preci-dip Spring-Loaded Connectors


    A perfect alternative to conventional connection solutions. The electrical multipoint connection between the mobile piston and the clip guarantees low, stable electrical resistance values without micro-discontinuities, even when the piston is moving or vibrating, thus assuring maximum reliability.

    사양

    속성
    Pitch2.54mm
    Number of Contacts2
    Number of Rows1
    Body OrientationStraight
    Shrouded/UnshroudedShrouded
    Mounting TypeThrough Hole
    Termination MethodSolder
    Contact PlatingGold
    Contact MaterialBrass
    Current Rating3.5A
    Voltage Rating100 V ac, 150 V dc
    GenderMale
