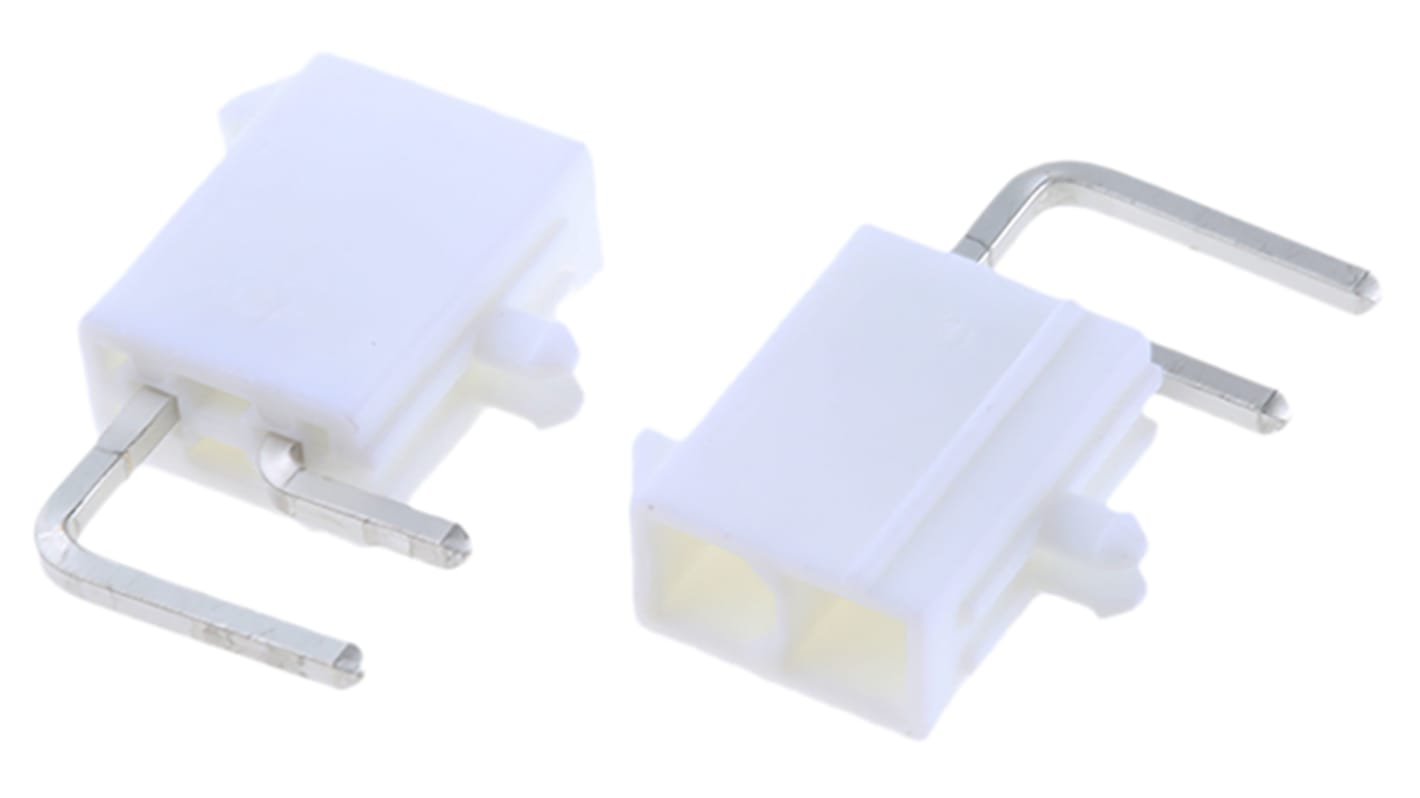

Molex Mini-Fit Jr Series Right Angle Through Hole PCB Header, 2 Contact(s), 4.2 mm Pitch, 2 Row, Shrouded

RS 제품 번호:: 670-5708
제조사 부품 번호:: 39-30-0020
제조업체:: Molex

Molex Mini-Fit Jr Series Right Angle Through Hole PCB Header, 2 Contact(s), 4.2 mm Pitch, 2 Row, Shrouded

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 pack of 5 units)*

₩5,339.20

재고있음

추가로 2026년 1월 20일 부터 15 개 단위 배송
추가로 2026년 1월 27일 부터 5,845 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
5 - 120	₩1,067.84	₩5,339.20
125 - 495	₩1,037.76	₩5,188.80
500 - 1245	₩1,007.68	₩5,038.40
1250 - 2495	₩977.60	₩4,888.00
2500 +	₩958.80	₩4,794.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 670-5708
제조사 부품 번호:: 39-30-0020
제조업체:: Molex

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Molex
	Product Type	PCB Header
	Series	Mini-Fit Jr
	Pitch	4.2mm
	Current	9A
	Number of Contacts	2
	Housing Material	Nylon
	Number of Rows	2
	Orientation	Right Angle
	Shrouded/Unshrouded	Shrouded
	Connector System	Wire-to-Board
	Mount Type	Through Hole
	Contact Plating	Tin
	Contact Material	Brass
	Row Pitch	4.2mm
	Termination Type	Solder
	Minimum Operating Temperature	-40°C
	Contact Gender	Male
	Maximum Operating Temperature	105°C
	Standards/Approvals	No
	Voltage	600V

	모두 선택
	브랜드 Molex
	Product Type PCB Header
	Series Mini-Fit Jr
	Pitch 4.2mm
	Current 9A
	Number of Contacts 2
	Housing Material Nylon
	Number of Rows 2
	Orientation Right Angle
	Shrouded/Unshrouded Shrouded
	Connector System Wire-to-Board
	Mount Type Through Hole
	Contact Plating Tin
	Contact Material Brass
	Row Pitch 4.2mm
	Termination Type Solder
	Minimum Operating Temperature -40°C
	Contact Gender Male
	Maximum Operating Temperature 105°C
	Standards/Approvals No
	Voltage 600V

COO (Country of Origin):: MX

Molex 5569 Series PCB Header, 4.2mm Pitch, 13A Current Rating - 39-30-0020

This PCB header is designed as a right-angle connector suitable for power and wire-to-board applications. With a 4.2mm pitch and a dual-row configuration, it features shrouded contacts that ensure secure connections. Constructed from Durable materials, it supports a maximum current rating of 13A and a voltage rating of 600V, making it a robust solution for various electronic needs.

Features & Benefits

• Right-angle design optimises space utilisation on PCBs

• Dual-row configuration accommodates up to two circuits

• Shrouded header enhances security and reliability

• Through-hole termination method allows for straightforward soldering

• Brass contacts ensure excellent conductivity and durability

• High current rating supports demanding applications up to 13A

Applications

• Utilised in automation systems for reliable wiring connections

• Suitable for electrical equipment power distribution

• Ideal for connecting devices in industrial machinery

• Used in consumer electronics for Compact layouts

What type of termination method does it utilise, and what is its significance?

The connection employs a through-hole termination method, providing a secure and low-resistance solder joint that enhances the component's stability on the PCB during operation. This ensures reliable performance in various applications.

Is there a recommended PCB thickness for optimal performance?

The recommended PCB thickness for this connector is 1.78mm, ensuring a secure fit and maintaining signal integrity.

What materials are the contacts MADE from, and why is that important?

The contacts are MADE from brass, which offers excellent conductivity and resistance to corrosion, ensuring long-lasting performance in electrical connections. This is Crucial for applications where reliability is paramount.
