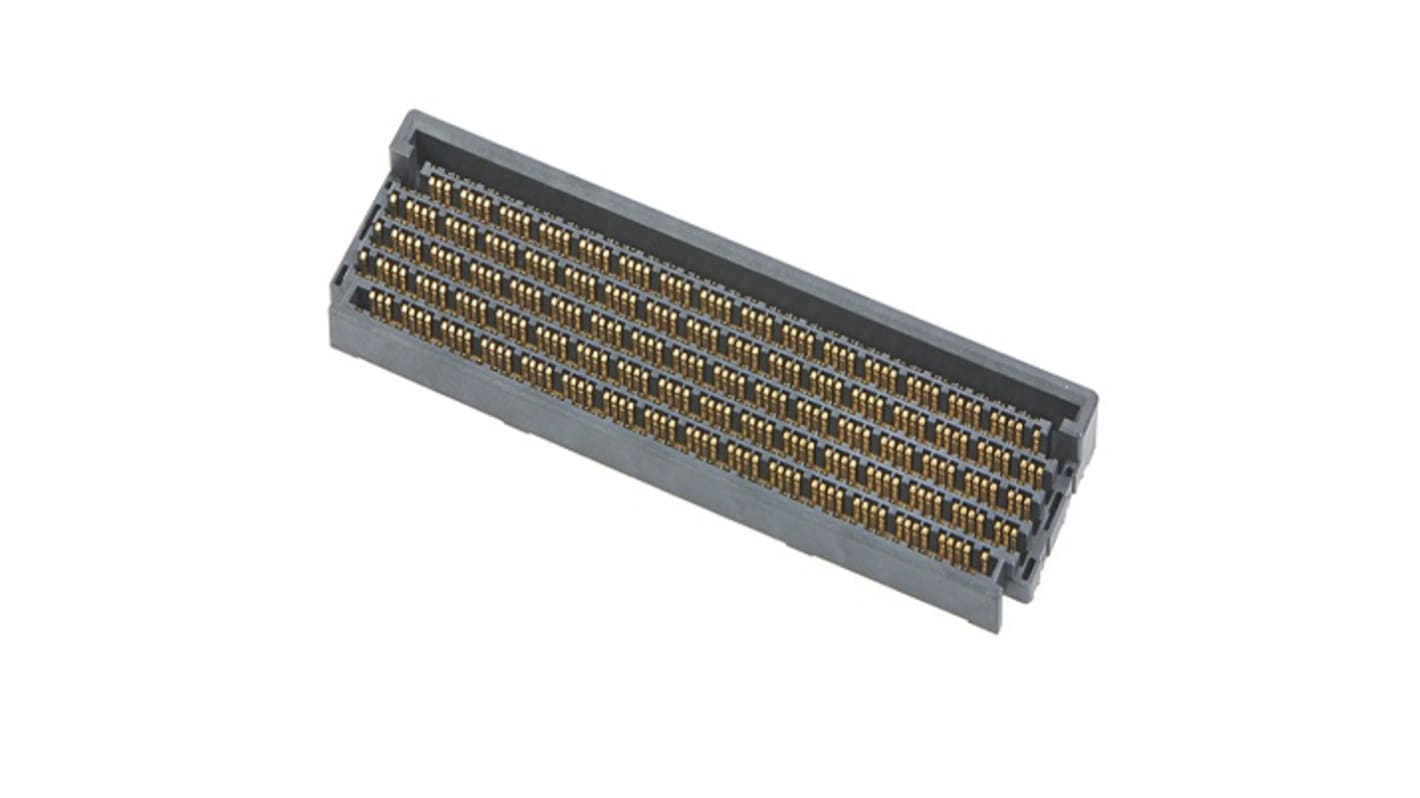

Molex 209311 Series Vertical Surface PCB Header, 688 Contact(s), 2.5 mm Pitch, 11 Row, Shrouded
- RS 제품 번호:
- 265-9354
- 제조사 부품 번호:
- 209311-1115
- 제조업체:
- Molex
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
- RS 제품 번호:
- 265-9354
- 제조사 부품 번호:
- 209311-1115
- 제조업체:
- Molex
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Molex | |
| Series | 209311 | |
| Product Type | PCB Header | |
| Pitch | 2.5mm | |
| Current | 1.2A | |
| Housing Material | High Temperature Thermoplastic | |
| Number of Contacts | 688 | |
| Number of Rows | 11 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Surface | |
| Contact Plating | Gold, Tin | |
| Contact Material | Alloy | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 2.5mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CSA LR19980, UL E29179 | |
| Voltage | 30 V ac, 30 V dc | |
| 모두 선택 | ||
|---|---|---|
브랜드 Molex | ||
Series 209311 | ||
Product Type PCB Header | ||
Pitch 2.5mm | ||
Current 1.2A | ||
Housing Material High Temperature Thermoplastic | ||
Number of Contacts 688 | ||
Number of Rows 11 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Surface | ||
Contact Plating Gold, Tin | ||
Contact Material Alloy | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 2.5mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CSA LR19980, UL E29179 | ||
Voltage 30 V ac, 30 V dc | ||
- COO (Country of Origin):
- CN
The Molex mirror mezz hermaphroditic connector is made by high performance alloy and has gold plating. It is available in black color and has vertical orientation.
Embossed tape on reel packaging
Net weight 5.360/g
BGA-attach mounting
