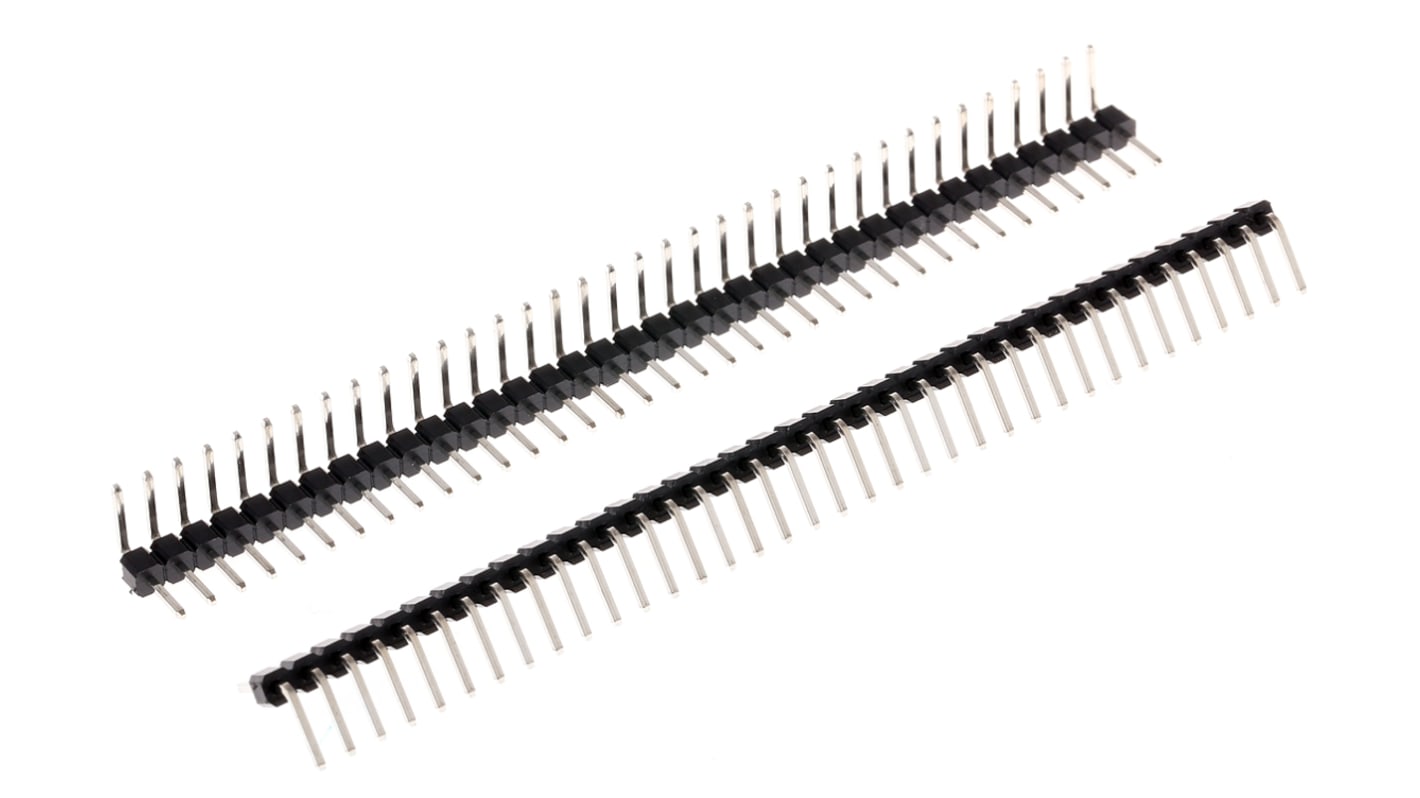

RS PRO Right Angle Through Hole Pin Header, 36 Contact(s), 2.54 mm Pitch, 1 Row, Unshrouded

대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 pack of 10 units)*

₩19,380.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 790 개 단위 배송 준비 완료
  • 추가로 2027년 3월 18일 부터 900 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
한팩당*
10 - 140₩1,938.00₩19,380.00
150 - 490₩1,880.00₩18,800.00
500 - 990₩1,822.00₩18,220.00
1000 - 4990₩1,784.00₩17,840.00
5000 +₩1,468.00₩14,680.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
251-8430
Distrelec 제품 번호:
304-19-129
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Product Type

Pin Header

Pitch

2.54mm

Current

1A

Housing Material

PBT

Number of Contacts

36

Number of Rows

1

Orientation

Right Angle

Shrouded/Unshrouded

Unshrouded

Mount Type

Through Hole

Contact Plating

Tin

Contact Material

Brass

Termination Type

Solder

Minimum Operating Temperature

-65°C

Tail Pin Length

5.11mm

Maximum Operating Temperature

150°C

Contact Gender

Male

Mating Pin Length

4.8mm

Standards/Approvals

RoHS

Voltage

650V

COO (Country of Origin):
TW

90° Headers


Various pin heights and PCB tail lengths

Can be snapped to desired length

2.54mm PCB Connector RS Range


A large variety of connector options, to cover the majority of board-to-board, bussing and programming requirements.
