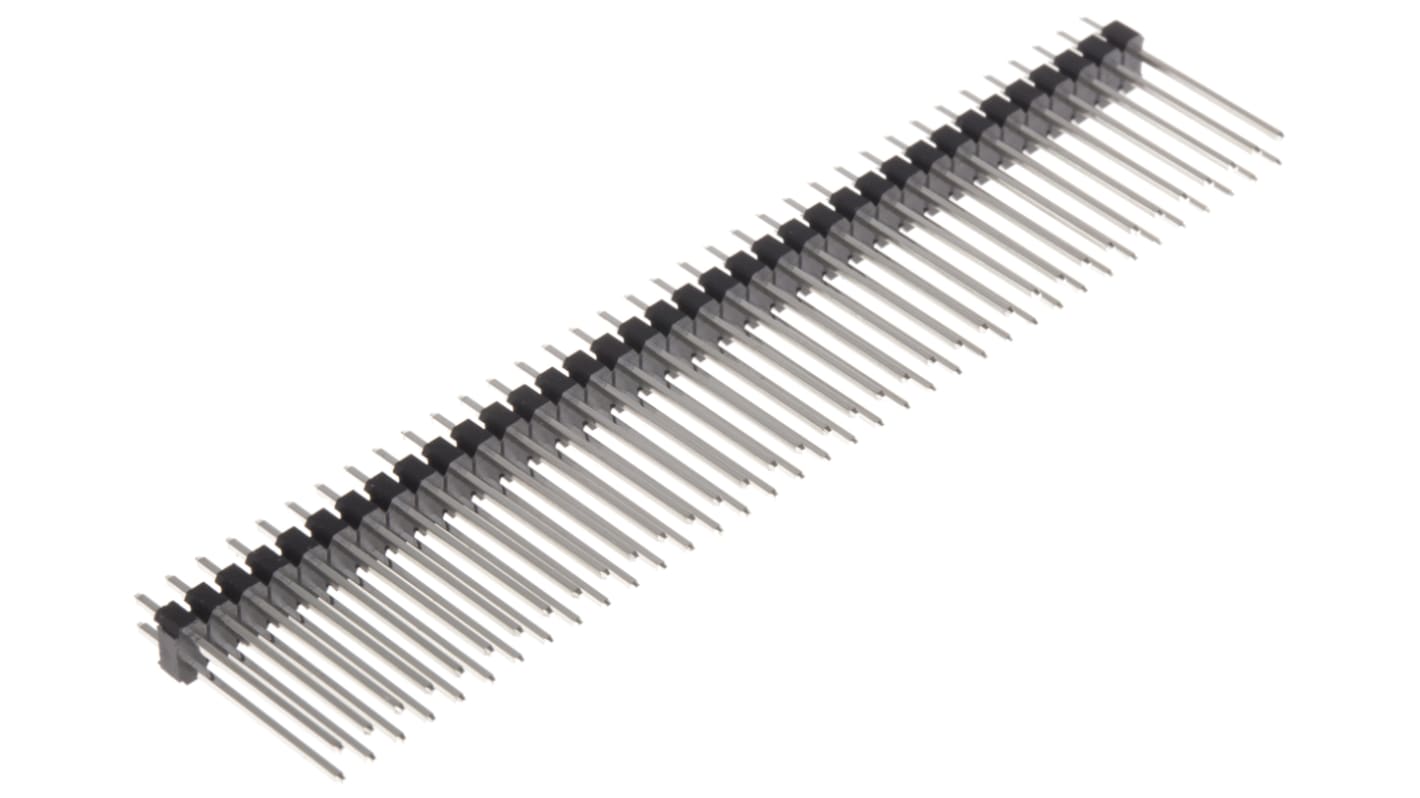

RS PRO Straight Through Hole Pin Header, 72 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded
- RS 제품 번호:
- 251-8424
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 pack of 10 units)*
₩27,786.40
재고있음
- 추가로 2026년 2월 16일 부터 440 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 10 - 140 | ₩2,778.64 | ₩27,786.40 |
| 150 - 490 | ₩2,695.92 | ₩26,959.20 |
| 500 - 990 | ₩2,611.32 | ₩26,113.20 |
| 1000 - 4990 | ₩2,556.80 | ₩25,568.00 |
| 5000 + | ₩2,103.72 | ₩21,037.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 251-8424
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Pin Header | |
| Current | 4A | |
| Pitch | 2.54mm | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Contacts | 72 | |
| Number of Rows | 2 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Through Hole | |
| Contact Plating | Tin | |
| Contact Material | Brass | |
| Row Pitch | 2.54mm | |
| Minimum Operating Temperature | -65°C | |
| Termination Type | Solder | |
| Tail Pin Length | 2.96mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Mating Pin Length | 14.5mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Pin Header | ||
Current 4A | ||
Pitch 2.54mm | ||
Housing Material Polybutylene Terephthalate | ||
Number of Contacts 72 | ||
Number of Rows 2 | ||
Orientation Straight | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Through Hole | ||
Contact Plating Tin | ||
Contact Material Brass | ||
Row Pitch 2.54mm | ||
Minimum Operating Temperature -65°C | ||
Termination Type Solder | ||
Tail Pin Length 2.96mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Mating Pin Length 14.5mm | ||
RS PRO Straight Pin Header, 72-Way, 2 Row
Need to make connections on your PCBs (printed circuit boards)? Use this straight pin header from RS PRO. It allows you to join multiple boards together quickly and easily without the need for soldering or wiring. For simple yet secure installation, it's through-hole mounted.
The connector has two rows of pins and a thermoplastic body that holds them in a grid. The pin contacts are made of tin-plated brass, which is highly conductive and resistant to corrosion for long-lasting performance. Thanks to its thermoplastic body material, it can also withstand extremely high temperatures without losing shape if the boards overheat.
For increased versatility, you can break the header according to your needs for use with more than one circuit. You'll find this type of connector used for prototyping and troubleshooting tasks in industries such as product development.
