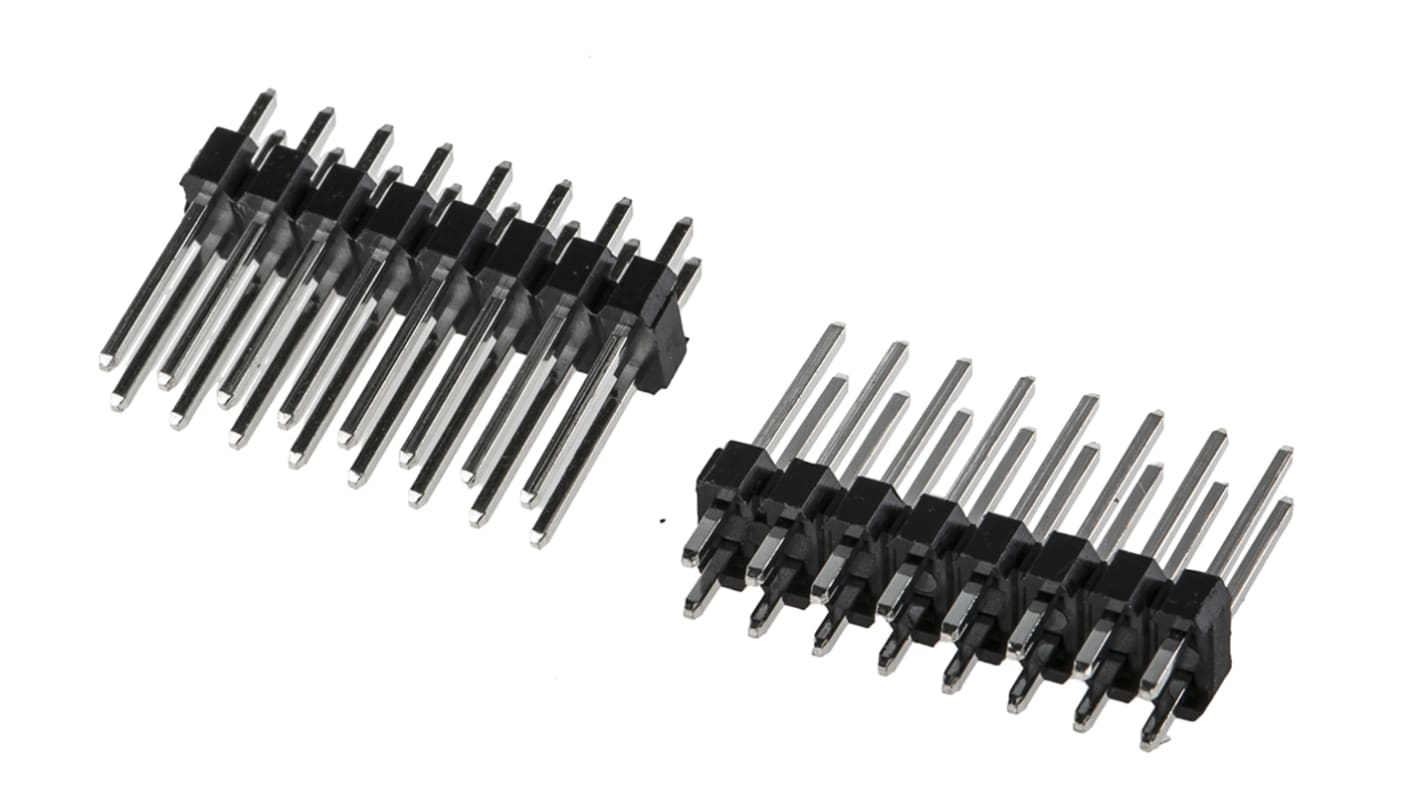

RS PRO Straight Through Hole Pin Header, 16 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded
- RS 제품 번호:
- 251-8288
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 pack of 10 units)*
₩7,256.80
재고있음
- 610 개 단위 배송 준비 완료
- 추가로 2026년 2월 26일 부터 120 개 단위 배송
- 추가로 2026년 4월 16일 부터 1,800 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 10 - 140 | ₩725.68 | ₩7,256.80 |
| 150 - 490 | ₩705.00 | ₩7,050.00 |
| 500 - 990 | ₩682.44 | ₩6,824.40 |
| 1000 - 4990 | ₩667.40 | ₩6,674.00 |
| 5000 + | ₩548.96 | ₩5,489.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 251-8288
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Pin Header | |
| Pitch | 2.54mm | |
| Current | 1A | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Contacts | 16 | |
| Number of Rows | 2 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Through Hole | |
| Contact Plating | Tin | |
| Contact Material | Brass | |
| Minimum Operating Temperature | -65°C | |
| Termination Type | Solder | |
| Tail Pin Length | 3mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Mating Pin Length | 8.5mm | |
| Voltage | 650 V | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Pin Header | ||
Pitch 2.54mm | ||
Current 1A | ||
Housing Material Polybutylene Terephthalate | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Orientation Straight | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Through Hole | ||
Contact Plating Tin | ||
Contact Material Brass | ||
Minimum Operating Temperature -65°C | ||
Termination Type Solder | ||
Tail Pin Length 3mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Mating Pin Length 8.5mm | ||
Voltage 650 V | ||
- COO (Country of Origin):
- TW
Extended Headers (8.5mm)
Double row 0.1in. pitch tin plate headers with an upper pin length of 8.5mm. Suitable for various applications including the vertical stacking of PCBs mounted with bottom entry sockets.
2.54mm PCB Connector RS Range
A large variety of connector options, to cover the majority of board-to-board, bussing and programming requirements.
