RS PRO Straight Through Hole Pin Header, 6 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded
- RS 제품 번호:
- 251-8137
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 pack of 25 units)*
₩10,810.00
재고있음
- 추가로 2025년 12월 29일 부터 7,400 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 25 - 350 | ₩432.40 | ₩10,810.00 |
| 375 - 1225 | ₩423.00 | ₩10,565.60 |
| 1250 - 2475 | ₩409.84 | ₩10,264.80 |
| 2500 - 12475 | ₩400.44 | ₩10,020.40 |
| 12500 + | ₩329.00 | ₩8,234.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 251-8137
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Pin Header | |
| Pitch | 2.54mm | |
| Current | 1A | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Contacts | 6 | |
| Number of Rows | 2 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Through Hole | |
| Contact Plating | Tin | |
| Contact Material | Brass | |
| Minimum Operating Temperature | -65°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 150°C | |
| Contact Gender | Male | |
| Tail Pin Length | 3mm | |
| Standards/Approvals | RoHS | |
| Mating Pin Length | 7mm | |
| Voltage | 650 V | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Pin Header | ||
Pitch 2.54mm | ||
Current 1A | ||
Housing Material Polybutylene Terephthalate | ||
Number of Contacts 6 | ||
Number of Rows 2 | ||
Orientation Straight | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Through Hole | ||
Contact Plating Tin | ||
Contact Material Brass | ||
Minimum Operating Temperature -65°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 150°C | ||
Contact Gender Male | ||
Tail Pin Length 3mm | ||
Standards/Approvals RoHS | ||
Mating Pin Length 7mm | ||
Voltage 650 V | ||
- COO (Country of Origin):
- TW

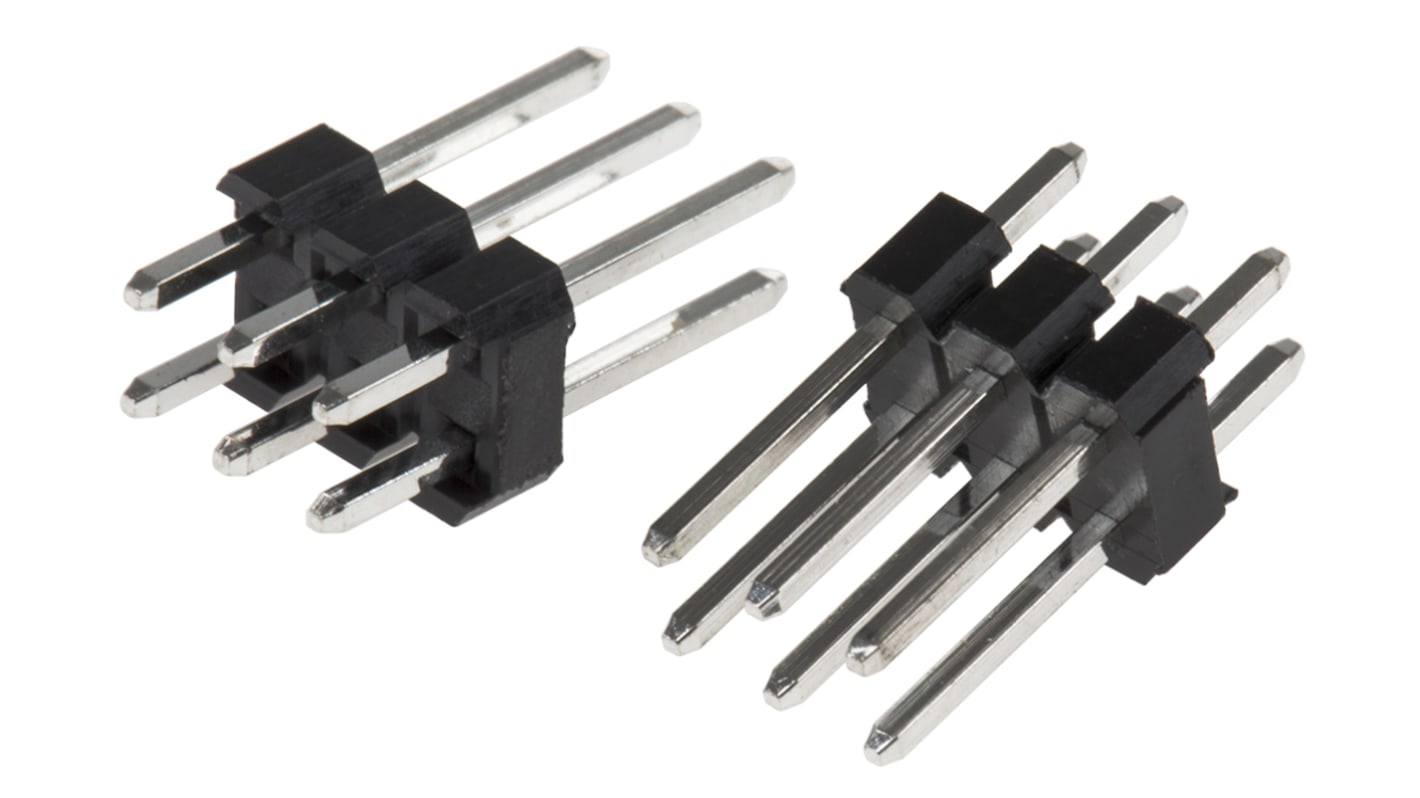

RS PRO, 6 Way, 2 Row, Straight Pin Header
Use this electrical connector from RS PRO to bridge printed circuit boards (PCBs) and transmit signals and current between them. For versatility, you can either use this connector to create board-to-wire setups with an electronic harness terminal or you can use it independently for board-to-board connections.
This connector can be through-hole mounted for a strong mechanical bond, so you can trust that it will stay in place for a long time. It's made from heat-resistant thermoplastic, so it won't be warped or damaged by reflow or soldering. The pin header has contacts made of highly conductive tin-plated brass for reliable electrical conductivity.
A PCB header like this one provides an efficient way to connect boards and wires. The contacts are also easy to remove from PCBs for use on prototypes that need revising.
Features and Benefits
