Panasonic S35 Series Straight Surface PCB Header, 30 Contact(s), 0.35 mm Pitch, 2 Row, Shrouded

RS 제품 번호:: 179-0138
제조사 부품 번호:: AXG230144
제조업체:: Panasonic

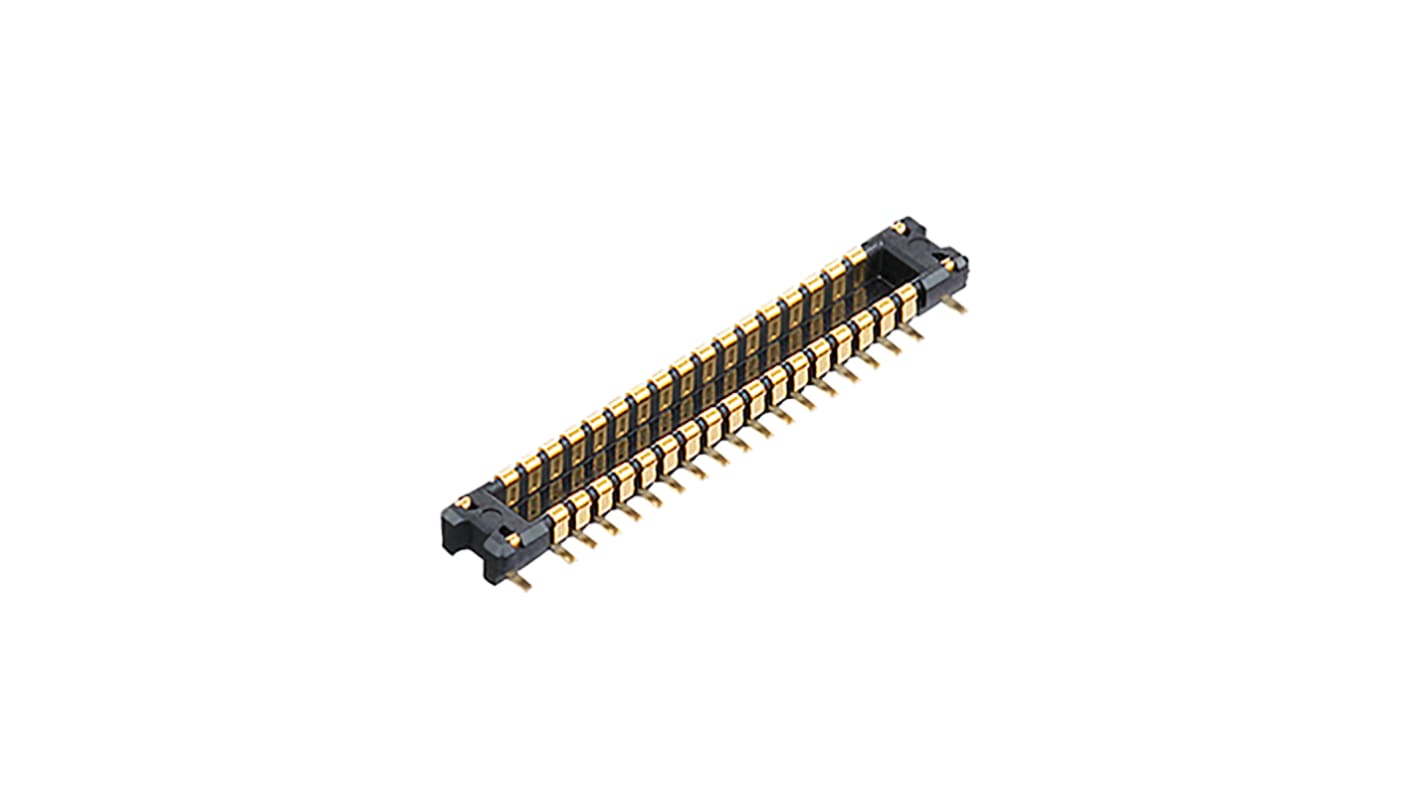

Panasonic S35 Series Straight Surface PCB Header, 30 Contact(s), 0.35 mm Pitch, 2 Row, Shrouded

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

현재 비가용

RS는 이 제품을 더 이상 판매하지 않습니다.

RS 제품 번호:: 179-0138
제조사 부품 번호:: AXG230144
제조업체:: Panasonic

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Panasonic
	Product Type	PCB Header
	Series	S35
	Pitch	0.35mm
	Current	5A
	Number of Contacts	30
	Housing Material	Liquid Crystal Polymer
	Number of Rows	2
	Orientation	Straight
	Shrouded/Unshrouded	Shrouded
	Connector System	Board-to-FPC
	Mount Type	Surface
	Contact Material	Copper Alloy
	Contact Plating	Gold
	Minimum Operating Temperature	-55°C
	Row Pitch	0.35mm
	Termination Type	Solder
	Contact Gender	Male
	Maximum Operating Temperature	85°C
	Standards/Approvals	No
	Voltage	60V

	모두 선택
	브랜드 Panasonic
	Product Type PCB Header
	Series S35
	Pitch 0.35mm
	Current 5A
	Number of Contacts 30
	Housing Material Liquid Crystal Polymer
	Number of Rows 2
	Orientation Straight
	Shrouded/Unshrouded Shrouded
	Connector System Board-to-FPC
	Mount Type Surface
	Contact Material Copper Alloy
	Contact Plating Gold
	Minimum Operating Temperature -55°C
	Row Pitch 0.35mm
	Termination Type Solder
	Contact Gender Male
	Maximum Operating Temperature 85°C
	Standards/Approvals No
	Voltage 60V

Datasheet

COO (Country of Origin):: JP

FEATURES

Slim: width 1.7mm

Low proﬁle construction: mated height 0.6 mm/0.8 mm

“TOUGH CONTACT” construction withstands tough

environments despite being slim and low proﬁle.

For 0.6mm mated height, thanks to our proprietary “Fine

ﬁtting” construction, high removability with a nice click feel

is maintained while being low proﬁle.

APPLICATIONS

Wearable devices, smartphones and hearable devices
