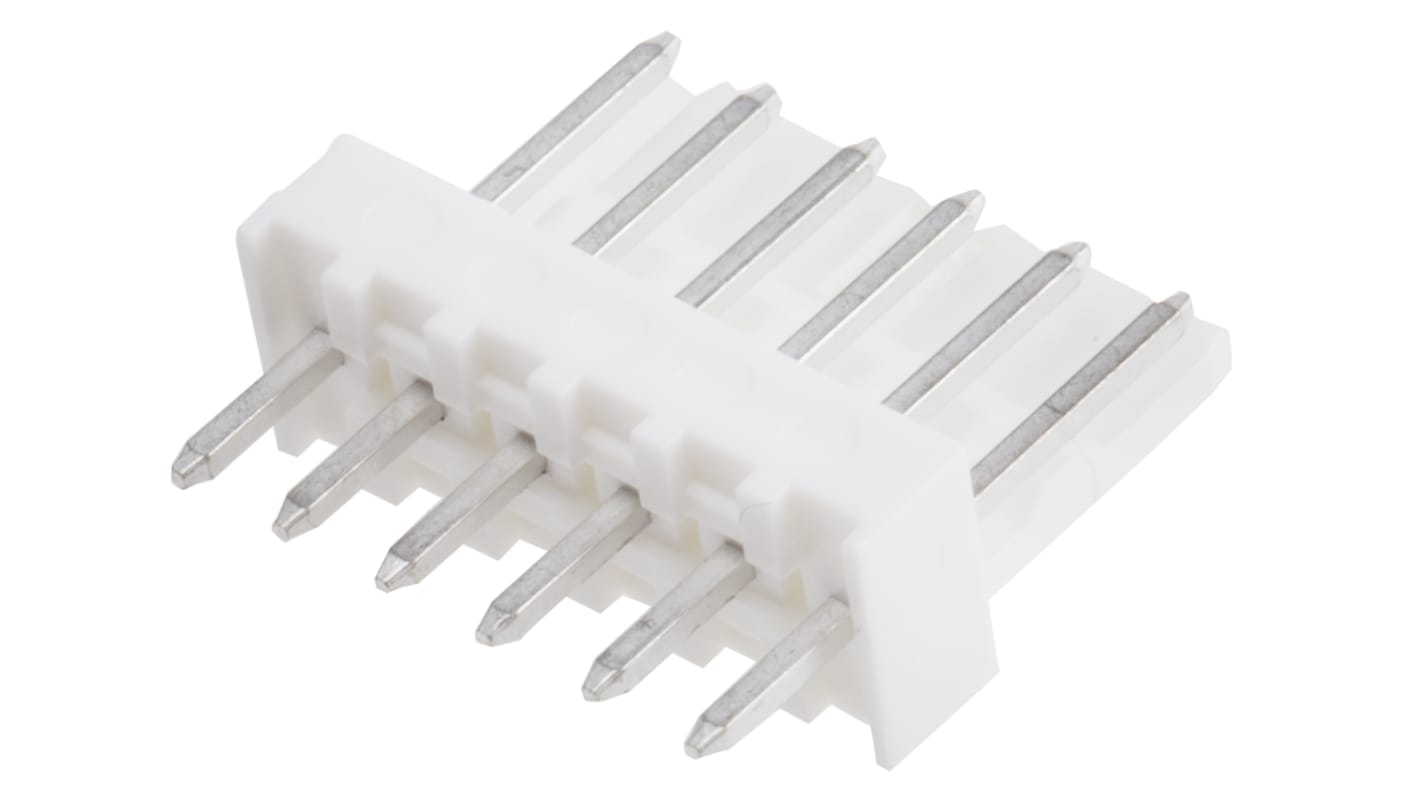

Molex KK 254 Series Straight Through Hole Pin Header, 6 Contact(s), 2.54 mm Pitch, 1 Row, Unshrouded

RS 제품 번호:: 170-7105
제조사 부품 번호:: 22-27-2061
제조업체:: Molex

Molex KK 254 Series Straight Through Hole Pin Header, 6 Contact(s), 2.54 mm Pitch, 1 Row, Unshrouded

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 Bag of 5000 units)*

₩2,961,000.00

재고있음

추가로 2025년 12월 29일 부터 15,000 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Bag*
5000 - 5000	₩592.20	₩2,961,000.00
10000 - 15000	₩575.28	₩2,872,640.00
20000 +	₩556.48	₩2,786,160.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 170-7105
제조사 부품 번호:: 22-27-2061
제조업체:: Molex

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Molex
	Series	KK 254
	Product Type	Pin Header
	Current	4A
	Pitch	2.54mm
	Number of Contacts	6
	Housing Material	Nylon
	Number of Rows	1
	Orientation	Straight
	Shrouded/Unshrouded	Unshrouded
	Mount Type	Through Hole
	Connector System	Wire-to-Board
	Contact Plating	Tin
	Contact Material	Brass
	Termination Type	Solder
	Minimum Operating Temperature	-40°C
	Row Pitch	2.54mm
	Maximum Operating Temperature	105°C
	Tail Pin Length	3.56mm
	Contact Gender	Male
	Standards/Approvals	No
	Mating Pin Length	2.54mm
	Voltage	250 V

	모두 선택
	브랜드 Molex
	Series KK 254
	Product Type Pin Header
	Current 4A
	Pitch 2.54mm
	Number of Contacts 6
	Housing Material Nylon
	Number of Rows 1
	Orientation Straight
	Shrouded/Unshrouded Unshrouded
	Mount Type Through Hole
	Connector System Wire-to-Board
	Contact Plating Tin
	Contact Material Brass
	Termination Type Solder
	Minimum Operating Temperature -40°C
	Row Pitch 2.54mm
	Maximum Operating Temperature 105°C
	Tail Pin Length 3.56mm
	Contact Gender Male
	Standards/Approvals No
	Mating Pin Length 2.54mm
	Voltage 250 V

COO (Country of Origin):: IE

Molex Pin Header, Through-Hole Termination, Partially Shrouded - 6410 Series - 22-27-2061

Looking for a simple way to lock down your PCB's components? Choose this pin header from Molex. It clips accurately onto corresponding parts from the KK series to streamline your circuit design. A friction-locking design ensures the mated parts click firmly together to achieve strong and stable connections even in vibrating conditions. You can use this header to streamline your setup by connecting up to six elements with one part.

Features & Benefits

• Brass contacts resist wear and tear for long-lasting use

• Nylon housing withstands extreme temperatures up to +75°C

• Light 0.709g weight adds minimal strain to your PCB, so it's ideal for sensitive setups

Applications

• Electronics devices

• Signalling networks

• Telecommunication systems

What electrical source can I use with this pin header?

This header supports voltages up to 250V, so you can use it in devices powered by an AC mains supply.

Molex KK 2.54mm Pitch PCB Headers with Straight Friction Lock, 6410 Series

Molex KK 254 PCB wire to board vertical headers with a straight friction lock to ensure secure retention when mated making them ideal for use in high vibration environments. The housings of these KK 2.54mm wire to board PCB header connectors are made from red UL 94V-0 nylon and the contacts are tin plated brass. These KK 6410 series 2.54mm headers mate with 2695 and 6471 series crimp terminal housings with locking ramps and 7880 series high pressure housings.

Approvals

UL (E29179) and CSA (LR 19980)
