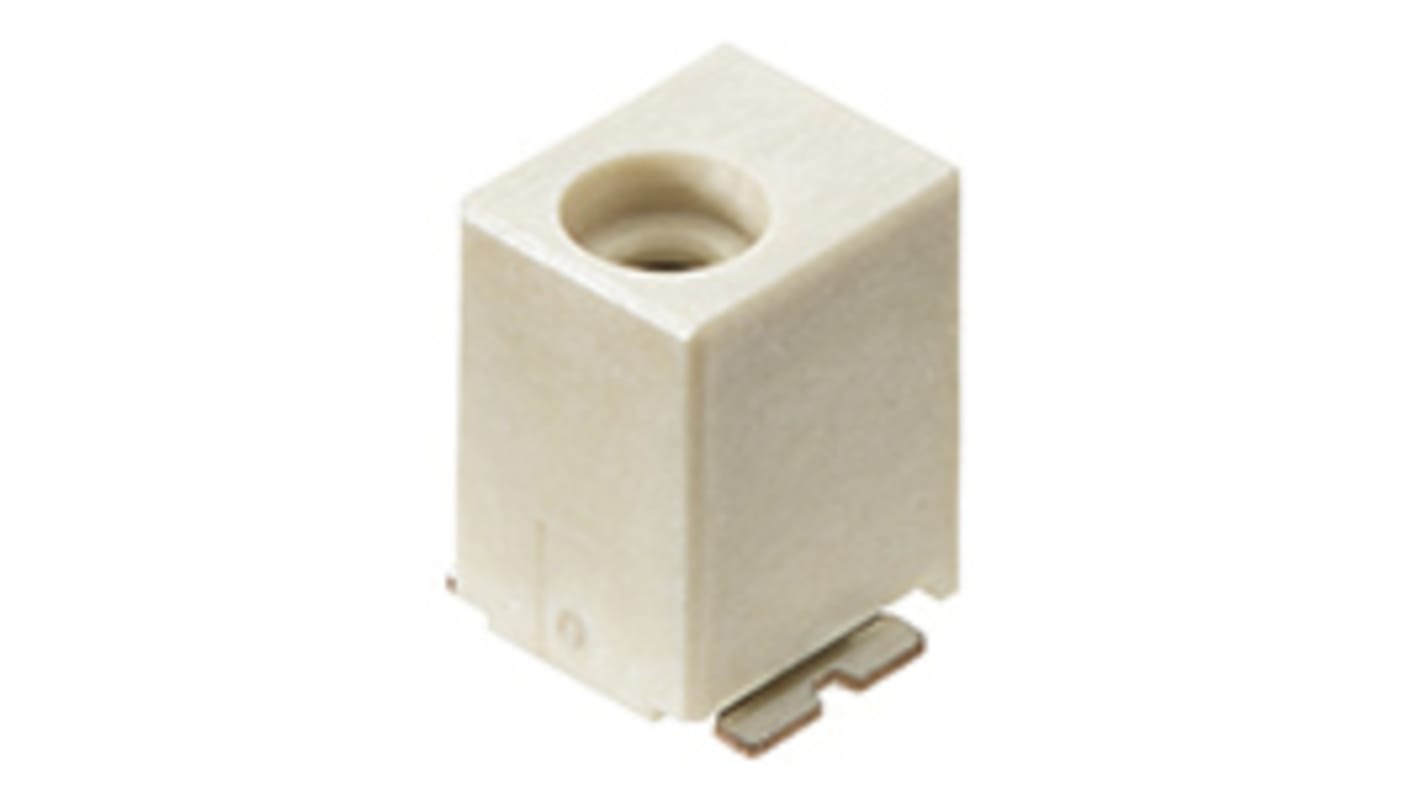

Molex Lite-Trap Series Straight Surface PCB Header, 1 Contact(s), 1 Row, Shrouded
- RS 제품 번호:
- 162-3693
- 제조사 부품 번호:
- 202394-0110
- 제조업체:
- Molex
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 162-3693
- 제조사 부품 번호:
- 202394-0110
- 제조업체:
- Molex
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Molex | |
| Series | Lite-Trap | |
| Product Type | PCB Header | |
| Current | 3A | |
| Number of Contacts | 1 | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Surface | |
| Connector System | Wire-to-Board | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Tin | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Voltage | 431V | |
| 모두 선택 | ||
|---|---|---|
브랜드 Molex | ||
Series Lite-Trap | ||
Product Type PCB Header | ||
Current 3A | ||
Number of Contacts 1 | ||
Housing Material Liquid Crystal Polymer | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Surface | ||
Connector System Wire-to-Board | ||
Contact Material Phosphor Bronze | ||
Contact Plating Tin | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Voltage 431V | ||
- COO (Country of Origin):
- KR
Ideal for thin LED lighting-module applications, Molex’s Lite-Trap SMT wire-to-board connectors offer easy wire removability and low-profile top-and-bottom entry styles for reduced shadowing
Low-profile top-and-bottom entry styles
User-friendly push-button latch
Low wire insertion and high wire retention forces
Long wire insulation design
Compact industry-standard PCB pattern layout
Wire stopper feature
Dual-contact gate-style Terminal design
Provide reduced shadowing effects for LED applications
Ensures easy wire extraction
Enables easy wire insertion: provides secure contact retention
Provides stable wire placement for additional contact assurance
Saves space and is drop-in compatible with certain competitive products
Facilitates correct wire insertion depth placement
Provides secure electrical contact and high wire-retention force
