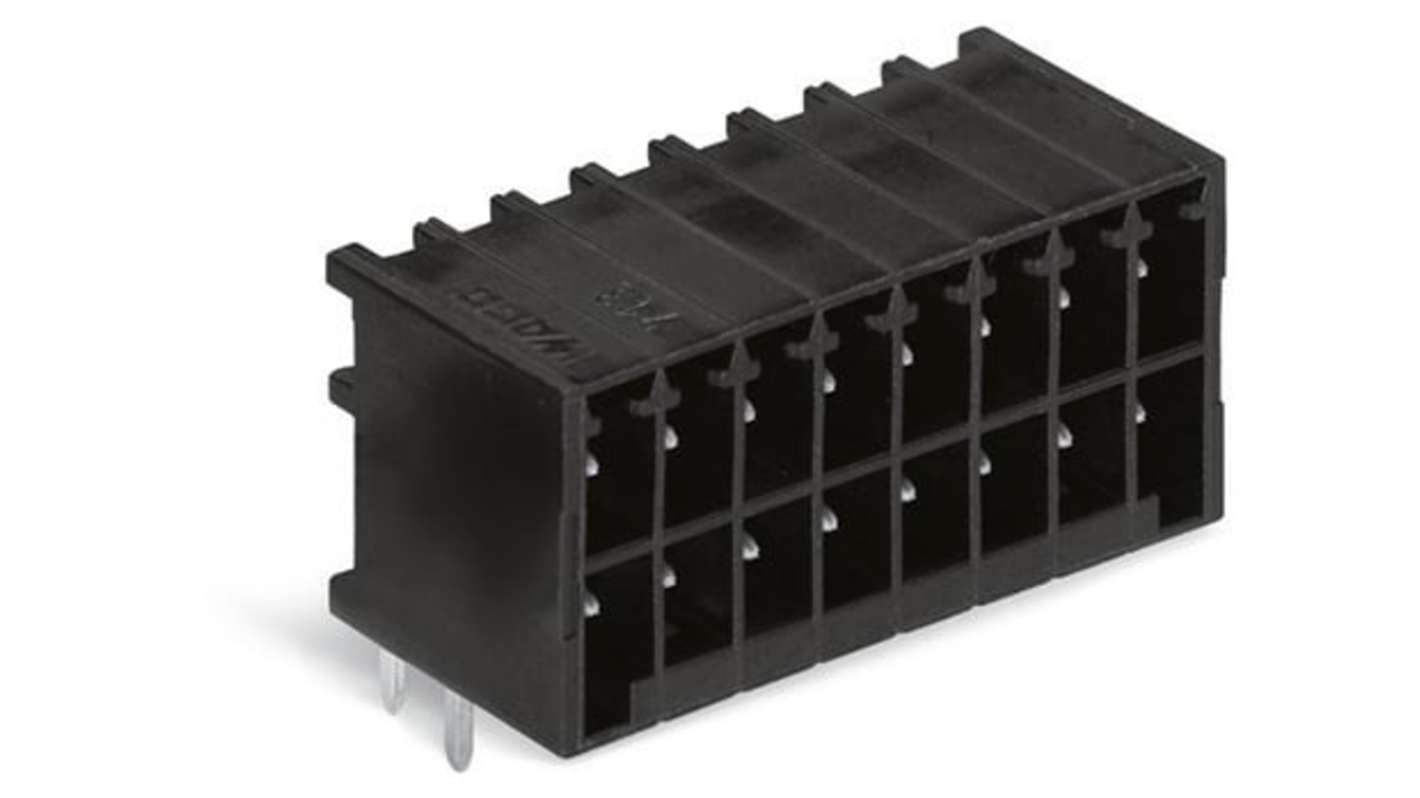

WAGO 713 Series Angled Through Hole Header, 14 Contact(s), 3.5 mm Pitch, 2 Row, Shrouded
- RS 제품 번호:
- 224-612
- 제조사 부품 번호:
- 713-1427
- 제조업체:
- WAGO
Subtotal (1 Box of 50 units)*
₩774,358.84
일시적 품절
- 2026년 2월 13일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Box(es) | Per Box | 한팩당* |
|---|---|---|
| 1 + | ₩774,358.84 | ₩15,487.44 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 224-612
- 제조사 부품 번호:
- 713-1427
- 제조업체:
- WAGO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | WAGO | |
| Product Type | Header | |
| Series | 713 | |
| Current | 10A | |
| Pitch | 3.5mm | |
| Number of Contacts | 14 | |
| Housing Material | Polyphthalamide | |
| Number of Rows | 2 | |
| Orientation | Angled | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | MCS | |
| Contact Material | Electrolytic Copper | |
| Contact Plating | Tin | |
| Row Pitch | 3.5mm | |
| Minimum Operating Temperature | 60°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.8mm | |
| Contact Gender | Male | |
| Standards/Approvals | RoHS | |
| Voltage | 25 V | |
| 모두 선택 | ||
|---|---|---|
브랜드 WAGO | ||
Product Type Header | ||
Series 713 | ||
Current 10A | ||
Pitch 3.5mm | ||
Number of Contacts 14 | ||
Housing Material Polyphthalamide | ||
Number of Rows 2 | ||
Orientation Angled | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System MCS | ||
Contact Material Electrolytic Copper | ||
Contact Plating Tin | ||
Row Pitch 3.5mm | ||
Minimum Operating Temperature 60°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.8mm | ||
Contact Gender Male | ||
Standards/Approvals RoHS | ||
Voltage 25 V | ||
- COO (Country of Origin):
- PL
The Wago THT Male Header offers a robust and reliable solution for multi connection systems. Designed with precision engineering, it features a 14 pole configuration and is crafted from THT compatible materials, ensuring optimal performance in various applications. The connector's angled design not only enhances usability but also guarantees 100% protection against mismating, thereby fostering secure connections.
Offers a coding option to enhance connection versatility
Constructed with a flammability class of V0 for enhanced safety
Compatible with a wide range of female connectors for flexible use
Compliant with RoHS regulations ensuring environmental safety
