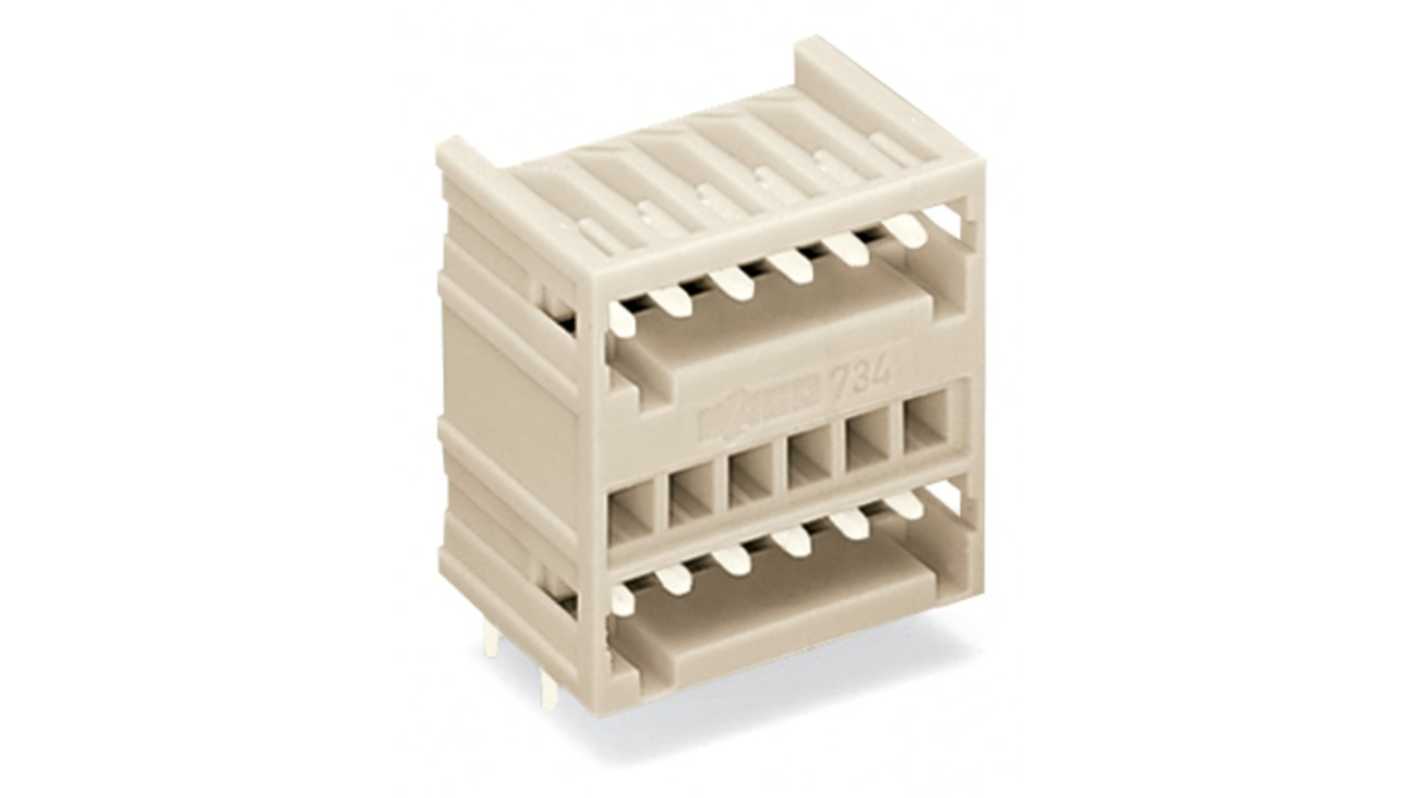

WAGO 734 Series Angled PCB Header, 10 Contact(s), 3.5 mm Pitch, 2 Row, Unshrouded
- RS 제품 번호:
- 223-747
- 제조사 부품 번호:
- 734-405
- 제조업체:
- WAGO
Subtotal (1 Box of 100 units)*
₩682,270.80
일시적 품절
- 2026년 5월 18일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Box(es) | Per Box | 한팩당* |
|---|---|---|
| 1 + | ₩682,270.80 | ₩6,822.52 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 223-747
- 제조사 부품 번호:
- 734-405
- 제조업체:
- WAGO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | WAGO | |
| Product Type | Header | |
| Series | 734 | |
| Pitch | 3.5mm | |
| Current | 10A | |
| Number of Contacts | 10 | |
| Housing Material | Polyamide 66 | |
| Number of Rows | 2 | |
| Orientation | Angled | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | MCS | |
| Mount Type | PCB | |
| Contact Material | Electrolytic Copper | |
| Contact Plating | Tin | |
| Minimum Operating Temperature | 60°C | |
| Row Pitch | 3.5mm | |
| Termination Type | Solder | |
| Tail Pin Length | 3.6mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 WAGO | ||
Product Type Header | ||
Series 734 | ||
Pitch 3.5mm | ||
Current 10A | ||
Number of Contacts 10 | ||
Housing Material Polyamide 66 | ||
Number of Rows 2 | ||
Orientation Angled | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System MCS | ||
Mount Type PCB | ||
Contact Material Electrolytic Copper | ||
Contact Plating Tin | ||
Minimum Operating Temperature 60°C | ||
Row Pitch 3.5mm | ||
Termination Type Solder | ||
Tail Pin Length 3.6mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE
The Wago THT Double Deck Male Header is designed for efficient PCB connectivity, offering a robust solution for high density applications. With a unique angled structure and innovative design, it ensures complete protection against mismating, making it an ideal choice for reliable connections in various settings. The combination of gold plated contact surfaces and polyamide insulation enhances both performance and durability, meeting the rigorous standards of the Multi Connection System.
Unique flammability rating of V0 provides added safety assurance
Complies with RoHS regulations ensuring environmental responsibility
Designed for both straight and angled solder pins to fit diverse applications
Each connector offers exceptional mating protection preventing user errors
Constructed from high quality materials for prolonged operational life
