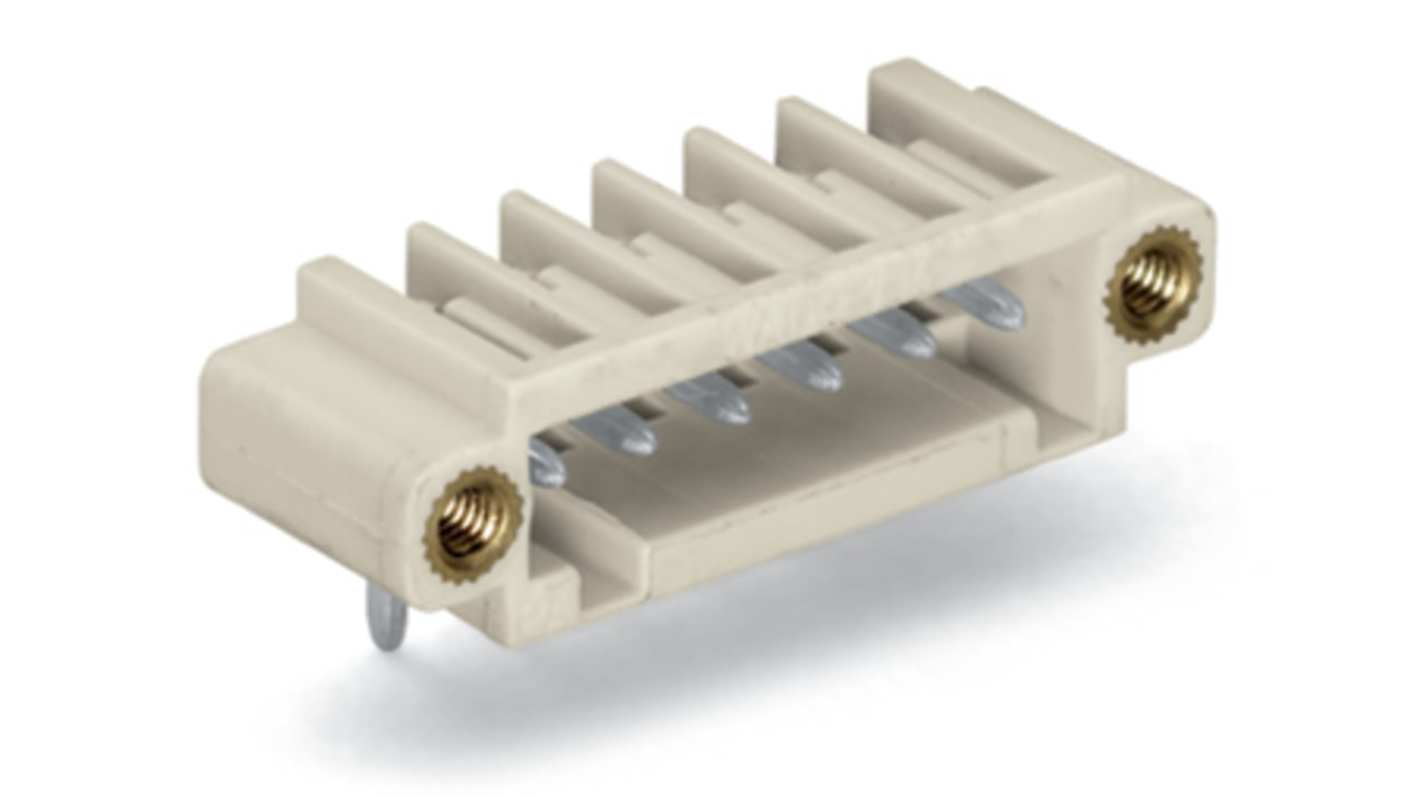

WAGO 734 Series Angled Through Hole Header, 12 Contact(s), 3.5 mm Pitch, 1 Row, Shrouded
- RS 제품 번호:
- 222-416
- 제조사 부품 번호:
- 734-172/108-000
- 제조업체:
- WAGO
Subtotal (1 Box of 100 units)*
₩809,772.40
일시적 품절
- 2026년 3월 18일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Box(es) | Per Box | 한팩당* |
|---|---|---|
| 1 + | ₩809,772.40 | ₩8,097.16 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 222-416
- 제조사 부품 번호:
- 734-172/108-000
- 제조업체:
- WAGO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | WAGO | |
| Product Type | Header | |
| Series | 734 | |
| Pitch | 3.5mm | |
| Current | 10A | |
| Number of Contacts | 12 | |
| Housing Material | Polyamide 66 | |
| Number of Rows | 1 | |
| Orientation | Angled | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | MCS | |
| Mount Type | Through Hole | |
| Contact Material | Electrolytic Copper | |
| Contact Plating | Tin | |
| Row Pitch | 3.5mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 60°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.8mm | |
| Mating Pin Length | 3.8mm | |
| Standards/Approvals | RoHS | |
| Voltage | 320 V | |
| 모두 선택 | ||
|---|---|---|
브랜드 WAGO | ||
Product Type Header | ||
Series 734 | ||
Pitch 3.5mm | ||
Current 10A | ||
Number of Contacts 12 | ||
Housing Material Polyamide 66 | ||
Number of Rows 1 | ||
Orientation Angled | ||
Shrouded/Unshrouded Shrouded | ||
Connector System MCS | ||
Mount Type Through Hole | ||
Contact Material Electrolytic Copper | ||
Contact Plating Tin | ||
Row Pitch 3.5mm | ||
Termination Type Solder | ||
Minimum Operating Temperature 60°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.8mm | ||
Mating Pin Length 3.8mm | ||
Standards/Approvals RoHS | ||
Voltage 320 V | ||
- COO (Country of Origin):
- DE
The Wago THT Male Header connector is designed for precision and reliability, making it an essential component in various electronic applications. The connector boasts a sophisticated design with a 12 pole configuration and a pin spacing of 3.5 mm for seamless integration into your circuit boards. With a robust construction that ensures a high degree of protection against mismating, it guarantees secure and efficient connections. The inclusion of angled solder pins allows for both horizontal and vertical PCB mounting options.
Coding options available for enhanced configuration
Constructed with high quality materials for durability and longevity
Approvals meet international safety standards reinforcing reliability
Solder pin dimensions are tailored for optimal performance in electronic applications
Light grey colour provides a neutral aesthetic suitable for various devices
