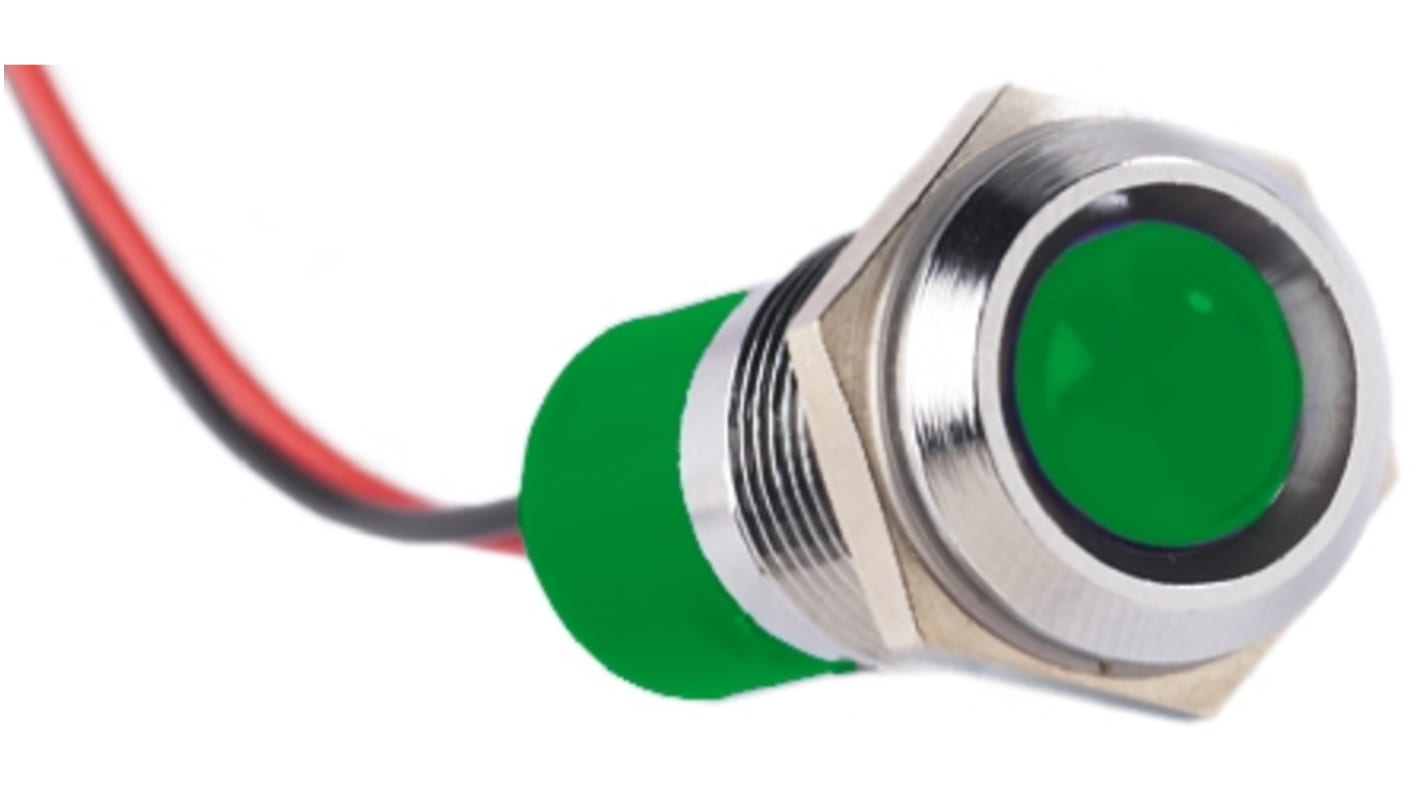

RS PRO Green Panel Mount Indicator, 12V dc, 14mm Mounting Hole Size, Lead Wires Termination, IP67

모든 Panel Mount Indicators 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩21,638.80

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 1월 12일 부터 56 개 단위 배송
  • 추가로 2026년 2월 02일 부터 100 개 단위 배송
  • 추가로 2026년 4월 27일 부터 184 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 24₩21,638.80
25 - 49₩20,999.60
50 - 99₩20,322.80
100 - 499₩19,946.80
500 +₩16,412.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
722-7384
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Voltage Rating

12V dc

Light Output Colour

Green

Mounting Hole Size

14mm

Lamp Type

LED

Termination Type

Lead Wires

IP Rating

IP67

Bezel Style

Prominent

Bezel Colour

Chrome

Current Rating

20mA

Intensity

40mcd

Length

28.8mm

COO (Country of Origin):
GB

LED Indicators, 14mm Mount, 12 & 24Vdc, Wires


Brought to you under the trusted RS Brand, these LED’s are designed for panel mount applications. Boasting a high level of ingress protection, they are suitable for most environments, including outdoor applications. These LED indicators also have a wide operating temperature range of between -40 to +85 °C, further increasing the potential applications they may be used for. These 10mm LED’s require a 14mm panel cut-out and are supplied with a fixing nut and spring washer. The range offers a wide selection of voltage ratings, bezel finishes and bezel styles.

Features and Benefits:


• 14mm panel mounting LED indicator
• 10mm coloured diffused epoxy lens or 10mm water clear super bright LEDs
• Bright chrome, black chrome or satin grey bezel finish
• Prominent and flush bezel styles
• 12 to 24 Vdc
• Sealed to IP67
• Supplied with fixing nut and spring washer
• Max reverse voltage: 5 V
• Viewing angle: up to 100°
• Life expectancy: 100,000 hours
• Operating temperature range: -40 to +85 °C

Standards

UL Recognised

Approvals

UL

Supplied with

Fixing nut and spring washer
