RS PRO Q30 Series Indicator, Yellow Panel Mount Indicator, Wire Termination 24V ac/dc, IP67, IP69K, 30 mm

모든 Panel Mount Indicators 열람하기

Subtotal (1 unit)*

₩214,320.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 4월 13일 부터 15 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩214,320.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
253-8522
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Product Type

Panel Mount Indicator

Maximum Forward Current

30mA

Sub Type

Indicator

LED Colour

Yellow

Terminal Type

Wire

IP Rating

IP67, IP69K

Mount Hole Size

30 mm

Minimum Supply Voltage

12V

Viewing Angle

60 °

Maximum Supply Voltage

24V ac/dc

Input Voltage Type

AC/DC

Multicolour/Single Colour

Single Colour

Luminous Intensity

3800mcd

Standards/Approvals

UL Declarations, EN60529

Length

41.5mm

Series

Q30

Lens Finish

Coloured Fresnel

COO (Country of Origin):
GB

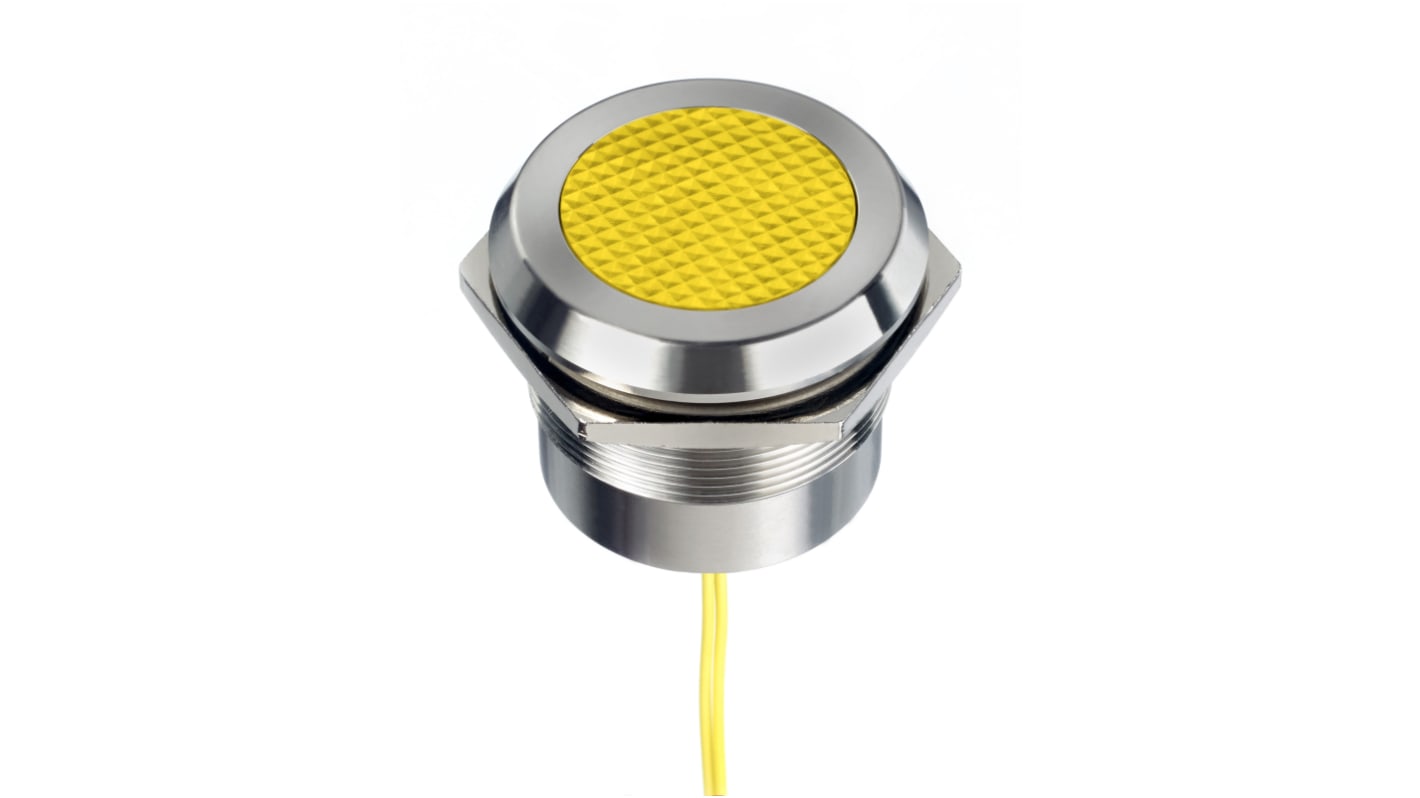

The RS Pro Q25 series panel mount LED indicator which have 30 mm mounting hole and it is yellow in coloured. The voltage rating of this panel mount LED indicator is 12 to 24 Vac/dc and the panel sealing tested to IP67 and IP69K. The operating temperature of this indicator is -40 °C to +85 °C and storage temperature of this indicator is 40 °C to +100 °C. It has 30 mA current consumption and its over voltage protection activates at 36 V. This panel mount LED indicator have stainless steel 316L body, PC lens, nitrile O-ring and mounting torque of 75 cNm or 0.75 Nm.

23.2 mm colored Fresnel lens and 200 mm long wire terminations

Life expectancy are 100,000 hour

Insulation resistance is 4,000 MΩ at 500 VDC

Rear epoxy sealed
