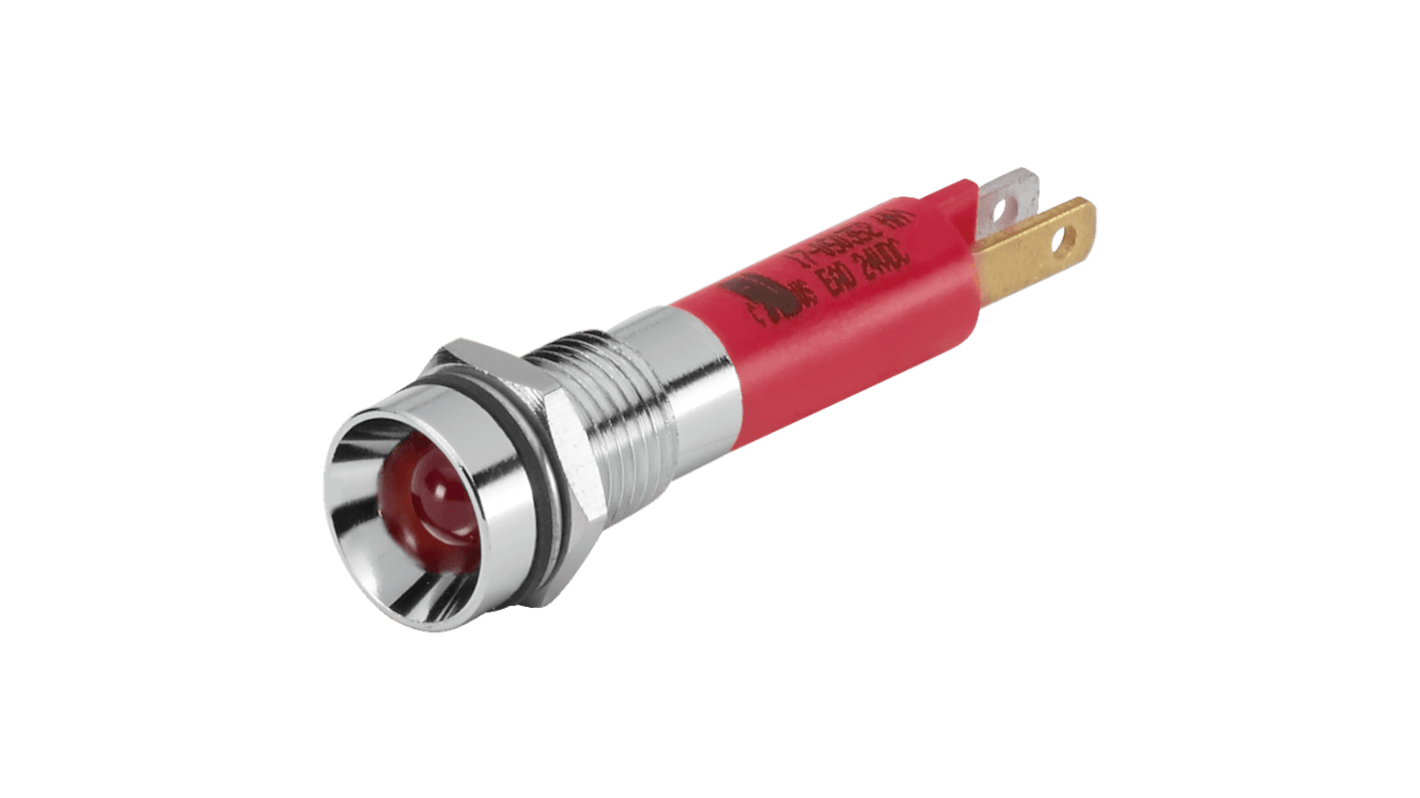

EAO 17-05 Series Indicator, Red Panel Mount Indicator, Plug-In Termination 24V ac 19 mA, IP40, IP65, 8
- RS 제품 번호:
- 442-512
- 제조사 부품 번호:
- 17-050360
- 제조업체:
- EAO
Subtotal (1 unit)*
₩11,961.30
재고있음
- 39 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩11,961.30 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 442-512
- 제조사 부품 번호:
- 17-050360
- 제조업체:
- EAO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | EAO | |
| Product Type | Panel Mount Indicator | |
| Lens Colour | Red | |
| Number of LEDs | 1 | |
| Maximum Forward Current | 19mA | |
| Sub Type | Indicator | |
| Terminal Type | Plug-In | |
| LED Colour | Red | |
| IP Rating | IP40, IP65 | |
| Mount Hole Size | 8 | |
| Maximum Supply Voltage | 24V ac | |
| Multicolour/Single Colour | Single Colour | |
| Input Voltage Type | AC | |
| Luminous Intensity | 76mcd | |
| Standards/Approvals | UL 2011 / 65 / EC (RoHS), REACH, IEC 60529, 2014 / 35 / EU (230 VAC), RoHS | |
| Length | 41mm | |
| Series | 17-05 | |
| 모두 선택 | ||
|---|---|---|
브랜드 EAO | ||
Product Type Panel Mount Indicator | ||
Lens Colour Red | ||
Number of LEDs 1 | ||
Maximum Forward Current 19mA | ||
Sub Type Indicator | ||
Terminal Type Plug-In | ||
LED Colour Red | ||
IP Rating IP40, IP65 | ||
Mount Hole Size 8 | ||
Maximum Supply Voltage 24V ac | ||
Multicolour/Single Colour Single Colour | ||
Input Voltage Type AC | ||
Luminous Intensity 76mcd | ||
Standards/Approvals UL 2011 / 65 / EC (RoHS), REACH, IEC 60529, 2014 / 35 / EU (230 VAC), RoHS | ||
Length 41mm | ||
Series 17-05 | ||
- COO (Country of Origin):
- CH
The EAO Indicator light is expertly designed to enhance visual communication in various applications. With a stylish round shape and a polished chromium-plated reflector, it exudes quality and professionalism. The compact size ensures easy integration into panel-mounted settings, making it a versatile choice for both commercial and industrial use. Its vibrant red illumination provides clear signalling, ensuring that it captures attention when it matters most. Built with durability in mind, this indicator is IP40 and IP65 rated, offering reliable performance in demanding environments. The meticulous construction includes brass connectors for optimal conductivity and a robust mounting system tailored for easy installation.
Features a metal reflector that enhances durability and light dispersion
Designed for seamless panel mounting with a precise cut-out of 8 mm
Operates efficiently under varying conditions with a voltage range of 24 V AC ±10 %. .Utilises a single-LED configuration to deliver an intense illumination output
Packaging includes essential connectors, ensuring quick and reliable assembly
Rated for operation in temperature extremes from –20 °C to +60 °C
Exceeds industry standards for IP protection to secure performance against dust and water ingress
