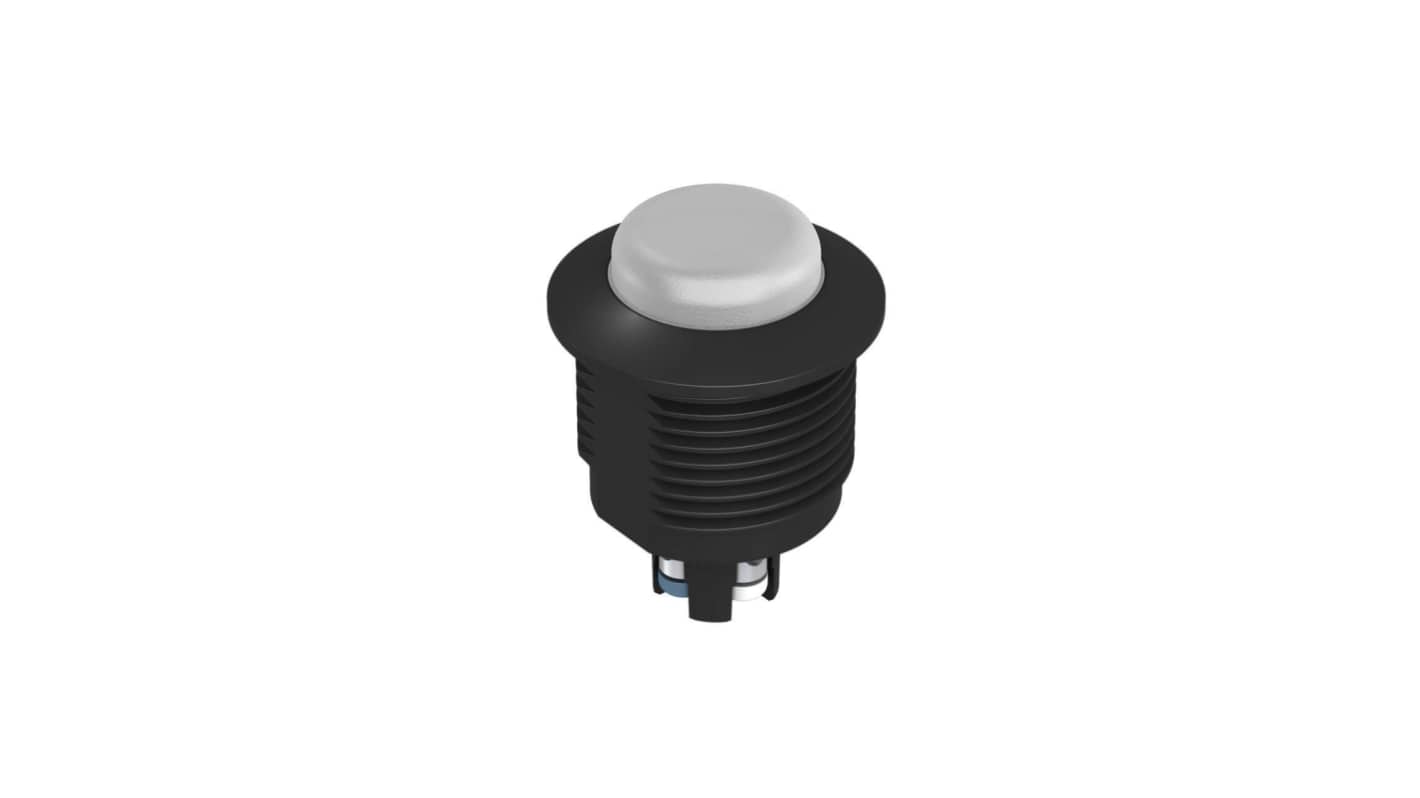

Banner S22 Series Panel Mount LED Indicator, Blue Panel Mount Indicator 30V dc, IP67, IP69K, 22 mm

모든 Panel Mount Indicators 열람하기

Subtotal (1 unit)*

₩69,005.40

Add to Basket
수량 선택 또는 입력
제조사가 재고 비축중
  • 2026년 7월 08일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩69,005.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
294-125
제조사 부품 번호:
S22LBXXPT
제조업체:
Banner
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Banner

Lens Colour

Clear

Product Type

Panel Mount Indicator

Number of LEDs

1

Maximum Forward Current

25mA

Sub Type

Panel Mount LED Indicator

LED Colour

Blue

IP Rating

IP67, IP69K

Mount Hole Size

22 mm

Minimum Supply Voltage

1V

Viewing Angle

180 °

Maximum Supply Voltage

30V dc

Multicolour/Single Colour

Single Colour

Input Voltage Type

DC

Standards/Approvals

UL Type 4X, IEC IP69K per DIN 40050-9, UL Type 13

Length

150mm

Series

S22

Lens Finish

Translucent

COO (Country of Origin):
CN
The Banner Indicator features a sleek design and multi-colour functionality, making it an ideal choice for a range of applications. The product is designed to enhance visibility and clarity, ensuring that real-time performance indicators are easily identifiable even in challenging environments. With an IP69K rating, it is built to withstand the rigours of harsh wash-down settings, making it suitable for industries that require robust and reliable signalling solutions.

Offers up to three independent colours in a single unit

Translucent face appears neutral when off eliminating false indications

Available with versatile M12 Euro connector for quick installation

Provides a wide 180° viewing angle for optimal visibility

Operates effectively from 10 V DC to 30 V DC for varied applications

Complies with IP69K standards for durability in wash down environments

Functions reliably in temperatures ranging from 40 °C to +50 °C

Equipped with daylight visible options for high ambient light conditions
