제조사부품번호

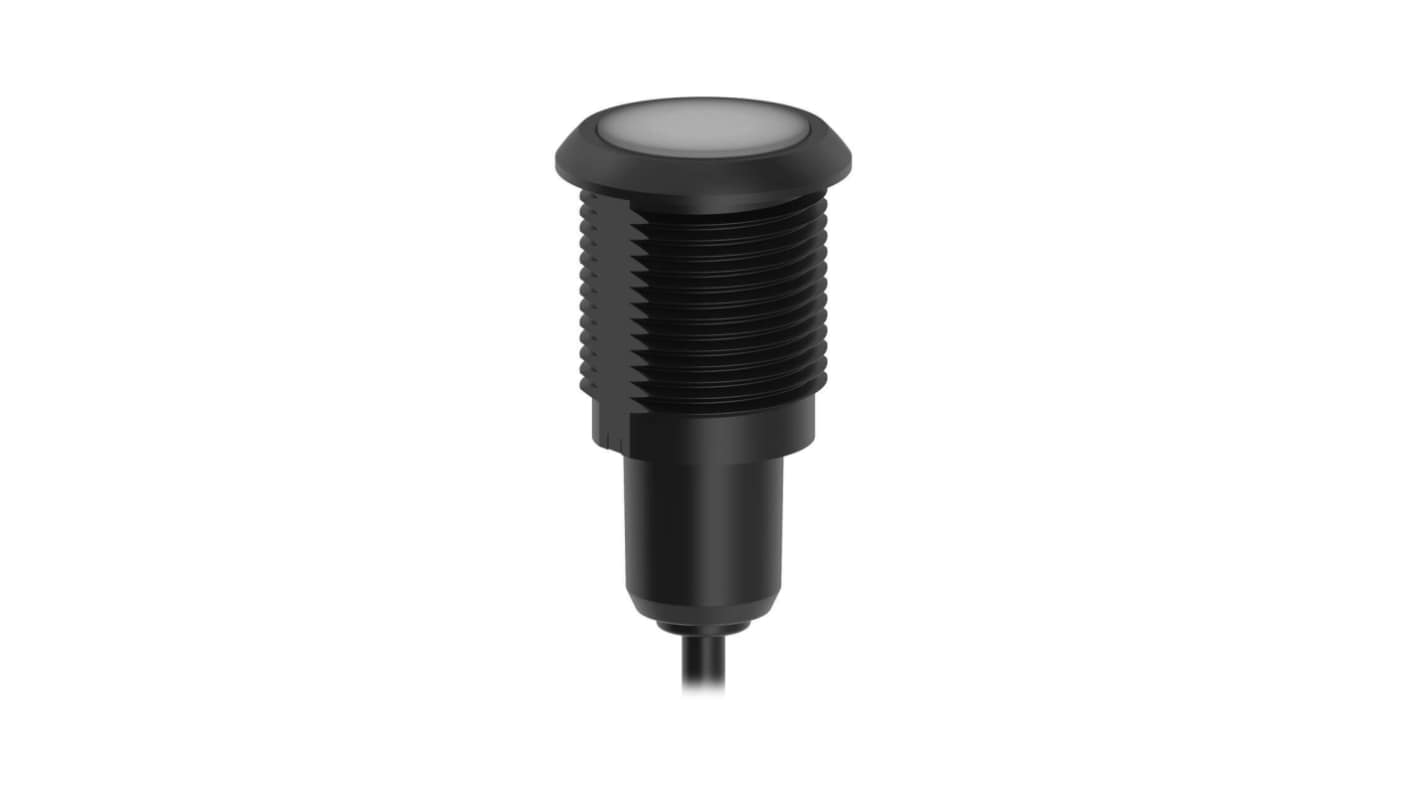

Banner S22 Series Panel Mount LED Indicator, Cyan, Yellow, Amber, Sky Blue, Green, Blue, White, Rose, Magenta, Orange,

RS 제품 번호:: 294-119
제조사 부품 번호:: S22L2SRGB14
제조업체:: Banner

Banner S22 Series Panel Mount LED Indicator, Cyan, Yellow, Amber, Sky Blue, Green, Blue, White, Rose, Magenta, Orange,

Subtotal (1 unit)*

₩124,840.95

제조사가 재고 비축중

2026년 7월 06일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩124,840.95

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 294-119
제조사 부품 번호:: S22L2SRGB14
제조업체:: Banner

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Banner
	Product Type	Panel Mount Indicator
	Number of LEDs	16
	Maximum Forward Current	70mA
	Sub Type	Panel Mount LED Indicator
	LED Colour	Cyan, Yellow, Amber, Sky Blue, Green, Blue, White, Rose, Magenta, Orange, Lime Green, Red, Violet
	Terminal Type	Female Connector
	IP Rating	IP67, IP69K, IP66
	Mount Hole Size	22 mm
	Minimum Supply Voltage	1V
	Viewing Angle	180 °
	Maximum Supply Voltage	30V dc
	Input Voltage Type	DC
	Multicolour/Single Colour	Multicolour
	Standards/Approvals	UL Type 4X, UL Type 13, IEC IP69K per DIN 40050-9
	Length	150mm
	Series	S22
	Lens Finish	Translucent

	모두 선택
	브랜드 Banner
	Product Type Panel Mount Indicator
	Number of LEDs 16
	Maximum Forward Current 70mA
	Sub Type Panel Mount LED Indicator
	LED Colour Cyan, Yellow, Amber, Sky Blue, Green, Blue, White, Rose, Magenta, Orange, Lime Green, Red, Violet
	Terminal Type Female Connector
	IP Rating IP67, IP69K, IP66
	Mount Hole Size 22 mm
	Minimum Supply Voltage 1V
	Viewing Angle 180 °
	Maximum Supply Voltage 30V dc
	Input Voltage Type DC
	Multicolour/Single Colour Multicolour
	Standards/Approvals UL Type 4X, UL Type 13, IEC IP69K per DIN 40050-9
	Length 150mm
	Series S22
	Lens Finish Translucent

Datasheet - S22L2SRGB14

COO (Country of Origin):: US

The Banner Indicator is an innovative and versatile lighting solution designed for both industrial and commercial applications. This 22 mm flush mount indicator is capable of displaying up to fourteen vibrant colours, seamlessly controlled via the Banner Pro Editor software. Built with rugged precision, it offers robust environmental protection with an IP rating of IP66, IP67, and IP69K, ensuring reliability even in the harshest conditions.

Flexible installation options with various connector configurations and terminal connections to suit different panel setups

Low power consumption with maximum current ratings that cater to a wide voltage range for efficiency

Banner S22 Series Panel Mount LED Indicator, Cyan, Yellow, Amber, Sky Blue, Green, Blue, White, Rose, Magenta, Orange,
