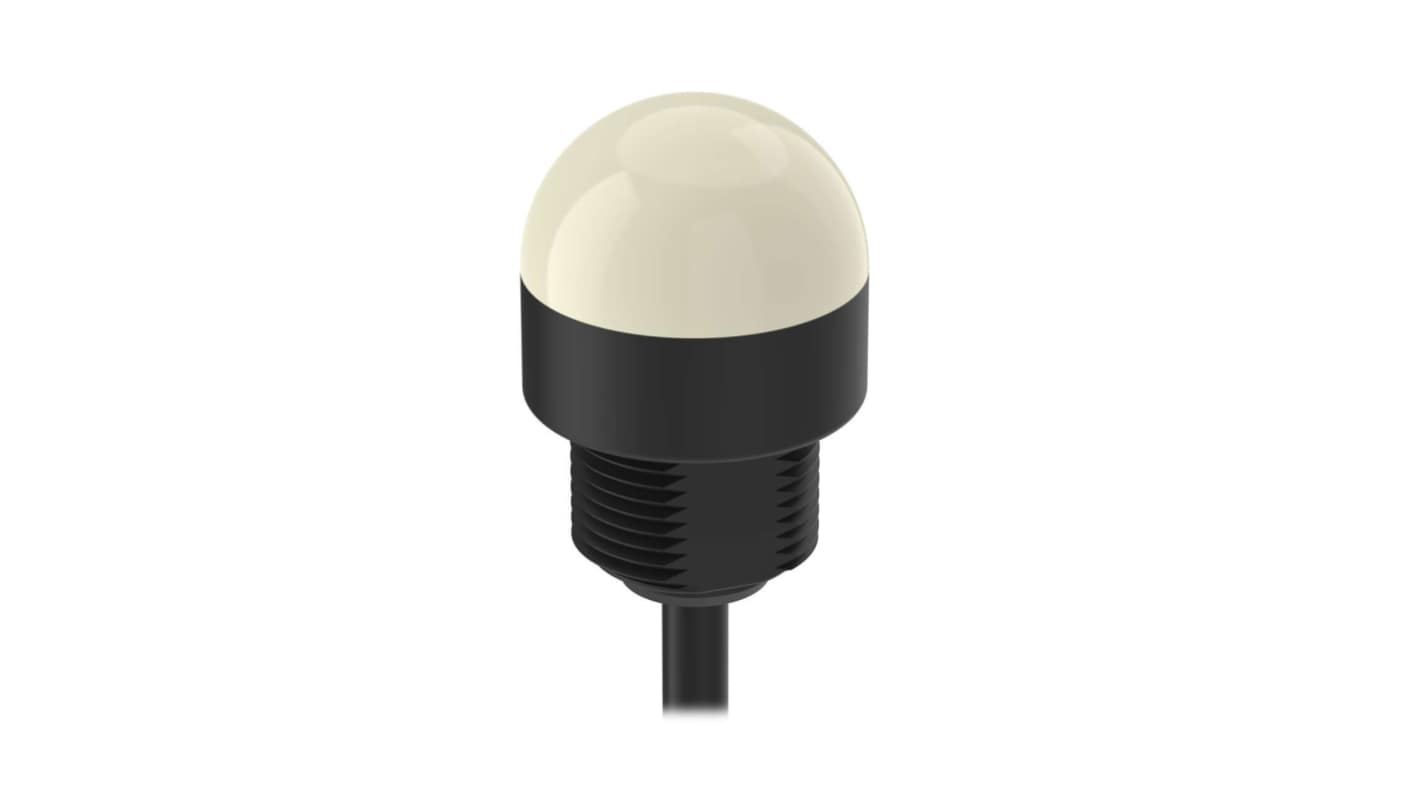

Banner K30L Series Blue, Green, Red Indicator M22 By 1.5 Threaded Base, 10V dc, 30 V dc, 60mA, M12 4-Pin Connector

RS 제품 번호:: 293-523
제조사 부품 번호:: K30L2RGB7
제조업체:: Banner

Banner K30L Series Blue, Green, Red Indicator M22 By 1.5 Threaded Base, 10V dc, 30 V dc, 60mA, M12 4-Pin Connector

Subtotal (1 unit)*

₩139,978.00

3 개 단위 배송 준비 완료
추가로 2026년 11월 16일 부터 12 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩139,978.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 293-523
제조사 부품 번호:: K30L2RGB7
제조업체:: Banner

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Banner
	Product Type	Indicator
	Voltage	10V dc, 30V dc
	Light Output Colour	Blue, Green, Red
	Lamp Base	M22 By 1.5 Threaded Base
	Current	60mA
	Termination Type	M12 4-Pin Connector
	IP Rating	IP67, IP69K
	Standards/Approvals	DIN 40050-9, UL Type 12, UL Type 4X, UL Type 13, FCC Part 15 Class B, CAN ICES-3 (B)/NMB-3(B), IEC 60068-2-6, IEC 60068-2-27
	Length	44.5mm
	Series	K30L
	Mount Hole Size	M22 x 1.5 mm

	모두 선택
	브랜드 Banner
	Product Type Indicator
	Voltage 10V dc, 30V dc
	Light Output Colour Blue, Green, Red
	Lamp Base M22 By 1.5 Threaded Base
	Current 60mA
	Termination Type M12 4-Pin Connector
	IP Rating IP67, IP69K
	Standards/Approvals DIN 40050-9, UL Type 12, UL Type 4X, UL Type 13, FCC Part 15 Class B, CAN ICES-3 (B)/NMB-3(B), IEC 60068-2-6, IEC 60068-2-27
	Length 44.5mm
	Series K30L
	Mount Hole Size M22 x 1.5 mm

Datasheet - K30L2RGB7

COO (Country of Origin):: MX

The Banner Indicator redefines signalling technology with its exceptional programmable multicolour RGB display, perfect for diverse industrial applications. This 30 mm indicator is designed to offer a bright, uniform light output, making it unmistakably visible even in challenging environments. Equipped with advanced flashing input control, it allows for visually dynamic signalling tailored to user preferences. With a robust polycarbonate construction, this indicator is rated IP67 and IP69K, ensuring reliable performance in moisture-prone conditions.

Constructed with a resilient polycarbonate body for long term reliability

Allows for a range of connector options to suit different installation requirements

Facilitates easy programmable settings for tailored operational use

Banner K30L Series Blue, Green, Red Indicator M22 By 1.5 Threaded Base, 10V dc, 30 V dc, 60mA, M12 4-Pin Connector
