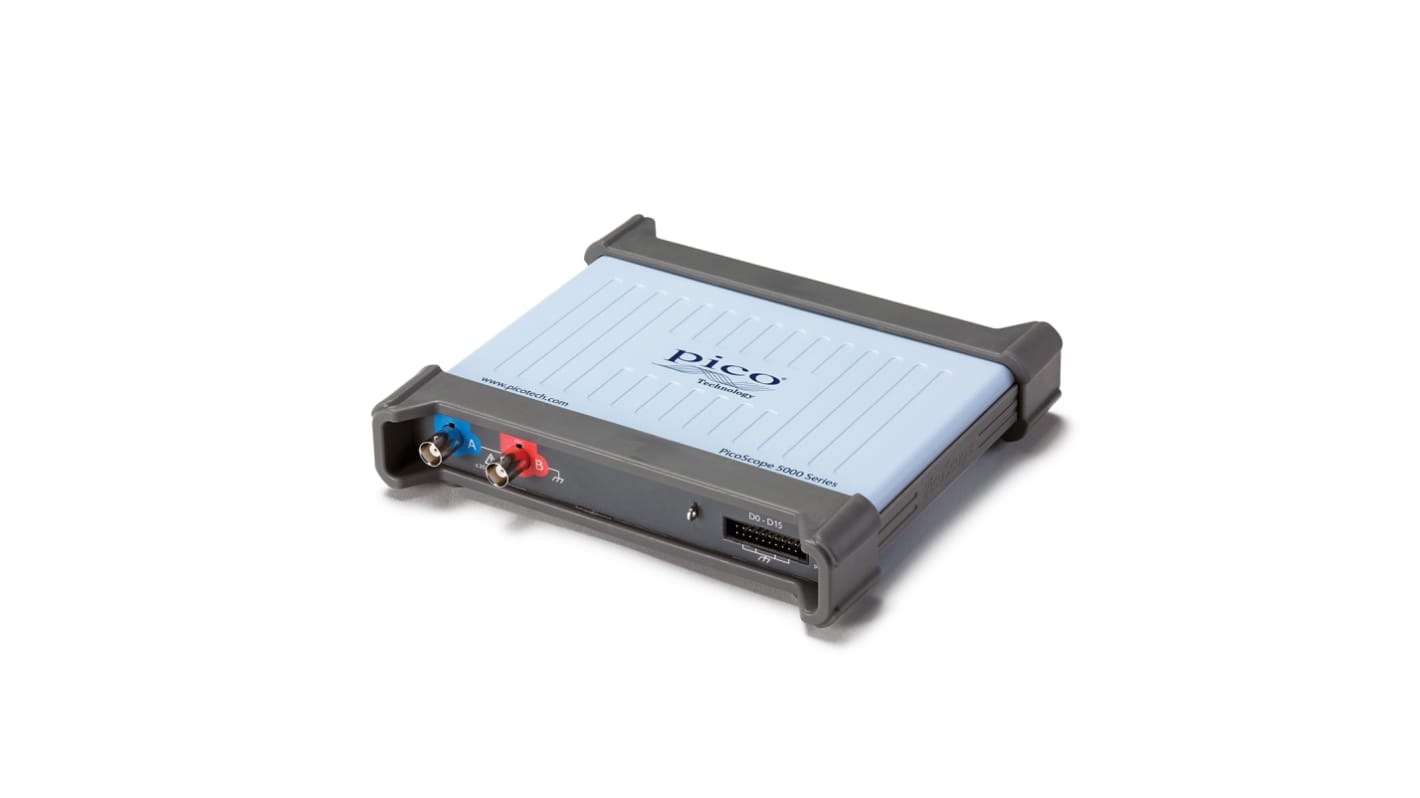

PicoScope 5000D Series, 100 MHz PC Based Oscilloscope 18-Channel

RS 제품 번호:: 174-9596
Distrelec 제품 번호:: 301-11-348
제조사 부품 번호:: PicoScope 5243D MSO
제조업체:: Pico Technology

PicoScope 5000D Series, 100 MHz PC Based Oscilloscope 18-Channel

모든 Oscilloscopes 열람하기

Subtotal (1 unit)*

₩3,649,580.00

일시적 품절

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩3,649,580.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 174-9596
Distrelec 제품 번호:: 301-11-348
제조사 부품 번호:: PicoScope 5243D MSO
제조업체:: Pico Technology

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Pico Technology
	Product Type	Oscilloscope
	Bandwidth	100MHz
	Number of Channels	18
	Model Number	PicoScope 5243D MSO
	Oscilloscope Type	PC Based
	Interface Type	CAN, LIN, RS232, RS422, RS485, SPI, UART, USB
	Series	PicoScope 5000D
	Width	170mm
	Standards/Approvals	RoHS, WEEE
	Height	40mm
	Length	190mm
	Maximum Time Base	5000s/div
	Rise Time	3.5ns
	Minimum Time Base	1ns/div
	Maximum Vertical Sensitivity	4V/div
	Vertical Resolution	16 bit
	Minimum Vertical Sensitivity	2mV/div
	Power Source	USB

	모두 선택
	브랜드 Pico Technology
	Product Type Oscilloscope
	Bandwidth 100MHz
	Number of Channels 18
	Model Number PicoScope 5243D MSO
	Oscilloscope Type PC Based
	Interface Type CAN, LIN, RS232, RS422, RS485, SPI, UART, USB
	Series PicoScope 5000D
	Width 170mm
	Standards/Approvals RoHS, WEEE
	Height 40mm
	Length 190mm
	Maximum Time Base 5000s/div
	Rise Time 3.5ns
	Minimum Time Base 1ns/div
	Maximum Vertical Sensitivity 4V/div
	Vertical Resolution 16 bit
	Minimum Vertical Sensitivity 2mV/div
	Power Source USB

COO (Country of Origin):: GB

PicoScope 5000D Series Oscilloscope, 100MHz Bandwidth, 16-bit Vertical Resolution - PicoScope 5243D MSO

This oscilloscope is a PC-based diagnostic instrument designed for capturing and analysing electrical signals across multiple protocols. Powered via USB, it integrates analogue and digital inputs to support mixed-signal inspection and serial bus monitoring in laboratory or field workflows. The instrument conforms to environmental disposal standards and connects to host systems through a broad set of interfaces for comprehensive signal access.

Features and Benefits:

• 100MHz bandwidth delivers wide-frequency signal capture for general diagnostics
• 16-bit resolution improves amplitude detail for precise measurements
• 1ns/div minimum time base enables fine temporal resolution for fast events
• 3.5ns rise time reveals Rapid edge behaviour during transitions
• 18 channels provide mixed-signal visibility for parallel acquisition

Applications

• Suitable for automotive CAN and LIN bus analysis
• Ideal for serial protocol debugging including RS232 and RS422
• Used with SPI and UART peripheral validation
• Can be used for RS485 multi-drop network troubleshooting
• Suitable for portable field measurement when USB powered

How is the unit powered when used away from the mains?

It draws operating power from a USB connection to the host computer.

Which communications protocols can be examined with this instrument?

It offers direct interfacing for CAN, LIN, RS232, RS422, RS485, SPI and UART signals.

What dynamic range does the vertical input support?

Vertical sensitivity spans from 2mV/div up to 4V/div for varied signal amplitudes.

How many simultaneous channels are available for mixed-signal capture?

The device provides 18 channels to combine analogue and digital measurements.

What approvals relate to environmental handling?

The instrument meets RoHS and WEEE standards for material restrictions and disposal.
