Rohde & Schwarz RTM3002 RTM3000 Series Digital Bench Oscilloscope, 2 Analogue Channels, 350MHz, 16 Digital Channels
- RS 제품 번호:
- 174-2845
- 제조사 부품 번호:
- RTM3K-32M
- 제조업체:
- Rohde & Schwarz
일시 품절-다음 입고 날짜는 02/07/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩16,073,584.144
수량 | 한팩당 |
1 + | ₩16,073,584.144 |
- RS 제품 번호:
- 174-2845
- 제조사 부품 번호:
- RTM3K-32M
- 제조업체:
- Rohde & Schwarz
제정법과 컴플라이언스
- COO (Country of Origin):
- CZ
제품 세부 사항

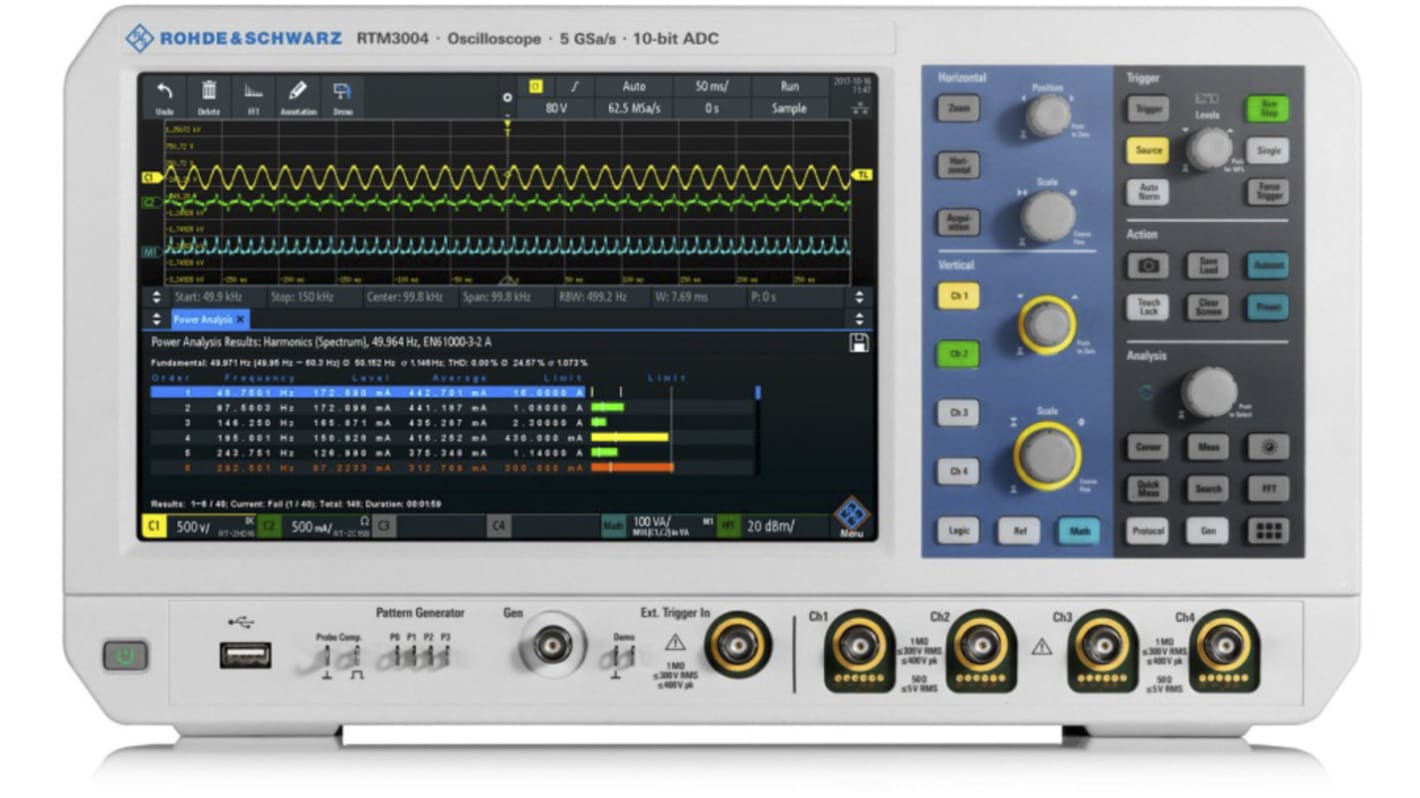

Rohde & Schwarz RTM3000 Series RTM3002 Oscilloscope
The Rohde & Schwarz RTM3000 digital oscilloscope is designed with high vertical sensitivity and can perform multiple functions. It allows a bandwidth of 350MHz, memory depth up to 40M sample and sampling rate up to 5GS/s. It has a 10 bit analogue to digital converter that offers sharper waveforms with more signal details. This oscilloscope has a large capacitive touch display of 10.1in with a high resolution of 1280 x 800 pixel. It has two channels and performs multiple functions like logical and protocol analyser, waveform and pattern generator for quick and efficient analysis. This oscilloscope also acts as digital voltmeter for simultaneous and precise measurements. This instrument is an ideal choice for the power signal details up to 10 bit resolution.
Features and Benefits
Includes probe interface suitable for all Rohde & Schwarz probes
Touchscreen display with gesture support as like smartphones
It has built-in logical analyser
Touchscreen display with gesture support as like smartphones
It has built-in logical analyser
Applications
Educational institutes
Used by service technicians
R&D troubleshooting
Production testing
Used by service technicians
R&D troubleshooting
Production testing
사양
속성 | 값 |
---|---|
Number of Digital Channels | 16 |
Number of Analogue Channels | 2 |
Bandwidth | 350MHz |
Digital/Analogue | Digital |
Oscilloscope Form | Mixed Signal |
Oscilloscope Type | Bench |
Series | RTM3000 |
Interface | CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB |
Power Source | Mains |
Display Type | Capacitive Touch Display |
Minimum Vertical Sensitivity | 0.5mV/div |
Maximum Vertical Sensitivity | 10V/div |
Minimum Time Base | 0.5ns/div |
Screen Size | 256.04mm |
Sample Rate Random | 2.5 Gsps, 5 Gsps |
Dimensions | 390 x 152 x 220mm |
Weight | 3.3kg |
Vertical Resolution | 10 bit, 16 bit |
Maximum Time Base | 500s/div |
Rise Time | 1ns |
Plug Type | Type A - North American/Japanese 2-blade |
Safety Category | CAT III 1000V |
