Keysight Technologies N2870A Series N2873A Oscilloscope Probe, Voltage Type, 500 MHz, 10x, BNC Connector
- RS 제품 번호:
- 702-3902
- Distrelec 제품 번호:
- 110-42-491
- 제조사 부품 번호:
- N2873A
- 제조업체:
- Keysight Technologies
Subtotal (1 unit)*
₩1,229,080.00
재고있음
- 4 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,229,080.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 702-3902
- Distrelec 제품 번호:
- 110-42-491
- 제조사 부품 번호:
- N2873A
- 제조업체:
- Keysight Technologies
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Keysight Technologies | |
| Probe Type | Voltage | |
| Product Type | Oscilloscope Probe | |
| Attenuation | 10x | |
| Bandwidth | 500MHz | |
| Maximum Common Mode Input Voltage | 400V | |
| Connector Type | BNC | |
| Model Number | N2873A | |
| Number of Probes | 1 | |
| Safety Category Level | CAT II, CAT I | |
| Safety Category Voltage | 400V | |
| Series | N2870A | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Keysight Technologies | ||
Probe Type Voltage | ||
Product Type Oscilloscope Probe | ||
Attenuation 10x | ||
Bandwidth 500MHz | ||
Maximum Common Mode Input Voltage 400V | ||
Connector Type BNC | ||
Model Number N2873A | ||
Number of Probes 1 | ||
Safety Category Level CAT II, CAT I | ||
Safety Category Voltage 400V | ||
Series N2870A | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- DE
Keysight Technologies Oscilloscope Probe, 500MHz Bandwidth, 10:1 Attenuation Ratio - N2870A Series - N2873A
Signal your commitment to accurate electrical testing with this passive oscilloscope probe from Keysight Technologies. It features a hefty bandwidth of 500MHz, so it's a reliable choice for demanding troubleshooting and field analysis tasks. Thanks to an attenuation ratio of 10:1, this deft device is well-suited to high-frequency readings. A compact probe head diameter of 2.5mm means it can easily fit into tight spaces, making it easy as can be to probe fine-pitched integrated circuits.
• Light weight of 48g for ease of handling
• Compatible with oscilloscopes in the InfiniiVision and Infiniium series with an input of 1MΩ for versatility
• Cable length of 1.3m for ease of connection across short distances
Applications
• Electrical engineering
• Telecommunications
• Medical equipment
What accessories come with this product?

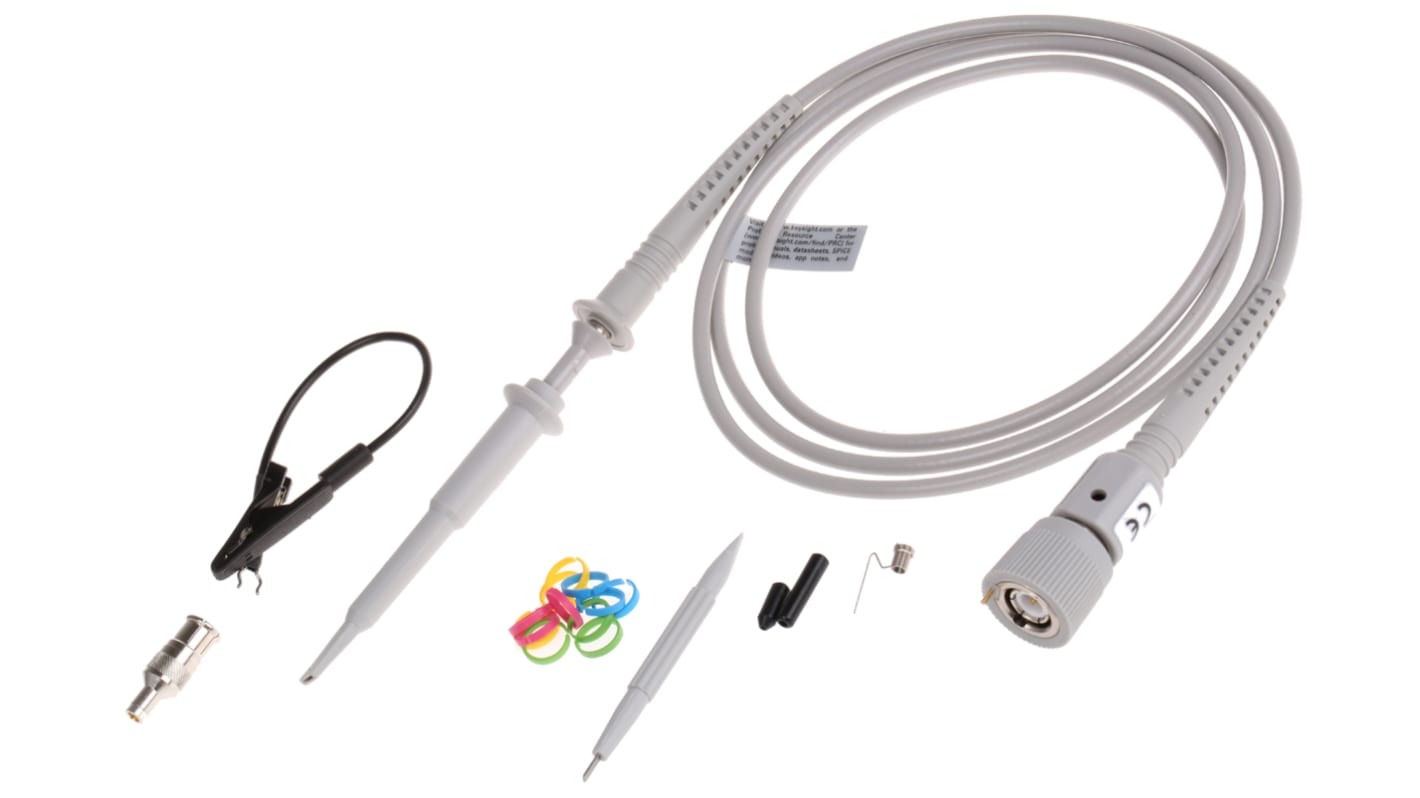

To make sure you have everything you need for pinpoint accuracy in your experiments, this probe comes equipped with one spring-loaded probe tip, four spare probe tips (including two spring-loaded and two rigid tips) and five different IC caps ranging in size between 0.5 and 1.27mm.
Note
Manufacturer’s Warranty
