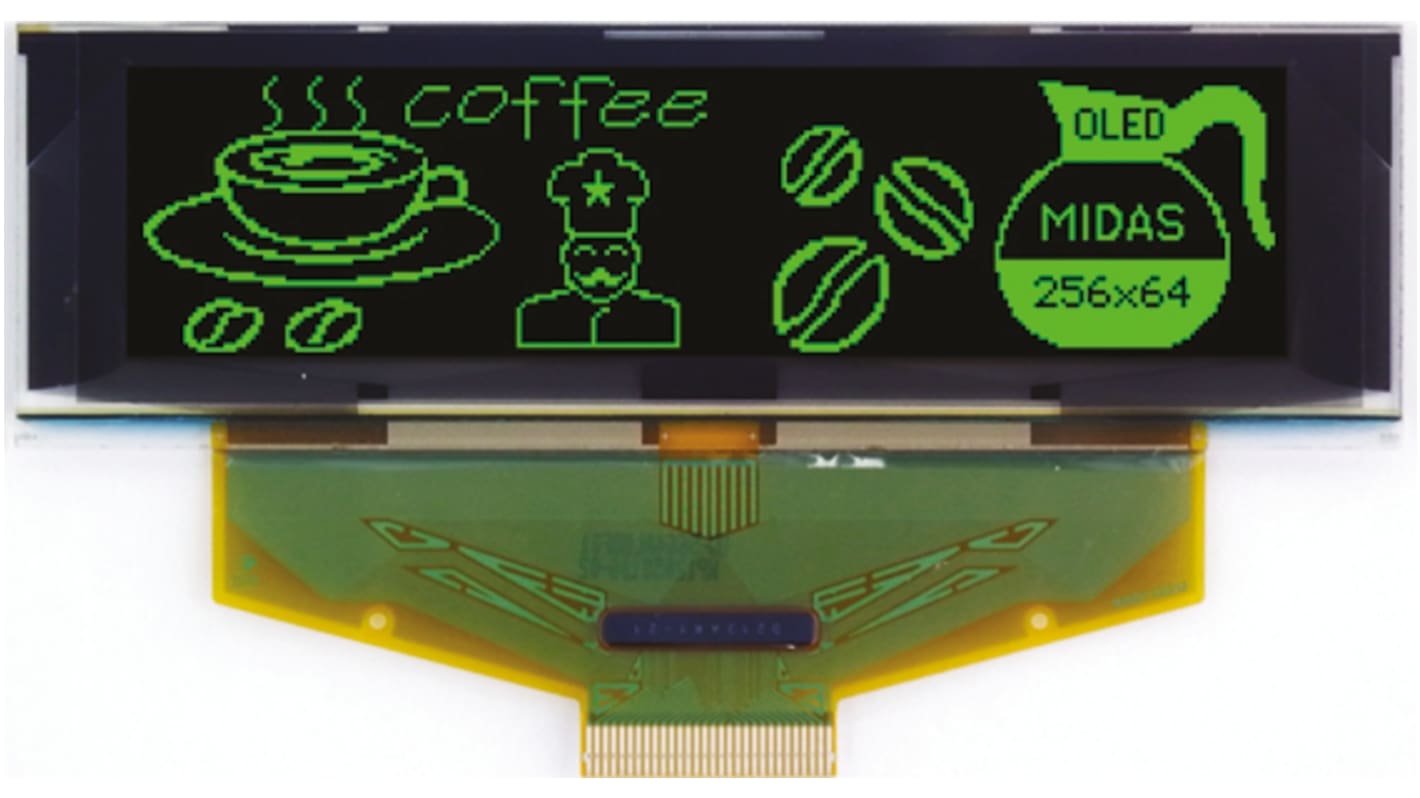

Midas 3.12in Green Passive matrix OLED Display 256 x 64pixels TAB Multi Interface

모든 OLED Displays 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩155,250.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 1월 26일 부터 23 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 9₩155,250.40
10 - 49₩150,588.00
50 +₩144,572.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
823-5967
제조사 부품 번호:
MCOT256064BA-GM
제조업체:
Midas
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Midas

Diagonal Display Size

3.12in

Viewing Area Dimensions

78.78 x 21.18mm

Matrix Type

Passive

Display Colours

Green

Resolution

256 x 64pixels

Contrast Ratio

>2000:1

Driver Mounting

TAB

Interface Ports

Multi

Dimensions

88.0 x 27.8 x 2mm

Depth

2mm

Height

27.8mm

Maximum Operating Temperature

+85°C

Operating Temperature Range

-30 → +85°C

Viewing Area Width

78.78mm

Minimum Operating Temperature

-30°C

Forward Voltage

3.5 V dc

Width

88.0mm

Viewing Area Height

21.18mm

COO (Country of Origin):
TW

Midas Graphic OLED Displays, TAB


A range of TAB (Taped Automated Bonding) monochrome OLED displays from Midas. These TAB displays allow for very compact, low-profile modules and require significantly less space than traditional LCD graphics modules. The Passive Matrix OLED technology provides high-visibility displays with outstanding visual characteristics, including high contrast and wide viewing angles. The modules are available in a wide range of display colours and resolutions, and have a typical operating life of 60,000 hours.

Viewing angle: > 160° horizontal and vertical
Contrast ratio: > 2000:1
Operating temperature range: -30 to 70°C
Operating life: 60,000 hours at 25°C
Interface type: Parallel/Serial (823-5948 has I2C only)

Note

Some versions have a wider operating temperature range and higher contrast ratio – see manufacturer’s data for details.

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.



Midas Graphic PMOLED Displays
