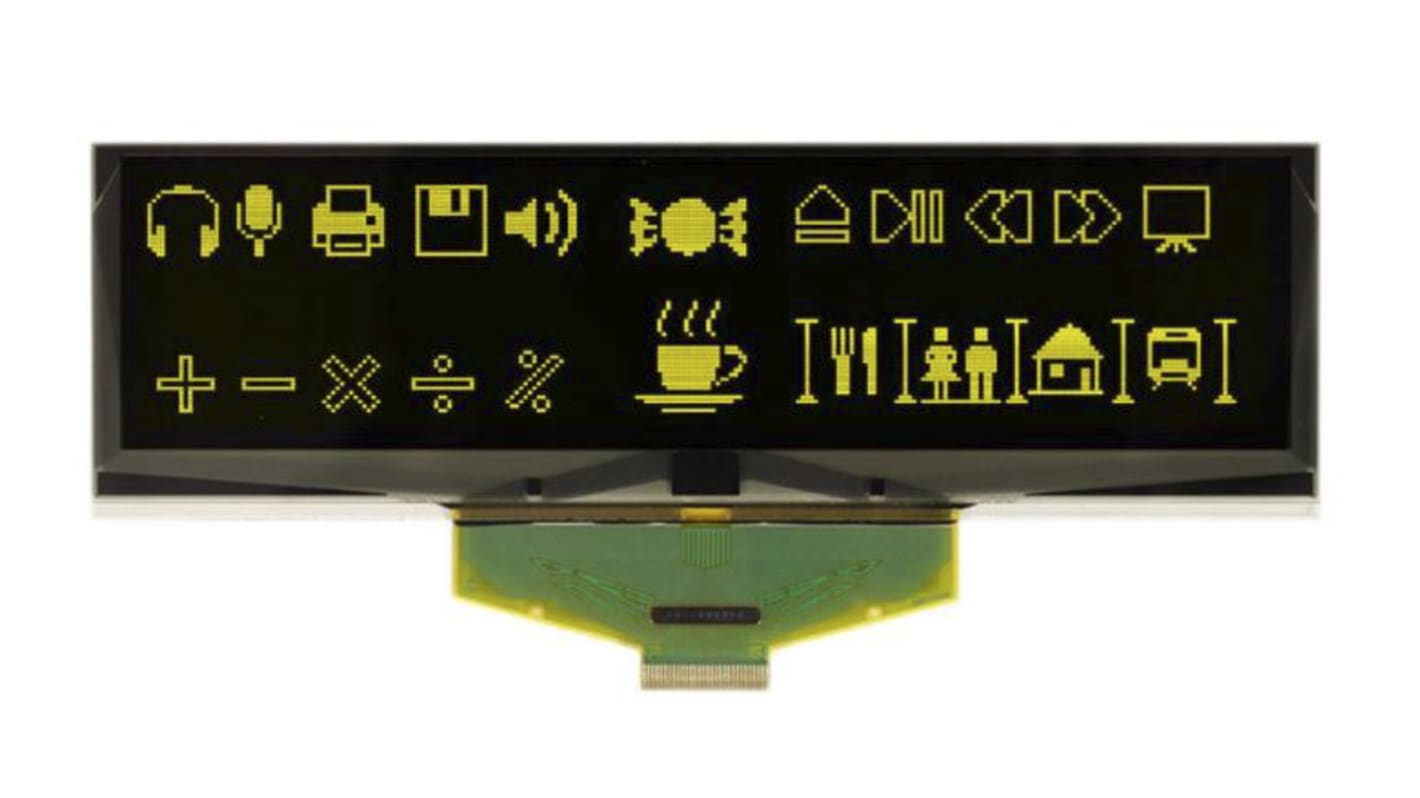

Display Visions 139.7 mm Passive matrix OLED Display 256 x 64 pixel COB SPI
- RS 제품 번호:
- 168-8577
- 제조사 부품 번호:
- EA W256064-XGLG
- 제조업체:
- Display Visions
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩290,121.60
일시적 품절
- 2026년 3월 31일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩290,121.60 |
| 10 - 49 | ₩284,312.40 |
| 50 + | ₩278,634.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 168-8577
- 제조사 부품 번호:
- EA W256064-XGLG
- 제조업체:
- Display Visions
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Display Visions | |
| Diagonal Display Size | 139.7mm | |
| Product Type | OLED Display | |
| Viewing Area Dimensions | 137.65 x 35.89 mm | |
| Matrix Type | Passive | |
| Screen Resolution | 256 x 64 pixel | |
| Interface Type | SPI | |
| Contrast Ratio | 2000:1 | |
| Driver Mounting | COB | |
| External Depth | 2.05mm | |
| Minimum Operating Temperature | -40°C | |
| External Width | 146mm | |
| External Height | 45mm | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS | |
| Forward Voltage | 4V dc | |
| Forward Current | 1A | |
| 모두 선택 | ||
|---|---|---|
브랜드 Display Visions | ||
Diagonal Display Size 139.7mm | ||
Product Type OLED Display | ||
Viewing Area Dimensions 137.65 x 35.89 mm | ||
Matrix Type Passive | ||
Screen Resolution 256 x 64 pixel | ||
Interface Type SPI | ||
Contrast Ratio 2000:1 | ||
Driver Mounting COB | ||
External Depth 2.05mm | ||
Minimum Operating Temperature -40°C | ||
External Width 146mm | ||
External Height 45mm | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS | ||
Forward Voltage 4V dc | ||
Forward Current 1A | ||
Whether round, whether square or extreme small with 29x9mm only, the new OLED displays from ELECTRONIC ASSEMBLY play their advantage for compact handheld applications: power saving, compact and with an extreme wide operating temperature of -40..+80°C range. Interface is serial for every 3.3V system. Thanks to the integrated controller and a lot initialization examples it is easy to display measurement, graphics and icons quick and contrasty.
5.5” Low-Power OLED
-40..+80°C (Top.)
256x64 dots
Yellow display
Incl. controller SSD1322
SPI, 8-Bit Interface
Fast response time (10μs) even at -40°C
ZIFF connection
146x45mm outline dimensions
