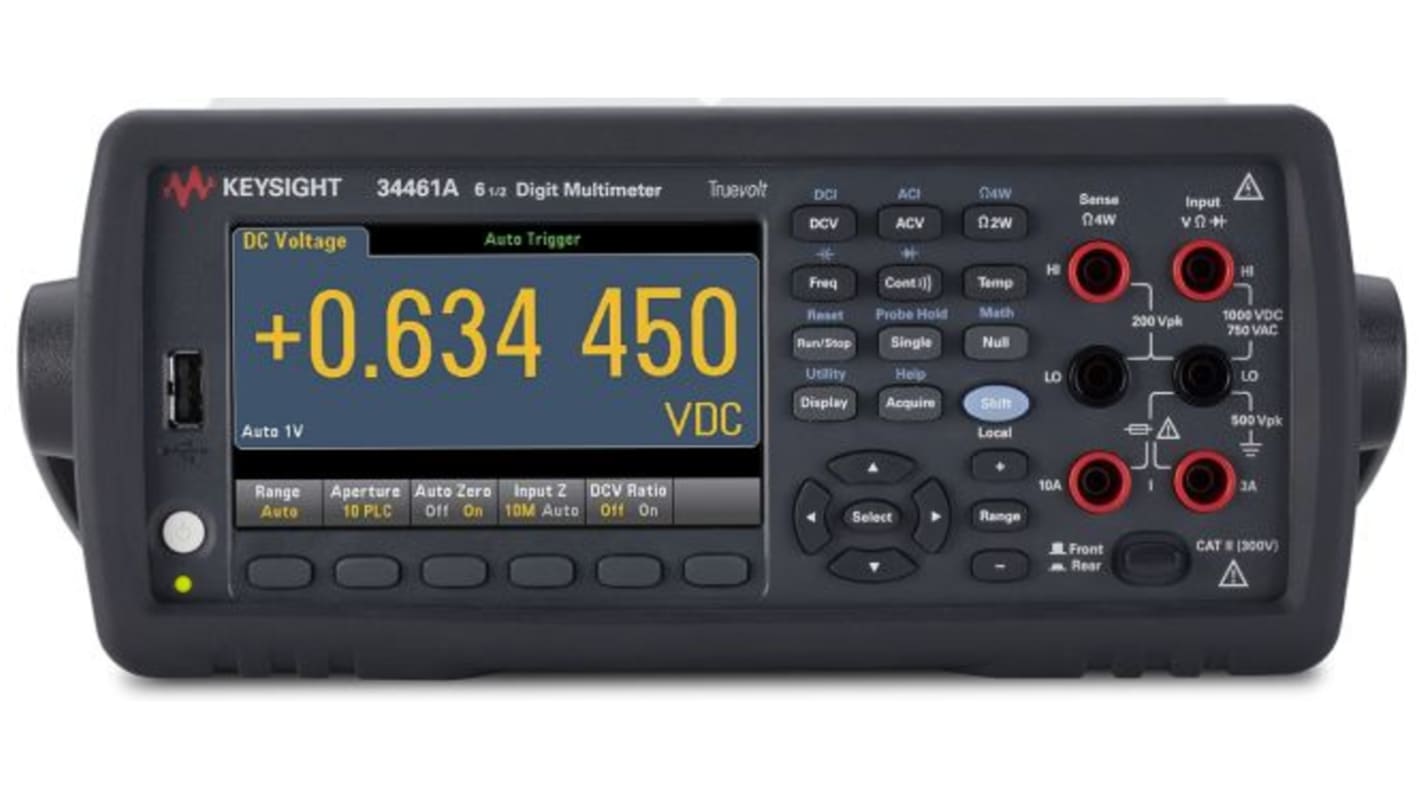

Keysight Technologies Truevolt 34461A Bench Digital Multimeter True RMS

RS 제품 번호:: 777-7104
Distrelec 제품 번호:: 110-41-944
제조사 부품 번호:: 34461A
제조업체:: Keysight Technologies

Keysight Technologies Truevolt 34461A Bench Digital Multimeter True RMS

현재 비가용

죄송합니다. 언제 재입고될지 모릅니다.

대체품

이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.

Keysight Technologies Truevolt 34460A Bench Digital Multimeter True RMS

RS 제품 번호: 777-7101

개당

₩2,041,084.50

RS 제품 번호:: 777-7104
Distrelec 제품 번호:: 110-41-944
제조사 부품 번호:: 34461A
제조업체:: Keysight Technologies

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Keysight Technologies
	Product Type	Multimeter
	Multimeter Type	Bench
	Model Number	Truevolt 34461A
	Display Type	Digital
	Functions Measured	AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
	Maximum Resistance Measurement	100mΩ
	Maximum DC Voltage Measurement	1kV dc
	True RMS	Yes
	AC Voltage Accuracy	±4 % rdg + 0.5 % range
	AC Current Accuracy	±0.15 % rdg + 0.04
	Maximum Frequency	300kHz
	Minimum Operating Temperature	0°C
	Battery Life	10year
	Maximum Operating Temperature	55°C
	Width	216.2mm
	Standards/Approvals	No
	Height	103.8mm
	Weight	3.8kg
	Length	303.2mm
	Safety Category Level	CAT II
	Battery Type	CR302
	Safety Category Voltage	300V

	모두 선택
	브랜드 Keysight Technologies
	Product Type Multimeter
	Multimeter Type Bench
	Model Number Truevolt 34461A
	Display Type Digital
	Functions Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
	Maximum Resistance Measurement 100mΩ
	Maximum DC Voltage Measurement 1kV dc
	True RMS Yes
	AC Voltage Accuracy ±4 % rdg + 0.5 % range
	AC Current Accuracy ±0.15 % rdg + 0.04
	Maximum Frequency 300kHz
	Minimum Operating Temperature 0°C
	Battery Life 10year
	Maximum Operating Temperature 55°C
	Width 216.2mm
	Standards/Approvals No
	Height 103.8mm
	Weight 3.8kg
	Length 303.2mm
	Safety Category Level CAT II
	Battery Type CR302
	Safety Category Voltage 300V

로그인하여 CAD 모델 다운로드

해당 안됨

COO (Country of Origin):: MY

Keysight Technologies Multimeter, 100mV to 1000V DC Voltage Measurement Range, 10-Year Battery Life - Truevolt Series - 34461A

Monitor the electrical performance of your machinery using this multimeter from Keysight Technologies. It's designed to measure various parameters, including current, voltage, resistance and temperature. For ease of use, simply plug your measuring probes into the unit's built-in ports and connect their tips to the circuit. The high-resolution colour display shows histograms, bar charts and trend charts, so you can easily visualise your data.

Features & Benefits

• Maximum reading rate of 1000 readings per second for quick results

• Long battery life of 10 years for long-term performance

• Wide operating temperature range between 0°C and +55°C for use in demanding environments

Applications

• Electrical engineering

• Computer devices

• Household appliances

What's meant by true RMS?

This device is true RMS-capable, which means it can effectively measure both perfect and imperfect waveforms of AC voltage for efficient operation.

How do I transfer information from this multimeter?

This multimeter features an integrated USB port that lets you transfer data to your computer. It's also compatible with BenchVue software, which allows you to analyse your data and export it to different programs.

Note

Manufacturer’s Warranty

Standards

ISO/IEC 17025

Supplied with

34138A test lead set with probes, fine tip probes, SMT grabbers and mini-grabber attachments, power cord, documentation CD, IO libraries CD, USB cable,calibration certificate
