제조사부품번호

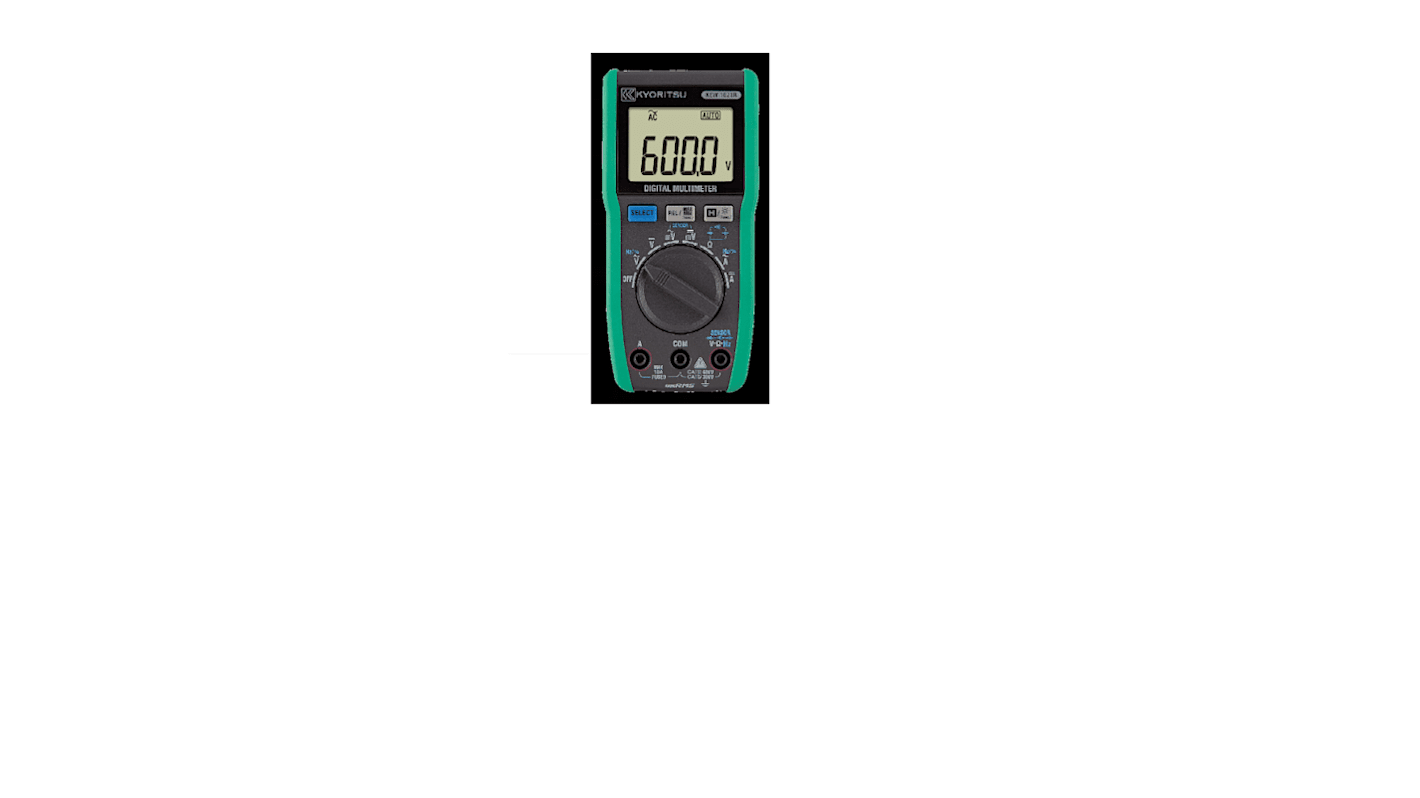

Kyoritsu Handheld Digital Multimeter True RMS, 10 A Max, 10 A Max, 600 V ac Max

RS 재고 번호:: 253-2612
제조 부품 번호:: K1021R
제조업체:: Kyoritsu

Kyoritsu Handheld Digital Multimeter True RMS, 10 A Max, 10 A Max, 600 V ac Max

Subtotal (1 unit)*

₩359,418.40

재고있음

1 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

단위당	한팩당
1 +	₩359,418.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 재고 번호:: 253-2612
제조 부품 번호:: K1021R
제조업체:: Kyoritsu

기술적 참조

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Kyoritsu
	Multimeter Type	Handheld
	Product Type	Digital Multimeter
	Functions Measured	AC Voltage, AC Current, Continuity, Frequency, DC Current, Resistance, Capacitance, DC Voltage
	Maximum DC Current Measurement	10A
	Maximum AC Current Measurement	10A
	Maximum DC Voltage Measurement	600V
	Maximum AC Voltage Measurement	600V ac
	True RMS	Yes
	AC Current Accuracy	±1.5 % rdg ±3 Digits
	AC Voltage Accuracy	±1 % rdg ±3 Digits
	DC Current Accuracy	±1.5 % rdg ±3 Digits
	DC Voltage Accuracy	±0.5 % rdg ±3 Digits
	Maximum Frequency	99.99kHz
	Power Source	Battery
	Weight	250g
	Standards/Approvals	IEC 6132622 (EMC), IEC 61010031, CE, IEC 610101, EN 50581 (RoHS), IEC 610102033
	Height	40mm
	Length	155mm
	Width	75 mm
	Safety Category Level	CAT III, CAT II, CAT IV
	Safety Category Voltage	1000V
	Battery Type	1.5 V R03

	모두 선택
	브랜드 Kyoritsu
	Multimeter Type Handheld
	Product Type Digital Multimeter
	Functions Measured AC Voltage, AC Current, Continuity, Frequency, DC Current, Resistance, Capacitance, DC Voltage
	Maximum DC Current Measurement 10A
	Maximum AC Current Measurement 10A
	Maximum DC Voltage Measurement 600V
	Maximum AC Voltage Measurement 600V ac
	True RMS Yes
	AC Current Accuracy ±1.5 % rdg ±3 Digits
	AC Voltage Accuracy ±1 % rdg ±3 Digits
	DC Current Accuracy ±1.5 % rdg ±3 Digits
	DC Voltage Accuracy ±0.5 % rdg ±3 Digits
	Maximum Frequency 99.99kHz
	Power Source Battery
	Weight 250g
	Standards/Approvals IEC 6132622 (EMC), IEC 61010031, CE, IEC 610101, EN 50581 (RoHS), IEC 610102033
	Height 40mm
	Length 155mm
	Width 75 mm
	Safety Category Level CAT III, CAT II, CAT IV
	Safety Category Voltage 1000V
	Battery Type 1.5 V R03

Datasheet - K1021R

COO (Country of Origin):: JP

The Kyoritsu has large display with 6000 counts and backlight. It has enhanced current measuring function using an external clamp sensor. This product has two detachable holders, flat and wing type. Also it has accurate reading with true RMS safety standard.

Elegant and easy-to-use cabinet

Wing-type holder and flat-type holder

Kyoritsu Handheld Digital Multimeter True RMS, 10 A Max, 10 A Max, 600 V ac Max
