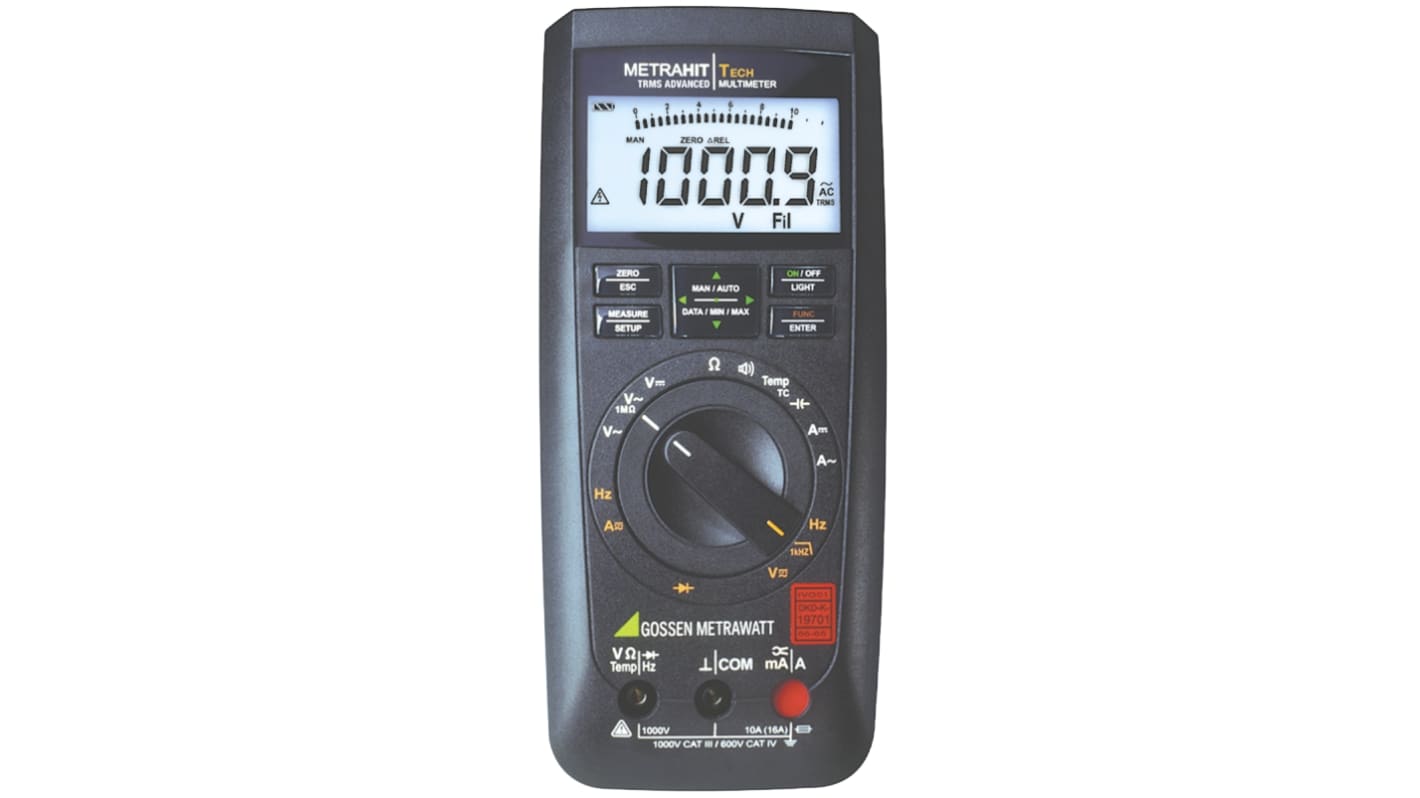

Gossen Metrawatt METRAHIT AM TECH Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max

모든 Multimeters 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
226-479
제조사 부품 번호:
M243A
제조업체:
Gossen Metrawatt
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Gossen Metrawatt

Multimeter Type

Handheld

Display Type

Digital

Model Number p

METRAHIT AM TECH

Functions Measured

AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature

Absolute Maximum Resistance Measurement

40MΩ

Absolute Maximum AC Voltage Measurement

1000V ac

Absolute Maximum DC Current Measurement

10A dc

Absolute Maximum DC Voltage Measurement

1000V dc

Absolute Maximum AC Current Measurement

10A ac

Absolute Maximum Capacitance Measurement

1mF

Absolute Maximum Temperature Measurement

+1372°C

True RMS

Yes

Maximum Frequency

10kHz

DC Current Measurement Resolution

1µA dc

AC Current Measurement Resolution

1µA ac

AC Voltage Measurement Resolution

10µV ac

Resistance Measurement Resolution

10mΩ

DC Voltage Measurement Resolution

10µV dc

Capacitance Measurement Resolution

10pF

Safety Category Level

CAT III, CAT IV

Temperature Measurement Resolution

0.1°C

Maximum Operating Temperature

+40°C

Best Temperature Measurement Accuracy

±1% + 5 Digits

Height

45mm

Minimum Operating Temperature

0°C

Length

200mm

Best DC Voltage Accuracy

±0.05% + 3 Digits

Best AC Voltage Accuracy

±0.05% + 3 Digits

Best Capacitance Measurement Accuracy

±5% + 6 Digits

Best AC Current Accuracy

±0.9% + 10 Digits

Dimensions

200 x 87 x 45mm

Width

87mm

Best DC Current Accuracy

±0.9% + 10 Digits

Safety Category Voltage

600 V, 1000V

Battery Type

AA

Best Resistance Measurement Accuracy

±2% + 10 Digits

Weight

350g

제외

COO (Country of Origin):
DE

METRAHIT BASE PRO TECH


MetraHit digital multimeters are suitable for universal with various applications. An excellent multimeter for using in the field as it is equipped an internal and mains-independent power supply. Automatic shut-down takes place when any measured values remain unchanged for any given period between 10 and 59 minutes, saving battery power. Your multimeter is protected from the elements and impact damage by the soft rubber cover that has a tilt stand and test probe holder.

Features and Benefits:


Large light blue illuminated display with extra-large figures (15 mm) and bargraph display
12 multimeter functions
Effective value measurement (AC, AC+DC)
Automatic reading range selection
Current measuring via external current sensors
MIN / MAX / data hold storage
Diode test and continuity test
Automatic jack disable (ABS) - prevents incorrect connection of measuring leads
One single jack prevents current ranges being interchanged
Safety: CAT IV 600V, CAT III 1000 V

Additional "PRO" features


16 multimeter functions
Current measurement up to 10 A AC / DC directly possible
Low pass filter ( 1kHz)

Additional "TECH" features


20 multimeter functions
Current measurement up to 10 A AC / DC directly possible
Low pass filter ( 1kHz)
Capacitance

Applications:


Electrical engineering

Electrical installation

Laboratory applications

Telecommunications

Training

Many other applications

What Is Included:


Multimeter

Pair of safety measurement cables 1.2 m

4 mm test probes CAT III, 600 V CAT IV (KS17-2)

2 Batteries 1.5 V Type AA

Operating instructions English/German

CD Rom, Content operating instructions English/German

DAkkS Calibration certificate
