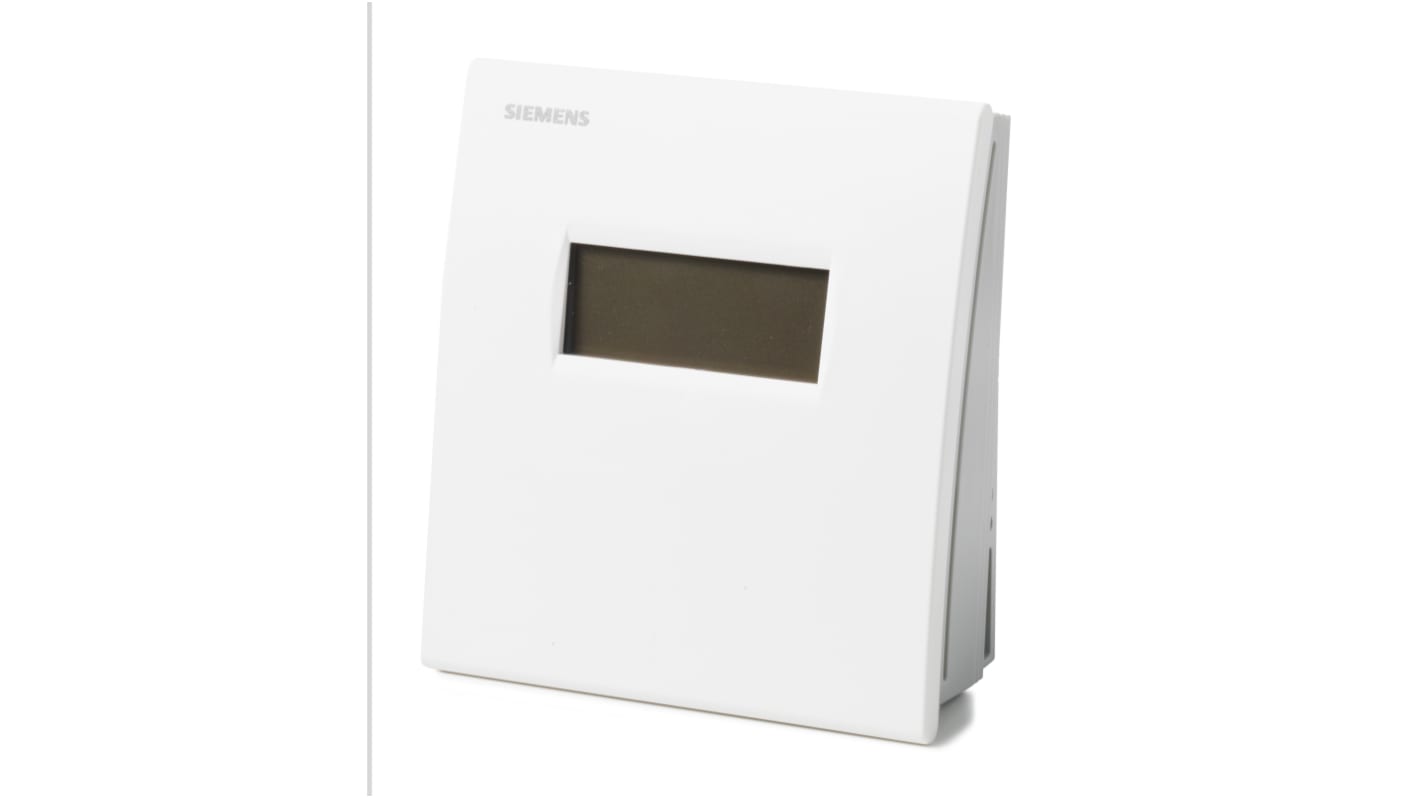

Siemens Room Sensor Wall Mount 100 mm 90 mm IP30
- RS 제품 번호:
- 287-8736
- 제조사 부품 번호:
- QFA2060D / BPZ:QFA2060D
- 제조업체:
- Siemens
현재 이용 불가
이 품목의 재입고 여부는 알 수 없으며 제조업체에서 단종되고 있습니다.
- RS 제품 번호:
- 287-8736
- 제조사 부품 번호:
- QFA2060D / BPZ:QFA2060D
- 제조업체:
- Siemens
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Product Type | Sensor | |
| Device Type | Room Sensor | |
| Mount Type | Wall Mount | |
| Height | 100mm | |
| Length | 90mm | |
| Width | 100mm | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | No | |
| IP Rating | IP30 | |
| Series | QFA | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Product Type Sensor | ||
Device Type Room Sensor | ||
Mount Type Wall Mount | ||
Height 100mm | ||
Length 90mm | ||
Width 100mm | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals No | ||
IP Rating IP30 | ||
Series QFA | ||
해당 안됨
- COO (Country of Origin):
- CN
The Siemens room sensor designed for use in ventilating and air conditioning plants. It is used to acquire relative humidity and temperature in rooms. With an operating voltage of AC 24 V or DC 13.5-35 V, it offers signal outputs of DC 0-10 V or 4-20 mA for both relative humidity and temperature. The sensor has an accuracy of ±3% r.h. within the comfort range and a range of use of -15 to +50°C / 0 to 95% r.h. It is suitable for use as a control and measuring sensor in building automation and control systems or indicating units.
Operating voltage of AC 24 V or DC 13.5-35 V
Signal output of DC 0-10 V or 4-20 mA for relative humidity
Signal output of DC 0-10 V or 4-20 mA / LG-Ni 1000 or T1 for temperature
Accuracy of ±3% r.h. within the comfort range
Suitable for use in ventilating and air conditioning plants
Ideal for acquiring relative humidity and temperature in rooms
Can be used as a control and measuring sensor in building automation and control systems or indicating units
