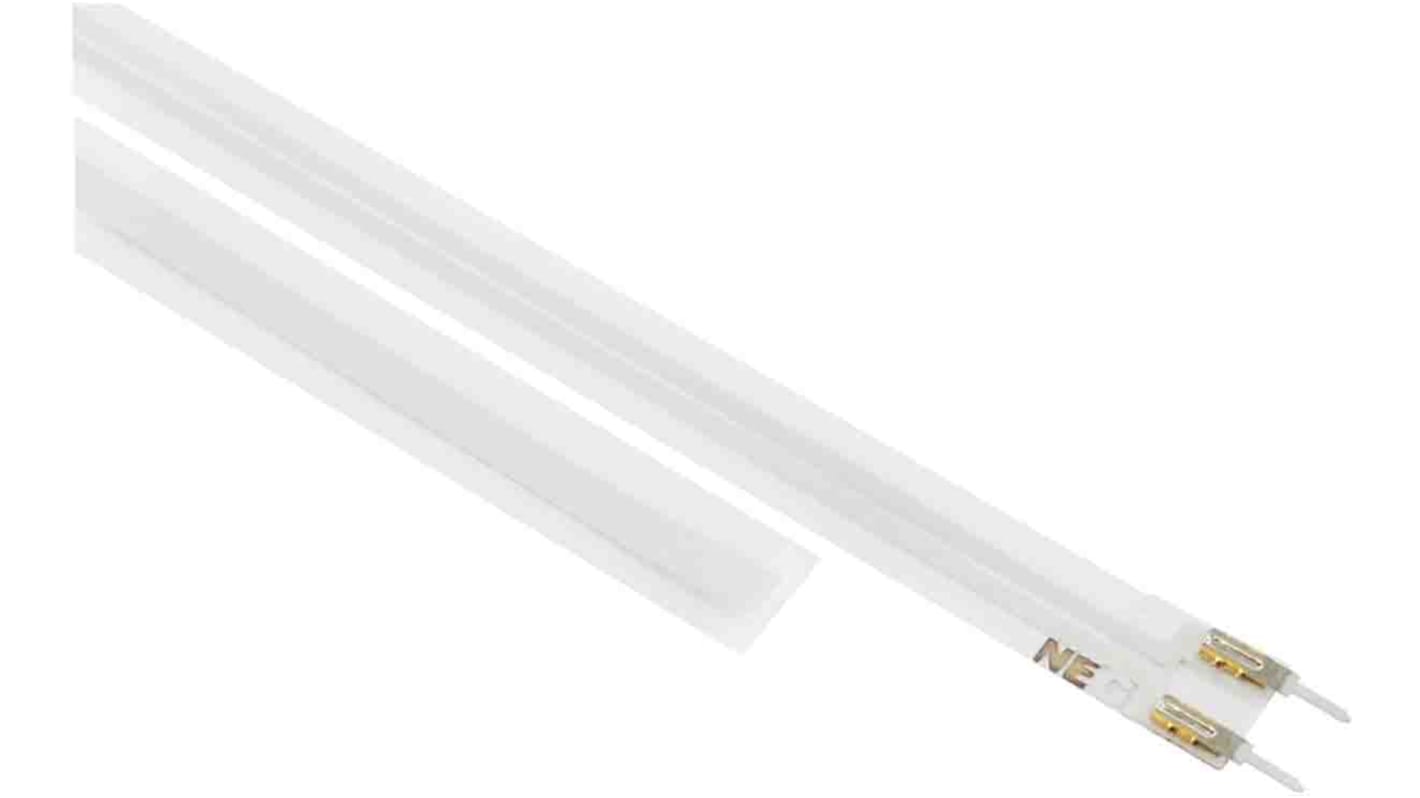

TE Connectivity Sleep Monitor Sensor

RS 제품 번호:: 202-2150
제조사 부품 번호:: 10184000-01
제조업체:: TE Connectivity

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

현재 비가용

RS는 이 제품을 더 이상 판매하지 않습니다.

RS 제품 번호:: 202-2150
제조사 부품 번호:: 10184000-01
제조업체:: TE Connectivity

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	TE Connectivity
	Product Type	Sensor
	Device Type	Sleep Monitor Sensor
	Mount Type	Panel Mount
	Length	800mm
	Width	8mm
	Maximum Supply Voltage	70V
	Standards/Approvals	No

Datasheet - 10184000-01

The TE Connectivity sleep monitor strip is a strip of Piezo film (piezoelectric PVDF polymer) 800mm long and 8mm wide. The active electrode area is 698.5mm long and 3mm wide. The total thickness of the strip is around 50 microns, making it extremely flexible and entirely imperceptible when placed under the body. Electrical interconnection is made via two crimped solder tabs. The strip produces a charge or voltage output when subjected to dynamic strain (change in length).

Very low thickness, imperceptible on mattress

High open-circuit voltage sensitivity to dynamic strain

Can detect breathing, pulse and body movement

Ballistocardiographic (BCG) principle

	모두 선택
	브랜드 TE Connectivity
	Product Type Sensor
	Device Type Sleep Monitor Sensor
	Mount Type Panel Mount
	Length 800mm
	Width 8mm
	Maximum Supply Voltage 70V
	Standards/Approvals No

TE Connectivity Sleep Monitor Sensor
