Subtotal (1 unit)*
₩18,424.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 + | ₩18,424.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 238-9816
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | DC Motor Controller | |
| Supply Voltage | 6/15 V dc | |
| Output Voltage | 15 V dc, 6 V dc | |
| Current Rating | 3 A | |
| Overall Length | 27mm | |
| Overall Width | 34mm | |
| Overall Depth | 18 mm | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type DC Motor Controller | ||
Supply Voltage 6/15 V dc | ||
Output Voltage 15 V dc, 6 V dc | ||
Current Rating 3 A | ||
Overall Length 27mm | ||
Overall Width 34mm | ||
Overall Depth 18 mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- GB

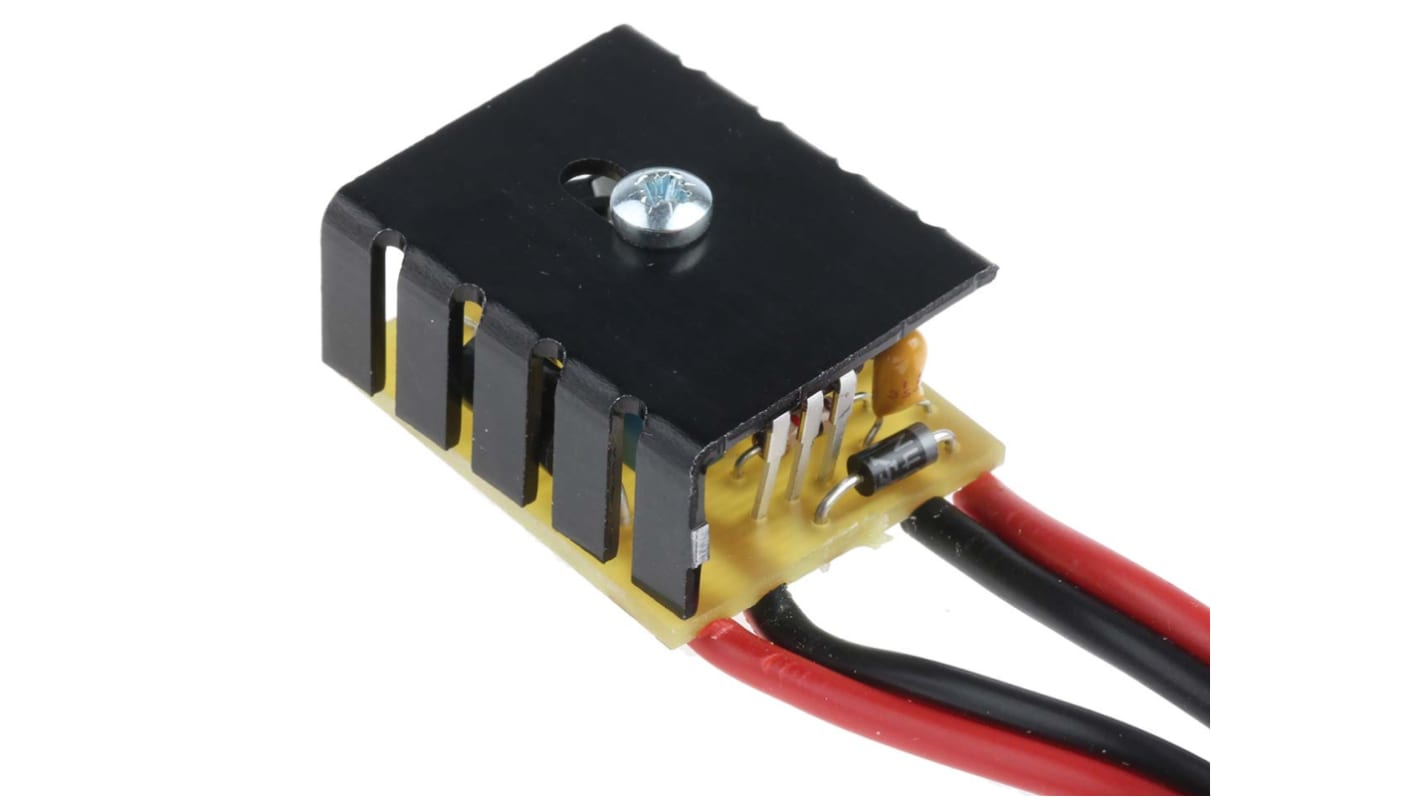

RS PRO DC Motor Controller, Voltage Control, 6 V to 15 V DC, 3 A, Freestanding
When you need to regulate the speed of electric motors accurately, turn to this DC controller from RS PRO. It's typically used to perform start and stop functions in a motor.
The unit's compact size ensures it's easy to install in modular systems and small electrical devices like toy cars. A miniature slotted screwdriver is provided with the unit, so you can pre-set the motor speeds securely. The controller is designed to ensure overload protection and prevent electrical faults, especially during start and stop phases.
The speed regulation from this controller works based on Pulse Width Modulation (PWM), so it can be used to achieve proportional control based on user input. This makes it especially handy for variable-speed handheld drilling machines. This motor has been stringently tested for quality and reliability.
Features and Benefits
• Compatible with brushed DC motor
• Voltage control input
• Current rating of 3 A
• Depth of 18 mm
• Length of 27 mm
• Width of 34 mm
• Freestanding mounting style
• Supply voltage of 6 V to 15 V DC
