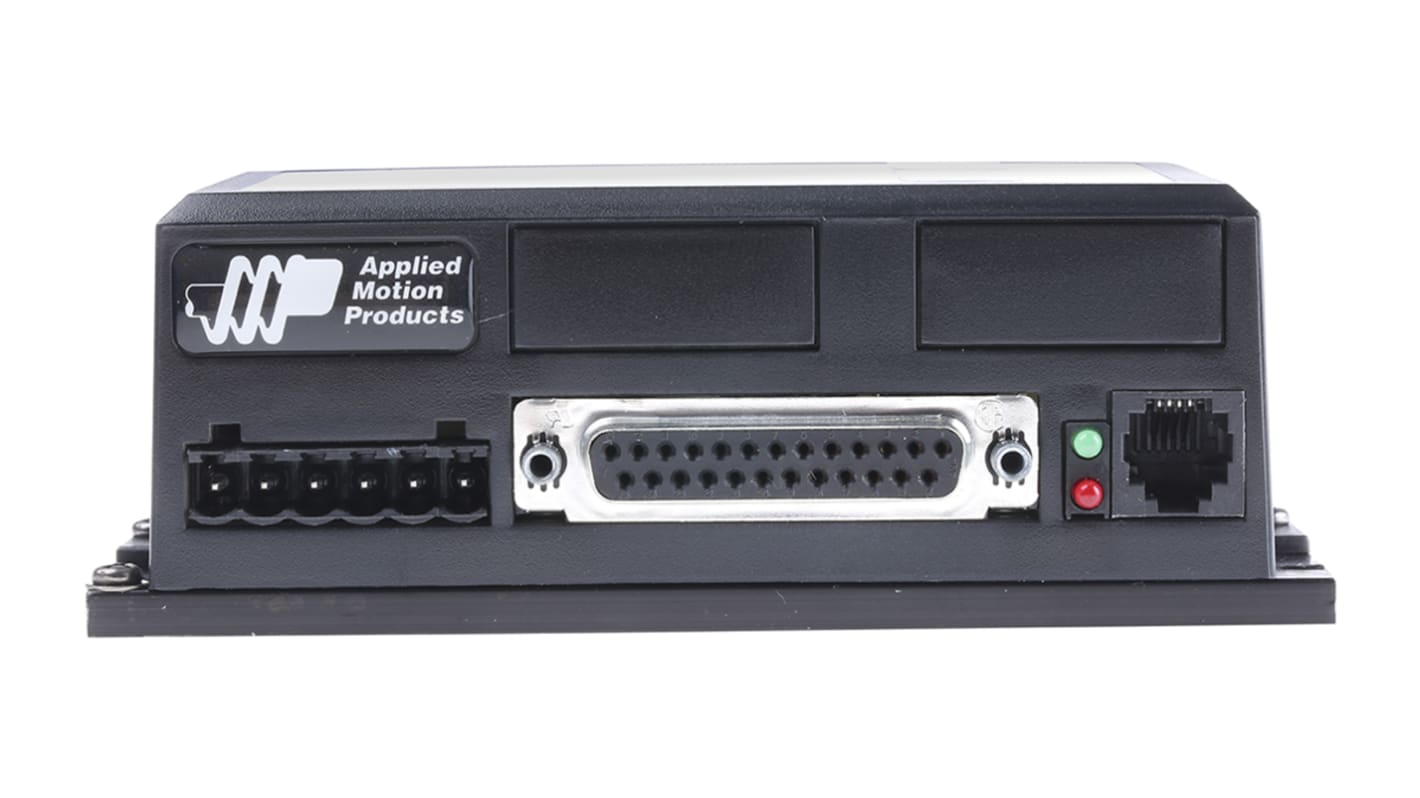

Applied Motion Systems Stepper Motor Controller, 48V dc, 10A, Amplifier Function
- RS 제품 번호:
- 455-863
- 제조사 부품 번호:
- ST10-SI
- 제조업체:
- Applied Motion Systems
Subtotal (1 unit)*
₩2,301,740.40
재고있음
- 3 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩2,301,740.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 455-863
- 제조사 부품 번호:
- ST10-SI
- 제조업체:
- Applied Motion Systems
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Applied Motion Systems | |
| Product Type | Stepper Motor Controller | |
| Control Function | Amplifier | |
| Supply Voltage | 48V dc | |
| Current Rating | 10A | |
| Overall Length | 127mm | |
| Overall Width | 76mm | |
| Overall Depth | 44.5mm | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 Applied Motion Systems | ||
Product Type Stepper Motor Controller | ||
Control Function Amplifier | ||
Supply Voltage 48V dc | ||
Current Rating 10A | ||
Overall Length 127mm | ||
Overall Width 76mm | ||
Overall Depth 44.5mm | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- US
ST5-Si and ST10-Si Programmable Stepper Drive
ST5-Si and ST10-Si programmable step drives offer the following features:
Software setup using ST Configurator (software included)
Microstepping 200 to 58000 steps/rev.
Pulse and direction: pulse/direction, CW/CCW, A/B quadrature
Host control mode
Idle current reduction
Anti-resonance
Torque ripple smoothing
Microstep emulation
8 digital inputs
4 digital outputs
May be fitted with option boards to provide an encoder feedback option (ST-ENC, stock no. 455-857) and RS-485 option (ST-RS485, stock no. 455-835)
