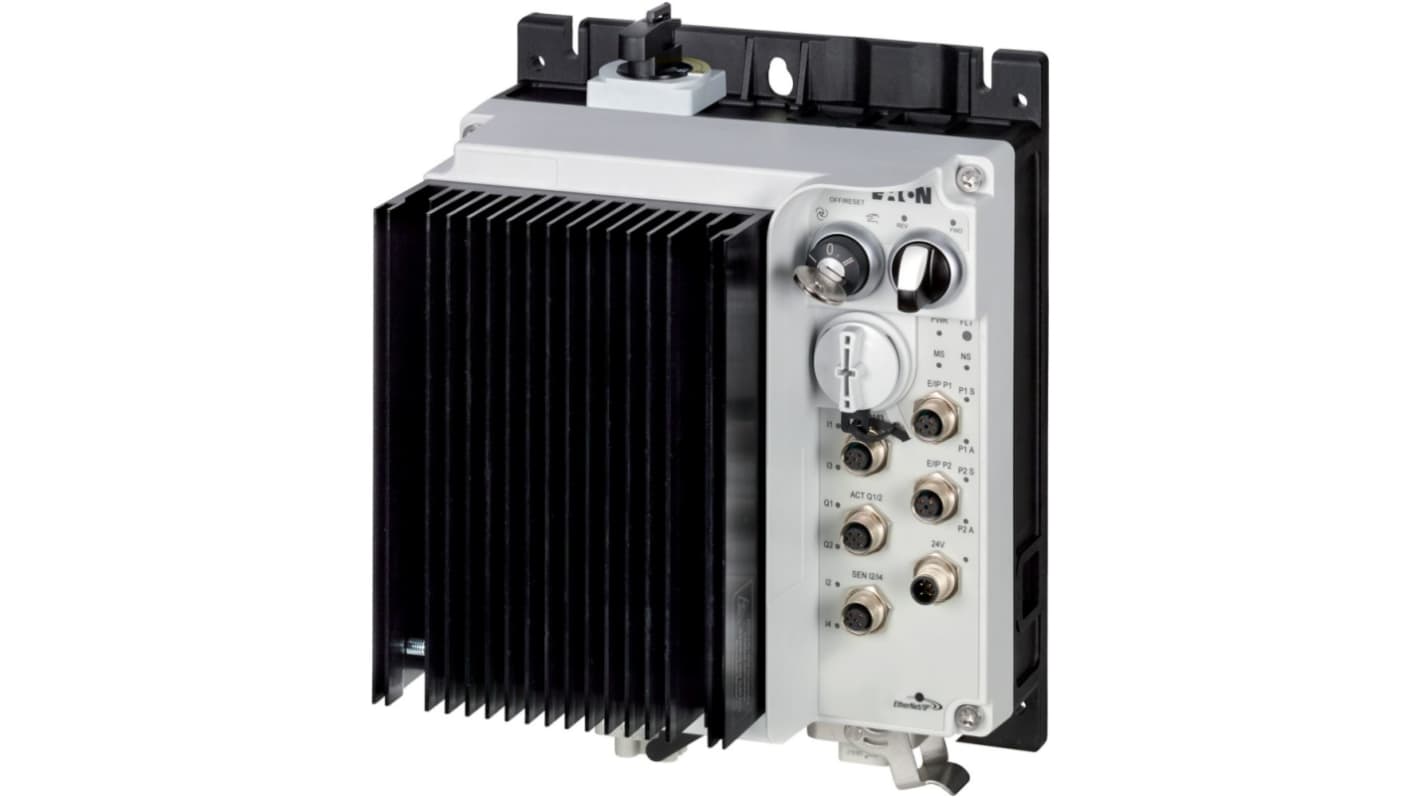

Eaton 1.5 kW Motor Controller, 400/480 V ac, 3 Phase, 4.3 A, Speed Controller Function
- RS 제품 번호:
- 252-366
- 제조사 부품 번호:
- 198887 RASP5-4424EIP-412R000S1
- 제조업체:
- Eaton
Subtotal (1 unit)*
₩3,390,880.80
일시적 품절
- 2026년 1월 26일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩3,390,880.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 252-366
- 제조사 부품 번호:
- 198887 RASP5-4424EIP-412R000S1
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Product Type | Motor Controller | |
| Number of Phases | 3 | |
| Control Function | Speed Controller | |
| Output Voltage | 480 V | |
| Supply Voltage | 400/480 V ac | |
| Current Rating | 4.3 A | |
| Power Rating | 1.5kW | |
| Overall Length | 270mm | |
| Overall Width | 220mm | |
| Overall Depth | 157 mm | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | UL Approval, CE, UL 61800-5-1, IEC/EN 61800-5-1 | |
| Series | Moeller | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Product Type Motor Controller | ||
Number of Phases 3 | ||
Control Function Speed Controller | ||
Output Voltage 480 V | ||
Supply Voltage 400/480 V ac | ||
Current Rating 4.3 A | ||
Power Rating 1.5kW | ||
Overall Length 270mm | ||
Overall Width 220mm | ||
Overall Depth 157 mm | ||
IP Rating IP65 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals UL Approval, CE, UL 61800-5-1, IEC/EN 61800-5-1 | ||
Series Moeller | ||
제외
- COO (Country of Origin):
- GB
The Eaton Speed controller combines efficiency and precision to elevate your motor control capabilities. Designed with robust features, it enhances the performance of synchronous reluctance and brushless DC motors for various industrial applications. The device excels in adjusting operational parameters seamlessly, enabling optimal motor management while ensuring compatibility with wider systems through its built-in Ethernet IP communication interface.
Built in diagnostics simplify troubleshooting and maintenance
Provides superior overload protection to safeguard against faults
Offers efficient heat dissipation optimising performance during prolonged use
Features a compact design making installation simple
Supports a range of operating conditions for diverse applications
