제조사부품번호

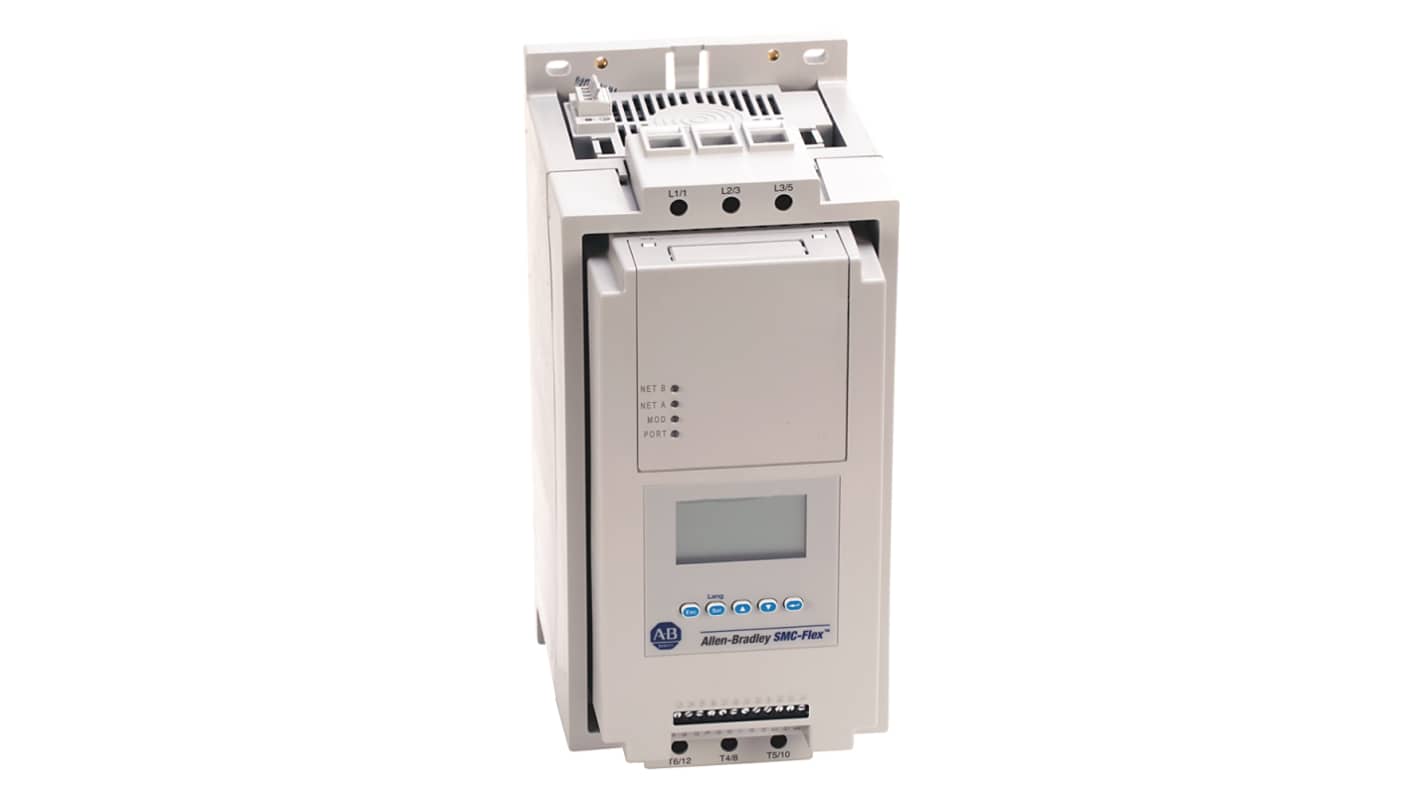

Allen Bradley 300 HP Motor Controller, 200V ac, 690 V ac, 3 Phase, 361A

RS 제품 번호:: 250-465
제조사 부품 번호:: 150-F361NZDD
제조업체:: Allen Bradley

Allen Bradley 300 HP Motor Controller, 200V ac, 690 V ac, 3 Phase, 361A

Subtotal (1 unit)*

₩14,470,244.10

현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

수량	한팩당
1 +	₩14,470,244.10

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 250-465
제조사 부품 번호:: 150-F361NZDD
제조업체:: Allen Bradley

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Allen Bradley
	Product Type	Motor Controller
	Number of Phases	3
	Supply Voltage	200, 690V ac
	Output Voltage	460V ac
	Current Rating	361A
	Power Rating	300HP
	IP Rating	IP2X
	Minimum Operating Temperature	-5°C
	Maximum Operating Temperature	50°C
	Standards/Approvals	UL 508, cULus Listed, CE, CCC, EN/IEC 60947-4-2, CSA, EN/IEC 60947-1

	모두 선택
	브랜드 Allen Bradley
	Product Type Motor Controller
	Number of Phases 3
	Supply Voltage 200, 690V ac
	Output Voltage 460V ac
	Current Rating 361A
	Power Rating 300HP
	IP Rating IP2X
	Minimum Operating Temperature -5°C
	Maximum Operating Temperature 50°C
	Standards/Approvals UL 508, cULus Listed, CE, CCC, EN/IEC 60947-4-2, CSA, EN/IEC 60947-1

Datasheet - 150-F361NZDD

COO (Country of Origin):: MX

The Allen Bradley SMC controllers are micro processor based soft starters that are designed to maximize the efficiency of motor starts and stops. SMC controllers are designed to operate 3 phase motors. They feature built in overload protection and use six silicon controlled rectifiers to vary the conduction period and control the voltage and thus, the torque to the motor during starting, running and stopping.

Modular for simplified installation and maintenance

Built in LCD and keypad or personal computer software setup

Integrated bypass

Nine start and stop modes and three slow speed modes

Full metering and diagnostics

Allen Bradley 300 HP Motor Controller, 200V ac, 690 V ac, 3 Phase, 361A
