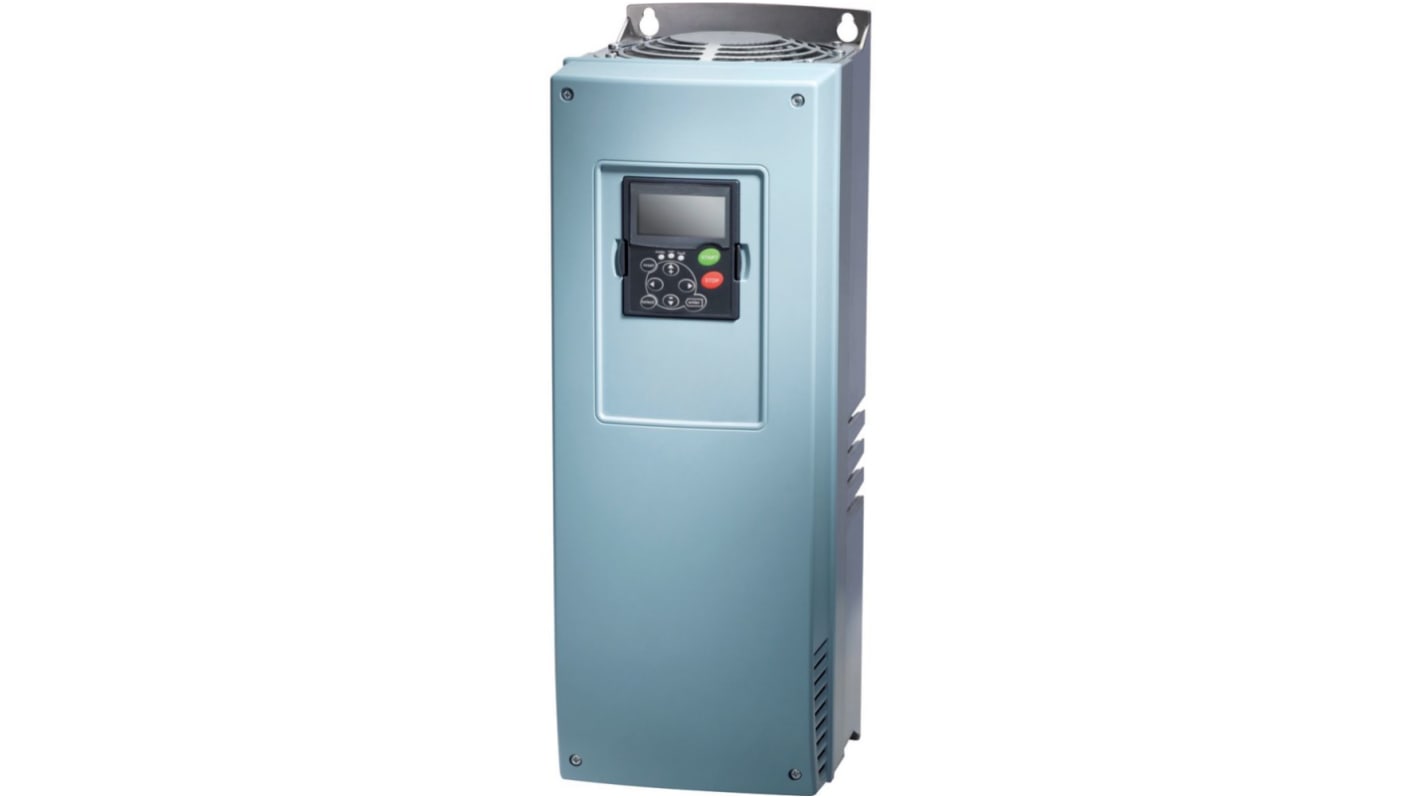

Eaton 7.5 kW Motor Controller, 690V ac, 3 Phase, 13.5A, PWM Function

RS 제품 번호:: 103-823
제조사 부품 번호:: 138642 SPX007A1-5A4B1
제조업체:: Eaton

Eaton 7.5 kW Motor Controller, 690V ac, 3 Phase, 13.5A, PWM Function

Subtotal (1 unit)*

₩7,185,909.90

제조사가 재고 비축중

2026년 7월 20일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩7,185,909.90

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 103-823
제조사 부품 번호:: 138642 SPX007A1-5A4B1
제조업체:: Eaton

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Eaton
	Product Type	Motor Controller
	Number of Phases	3
	Control Function	PWM
	Supply Voltage	690V ac
	Output Voltage	690V ac
	Current Rating	13.5A
	Power Rating	7.5kW
	Overall Length	558mm
	Overall Width	195mm
	Overall Depth	558mm
	IP Rating	IP21
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	50°C
	Standards/Approvals	IEC/EN 61800-2 CUL UL 508C Safety: EN 61800-5-1: 2003 RoHS, NMMS7. NMMS8 IEC/EN61800-3, NMMS2, IEC/EN61800-5, IEC/EN 61800-3 UL File No.: E134360 UL CE CSA Class No.: 3211-06 UL Category Control No.: NMMS, ISO 9001 DNV RCM CSA-C22.2 No. 14 UL

	모두 선택
	브랜드 Eaton
	Product Type Motor Controller
	Number of Phases 3
	Control Function PWM
	Supply Voltage 690V ac
	Output Voltage 690V ac
	Current Rating 13.5A
	Power Rating 7.5kW
	Overall Length 558mm
	Overall Width 195mm
	Overall Depth 558mm
	IP Rating IP21
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 50°C
	Standards/Approvals IEC/EN 61800-2 CUL UL 508C Safety: EN 61800-5-1: 2003 RoHS, NMMS7. NMMS8 IEC/EN61800-3, NMMS2, IEC/EN61800-5, IEC/EN 61800-3 UL File No.: E134360 UL CE CSA Class No.: 3211-06 UL Category Control No.: NMMS, ISO 9001 DNV RCM CSA-C22.2 No. 14 UL

Datasheet - 138642 SPX007A1-5A4B1

COO (Country of Origin):: FI

The Eaton Variable frequency drive operates at 600 V AC with a 3-phase input, capable of handling up to 7.5 kW of power. It features an IP21 rating for protection against solid objects and has integrated radio interference suppression filters and a brake chopper. The drive includes an OLED display for intuitive control and monitoring.

RoHS compliant

Climatic proofing

ISO 9001 and IEC/EN61800-5 certified

Electromagnetic compatibility according to EN 61800-3

Eaton 7.5 kW Motor Controller, 690V ac, 3 Phase, 13.5A, PWM Function
